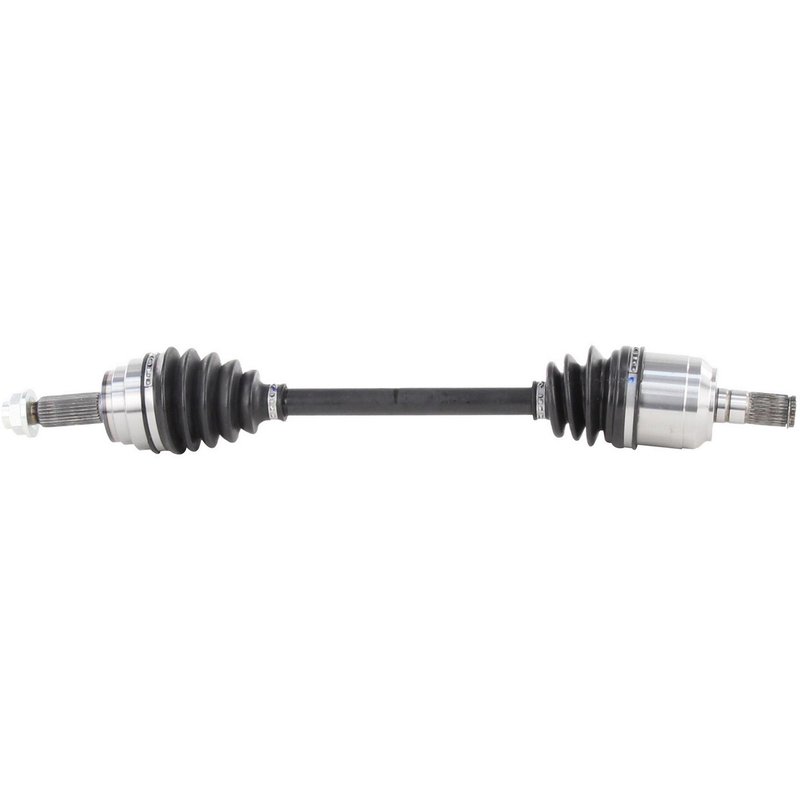

TrakMotive HY-8349 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8349

The TrakMotive CV Axle Shaft HY-8349 is designed specifically for Hyundai Elantra and Elantra GT models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction to maintain vehicle stability and smooth power transfer.

• Compatible with Hyundai Elantra and Elantra GT
• Includes axle nut with hex head and stake locking type
• Neoprene boot material for enhanced durability
• Inboard and outboard spline connection style
• Overall compressed length of 26.34 inches (669 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for direct fit and reliable operation. This line emphasizes precise spline counts and connection styles to ensure compatibility with specific vehicle drivetrains. The HY-8349 model features a male inboard joint with 27 splines and a conventional outboard joint also with 27 splines, designed to meet the exact specifications required by Hyundai Elantra and Elantra GT vehicles.

Technical Specifications and Features

The HY-8349 CV axle shaft includes a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut is included and features a hex head type measuring 1.26 inches (32 mm) across flats, with a height of 0.94 inches (24 mm) and a length of 1.45 inches (36.95 mm). The nut uses a stake locking type and has a thread size of M22*1.5, ensuring secure fastening. Both the inboard and outboard shaft connections utilize spline styles with 27 splines each, providing a secure and precise fit.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Hyundai Elantra and Elantra GT
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage or torn CV boots causing joint wear
• Fixes axle shaft failure due to corrosion or mechanical damage
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8349, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify spline alignment on both inboard and outboard connections for a secure fit. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Hyundai Elantra and Elantra GT models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8349 is a new, not remanufactured, component built to meet OEM standards for durability and performance. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability in driveline applications.
