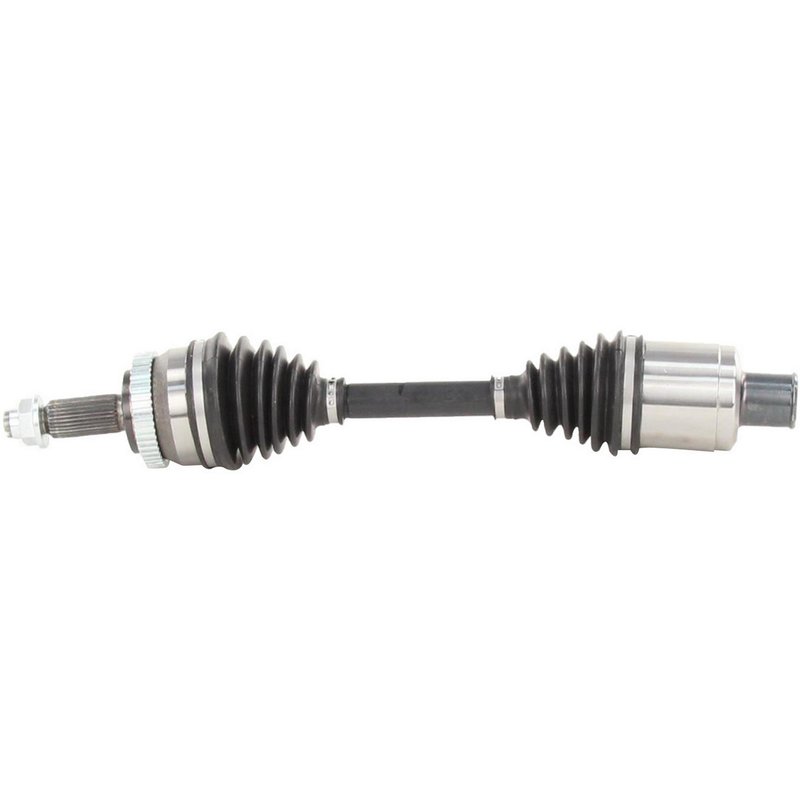

TrakMotive HY-8352 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8352 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.28 |
| Overall Compressed Length (mm) | 566 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
Cross-references TrakMotive HY-8352, 500B1100 and 49500B1100 for the same application. See all 4.
Overview
TrakMotive HY-8352 is a new AAR CV axle shaft built for the front left position on select Hyundai Genesis models. It uses a neoprene boot, spline connections, and an included axle nut to match the application details listed for this part.
Compatible With 2014-2016 Hyundai Genesis, front left. This Hyundai Genesis CV axle shaft is identified by part number HY-8352 and is built as an updated-design replacement for the listed application.
Key Features
- New CV axle shaft for driveline service
- Neoprene boot material for the axle assembly
- 48-tooth toothed ABS ring with tone ring included
- 27 inboard splines and 30 outboard splines
- Includes axle nut with M22 x 1.5 thread size
- Overall compressed length: 22.28 in. (566 mm)
Detailed Description
The TrakMotive HY-8352 CV axle shaft is engineered for the front left side of the 2014-2016 Hyundai Genesis. It features a conventional outboard joint, a female inboard joint, and spline-style shaft connections for the specified fitment. The ABS setup includes a toothed ring with 48 teeth and a tone ring, making this axle suitable for the listed non-ABS application note unless otherwise stated.
TrakMotive positions the AAR CV Axle Shaft line as a replacement solution for driveline repair work where the original axle has worn splines, joint noise, or boot damage. HY-8352 is the part number to reference when matching this application, and HY-8352 also cross-references 500B1100, 49500B1100, and NCV37139 for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration
- Grease loss from a damaged axle boot
- ABS signal issues related to axle ring wear
- Driveline noise from spline or joint wear
Installation Notes
Verify the front left fitment, spline count, compressed length, and axle nut specifications before installation. This axle includes an axle nut; confirm the M22 x 1.5 thread size and 32 mm hex size match the vehicle requirements. Follow the vehicle service procedure for axle removal and torque specifications.
Quality Assurance
TrakMotive lists this axle under its AAR CV Axle Shaft line and identifies the product as a new replacement part. The manufacturer states a limited lifetime warranty and notes ISO 9001:1007 and TS 16949:2009 certified company status.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Hyundai | Genesis | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Hyundai | Genesis | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Hyundai | Genesis | Front Left | Updated Design; AAR CV Axle Shaft |
