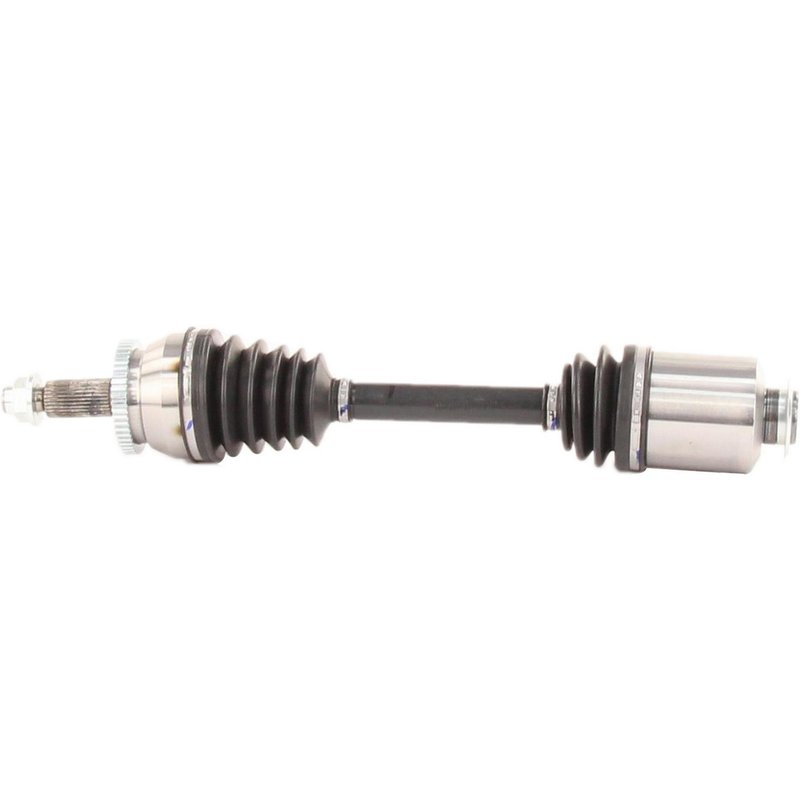

TrakMotive HY-8358 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8358 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | HEX |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.5 |
| Overall Compressed Length (mm) | 597 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
New CV axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Toothed ring helps support ABS-equipped applications.
OE-style fitment. Spline connections and included axle nut simplify installation.
Cross-references TrakMotive HY-8358, 495014Z680 and NCV37121 for the same application. See all 3.
Front Right CV Axle Shaft for Hyundai Santa Fe Sport
TrakMotive HY-8358 is a new front right CV axle shaft for the 2017-2018 Hyundai Santa Fe Sport. It is built for direct replacement service on updated-design applications and includes the axle nut and ABS tone ring details needed for the listed fitment.
Key Features
- Fits 2017-2018 Hyundai Santa Fe Sport, front right
- TrakMotive AAR CV Axle Shaft line
- New CV axle shaft for driveline repair
- Neoprene boot material for joint protection
- Inboard joint type: female
- Inboard shaft connection: spline, 28-2 inboard splines
- Outboard joint type: conventional with 30 outboard splines
- ABS tone ring included; 52-tooth toothed ring
- Axle nut included: M22 x 1.5, 32 mm hex, stake lock
- Overall compressed length: 23.5 in (597 mm)
Detailed Description
TrakMotive HY-8358 is engineered as a replacement CV axle shaft for the front right position on the 2017-2018 Hyundai Santa Fe Sport. This AAR CV Axle Shaft is a new unit with a neoprene boot, spline-style shaft connections, and an ABS tone ring included for the listed application. The axle nut is also included, with M22 x 1.5 thread size and a 32 mm hex head for service-ready installation on the correct vehicle configuration.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. TrakMotive HY-8358 is also referenced by OE-style part numbers 495014Z680 and NCV37121.
Common Repair Uses
- Restores driveline transfer when a worn axle shaft causes vibration or clicking
- Addresses torn boot or grease loss at the CV joint
- Replaces a damaged front right axle on a 2017-2018 Hyundai Santa Fe Sport
- Helps correct ABS-related concerns when the tone ring or sensor interface is compromised
- Supports repair after spline wear, joint noise, or axle shaft damage
Installation Notes and Tips
Verify front right fitment, spline count, axle nut thread size, and ABS ring configuration before installation. Confirm the vehicle uses the updated design noted for this application. Inspect hub, seals, and mating components during service, and torque the axle nut to the vehicle manufacturer specification.
Quality Assurance
TrakMotive lists HY-8358 as a new CV axle shaft backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Hyundai | Santa Fe Sport | AWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Hyundai | Santa Fe Sport | AWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
