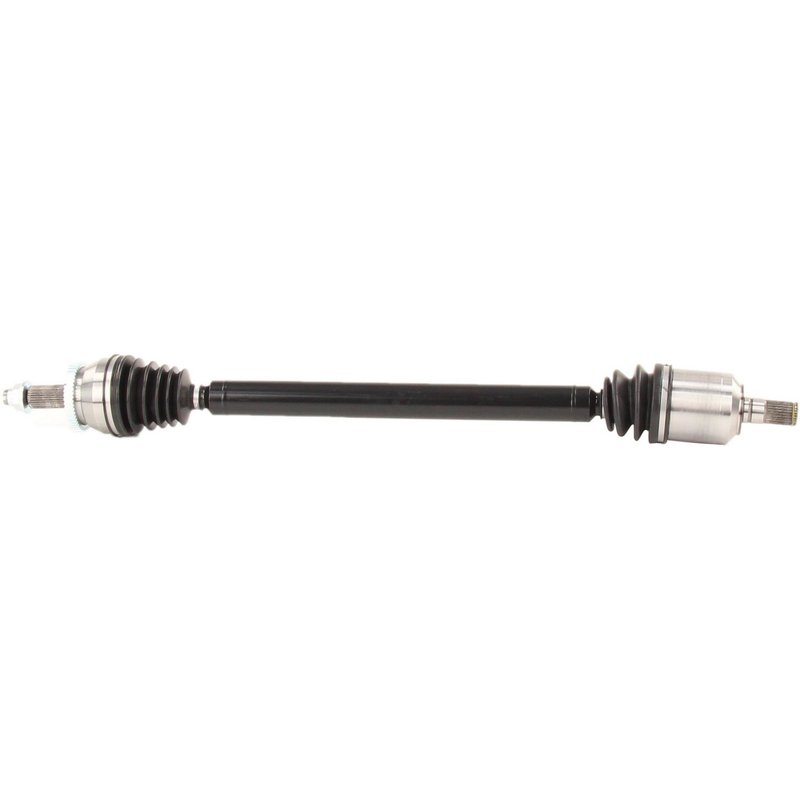

TrakMotive HY-8359 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive HY-8359 CV Axle Shaft - Front Right

Brand TrakMotive HY-8359
Position Front Right
Abs Ring Tooth Count 52
Abs Ring Type Toothed
Abs Tone Ring Included Yes
Axle Nut Head Type Hex
Axle Nut Height (in) 0.94
Axle Nut Height (mm) 24
Axle Nut Hex Size (in) 1.26
Axle Nut Hex Size (mm) 32
Axle Nut Included Yes
Axle Nut Length (in) 1.45
Axle Nut Length (mm) 36.95
Axle Nut Locking Type Stake
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Inboard Splines 28
Number Of Outboard Splines 30
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 38.619999999999997
Overall Compressed Length (mm) 981
Product line AAR CV Axle Shaft
Fits Hyundai and Kia · 5 vehicles

OE-style replacement. New CV axle shaft with spline connections for straightforward installation.

Neoprene boot material. Helps resist wear while keeping the joint protected.

ABS tone ring included. Toothed ring and axle nut are included for a complete assembly.

Cross-references TrakMotive HY-8359, 495004Z630 and NCV75102 for the same application. See all 3.

$183.50Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $183.50
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Front Right CV Axle Shaft for Hyundai and Kia

The TrakMotive AAR CV Axle Shaft HY-8359 is a new front right axle assembly for select Hyundai Santa Fe Sport and Kia Sorento applications. It is built with a neoprene boot, spline-style shaft connections, and an included axle nut for a direct replacement on the specified vehicles.

Key Features

  • Brand: TrakMotive AAR CV Axle Shaft
  • Part number: HY-8359
  • Fits 2017-2018 Hyundai Santa Fe Sport, front right
  • Fits 2016-2018 Kia Sorento, front right
  • New CV axle shaft with conventional outboard joint type
  • Male inboard joint with spline connection style
  • Neoprene boot material for driveline protection
  • ABS tone ring included with 52-tooth toothed ring
  • Axle nut included: M22 x 1.5, 32 mm hex, stake lock
  • Overall compressed length: 981 mm (38.62 in)

Product Details

The HY-8359 is part of TrakMotive’s AAR CV Axle Shaft line, a product line focused on replacement driveline components for specific vehicle applications. This axle is configured for front right use on the 2017-2018 Hyundai Santa Fe Sport and 2016-2018 Kia Sorento, with updated design notes for those applications. It includes the ABS tone ring and axle nut, and it is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Uses

  • Replacing a worn or noisy front right CV axle
  • Addressing vibration during acceleration
  • Correcting clicking or popping from the driveline during turns
  • Restoring proper axle engagement after spline or joint wear
  • Replacing a damaged boot, tone ring, or axle assembly on the listed vehicles

Installation Notes

Verify front right fitment by year, make, model, and drivetrain configuration before installation. Confirm axle spline counts, axle nut thread size, and ABS tone ring requirements against the original part. The included axle nut uses a 32 mm hex and stake-style locking design, so proper torque and staking procedures should be followed during installation.

Quality Assurance

TrakMotive lists this HY-8359 axle as a new replacement part backed by a limited lifetime warranty. The company also states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing quality system.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2018HyundaiSanta Fe SportFWD2.4LL4Front RightUpdated Design; AAR CV Axle Shaft
2018KiaSorentoFWD2.4LL4Front RightUpdated Design; AAR CV Axle Shaft
2017HyundaiSanta Fe SportFWD2.4LL4Front RightUpdated Design; AAR CV Axle Shaft
2017KiaSorentoFWD2.4LL4Front RightUpdated Design; AAR CV Axle Shaft
2016KiaSorentoFWD2.4LL4Front RightUpdated Design; AAR CV Axle Shaft
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — HY-8359495004Z630NCV75102
