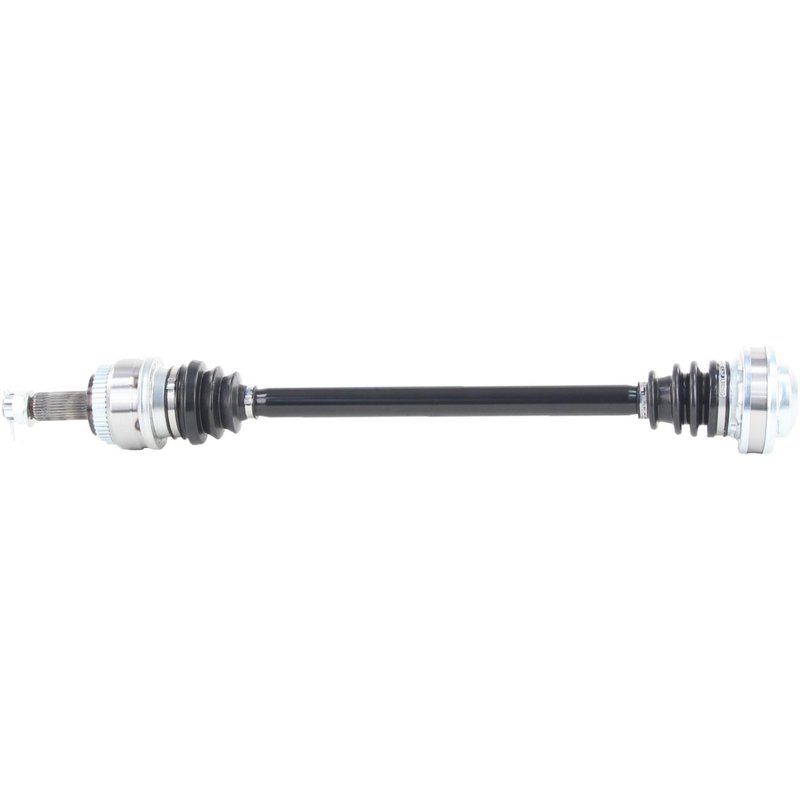

TrakMotive HY-8362 CV Axle Shaft - Rear Right
| Brand | TrakMotive HY-8362 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 47 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.76 |
| Overall Compressed Length (mm) | 756 |
| Overall Extended Length (in) | 32.68 |
| Overall Extended Length (mm) | 830 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
Bolt-on design. Simplifies installation with a direct-fit axle shaft layout.
Neoprene boots. Help protect the joints from dirt and moisture.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references TrakMotive HY-8362, 49601B1100 and 49601B1300 for the same application. See all 3.
Rear Right CV Axle Shaft for Genesis
TrakMotive HY-8362 is a premium CV axle shaft for the rear right position on 2015-2016 Hyundai Genesis models. It is built as an OEM-style axle to help maintain original ride quality while supporting dependable driveline operation.
TrakMotive CV Axle Shaft HY-8362 is engineered for direct replacement service on the Hyundai Genesis rear right application. It includes a 47-tooth toothed ABS ring with tone ring, a supplied axle nut, and neoprene boots at both joints for a service-ready driveline repair.
Key Features
- Fits 2015-2016 Hyundai Genesis, rear right
- OEM-style CV axle shaft for original ride quality retention
- Premium-grade construction for driveline service
- 47-tooth toothed ABS ring with ABS tone ring included
- Neoprene inboard and outboard joint boot material
- Inboard joint type: bolt-on
- Outboard joint type: conventional with spline connection
- Axle nut included, M22x1.5 thread, 32 mm socket size
- Overall compressed length: 756 mm; extended length: 830 mm
Detailed Description
TrakMotive HY-8362 is a CV axle shaft for the rear right side of the 2015-2016 Hyundai Genesis. It is built to match the OE-style axle layout used in this application, helping preserve factory ride characteristics and driveline fitment. The axle uses a bolt-on inboard joint, a conventional outboard joint, and a spline-style outboard shaft connection for direct replacement service. This part cross-references Hyundai OE numbers 49601B1100 and 49601B1300 for the same application.
The axle includes a toothed ABS ring with 47 teeth and an ABS tone ring, making it suitable for ABS-equipped service where specified. TrakMotive HY-8362 also features neoprene boot material at both joints, a supplied axle nut, and premium-grade construction. The part number HY-8362 is a direct fit reference for rear right driveline repair on the Hyundai Genesis.
Common Repair Uses
- Restores clicking or vibration caused by a worn CV axle shaft
- Addresses torn boots that can lead to grease loss and joint wear
- Replaces a damaged rear right axle on a 2015-2016 Hyundai Genesis
- Helps correct ABS-related driveline service needs when the tone ring is required
- Supports repair of axle play, noise, or binding in the rear driveline
Installation Notes and Tips
Verify rear right fitment before installation on the 2015-2016 Hyundai Genesis. Confirm axle nut thread size, socket size, and ABS ring requirements against the original part. Inspect hub, seal, and suspension components during replacement to help prevent repeat driveline noise or leakage. The axle nut is included, and the part uses a cotter-pin locking style.
Quality Assurance
TrakMotive identifies this axle as a premium CV axle shaft and states that its products are backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Hyundai | Genesis | RWD | 3.8L | V6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | Hyundai | Genesis | RWD | 3.8L | V6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
