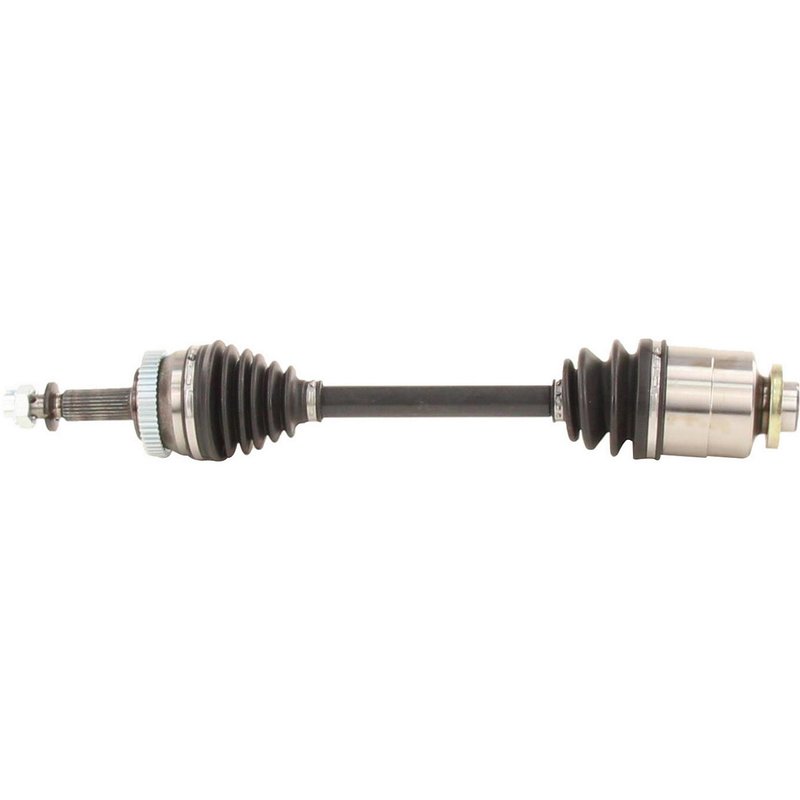

TrakMotive HY-8370 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Hyundai Tucson

The TrakMotive AAR CV Axle Shaft HY-8370 is engineered to provide dependable driveline performance for Hyundai Tucson models. Designed with precision, this new CV axle shaft ensures smooth power transfer and durability under various driving conditions.

Key Features of TrakMotive HY-8370 CV Axle Shaft

• ABS ring with 48 toothed teeth for accurate wheel speed sensing
• Includes ABS tone ring to maintain proper ABS function
• Hex head axle nut with cotter pin locking for secure installation
• Neoprene boot material for enhanced protection against contaminants
• Inboard female joint with spline connection for precise fitment
• Overall compressed length of 23.58 inches (599 mm) for exact replacement
• Compatible with Hyundai Tucson driveline specifications

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering quality CV components designed to meet or exceed OEM standards. This product line emphasizes durability and fitment accuracy, making it suitable for vehicles like the Hyundai Tucson that require reliable driveline parts. The HY-8370 model exemplifies this approach with its robust construction and attention to detail in joint and boot design.

Detailed Product Description

The TrakMotive HY-8370 CV Axle Shaft features a 48-tooth ABS ring with a toothed design, ensuring consistent ABS sensor readings. The included ABS tone ring supports the vehicle's anti-lock braking system functionality. The axle nut is a hex head type measuring 1.26 inches (32 mm) across flats, with a height of 0.87 inches (22 mm) and a length of 1.45 inches (37 mm). It uses an M22x1.5 thread size and locks securely with a cotter pin to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joint from dirt and moisture. The inboard joint is female with a spline connection style, featuring 26-2 splines, while the outboard joint is conventional with 27 splines, ensuring a precise fit and smooth power transfer. The overall compressed length of 23.58 inches (599 mm) matches Hyundai Tucson specifications for direct replacement.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Tucson models
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with cotter pin locking axle nut

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. The spline connections should engage smoothly without forcing to avoid damage.

Quality Assurance and Warranty

This TrakMotive AAR CV Axle Shaft HY-8370 is a new, not remanufactured, component built to meet OEM standards for fit and function. It undergoes quality control inspections to ensure reliability and durability. Warranty details are provided by the manufacturer and should be reviewed prior to installation.
