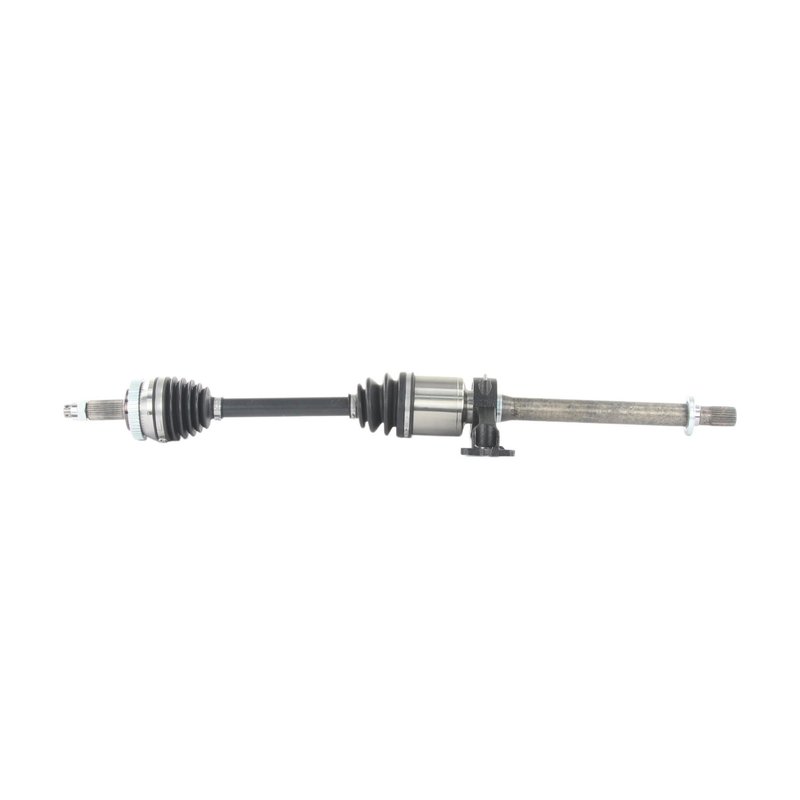

TrakMotive HY-86001 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Hyundai Azera

TrakMotive HY-86001 is a premium CV axle shaft for the front right position on 2010-2011 Hyundai Azera models. It is built for OE AAR design applications and includes ABS tone ring details matched to the listed fitment.

Key Features

• Fits 2010-2011 Hyundai Azera, front right
• TrakMotive AAR CV Axle Shaft, part number HY-86001
• Premium-grade driveline replacement for CV component service
• 47-tooth toothed ABS ring with ABS tone ring included
• Long-male inboard joint with spline connection
• Conventional outboard joint with spline connection
• Neoprene inboard boot material and thermoplastic outboard boot material
• Axle nut included with M22x1.5 thread, 32 mm hex/socket size, and cotter pin locking type
• Overall compressed length: 969 mm; overall extended length: 1026 mm

Product Details

This TrakMotive HY-86001 CV axle shaft is engineered for the front right side of the Hyundai Azera and follows the OE AAR design noted in the fitment data. It is a direct driveline replacement for vehicles needing a front right axle with a 28-spline inboard connection, 30-spline outboard connection, and ABS ring configuration with 47 teeth. TrakMotive HY-86001 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent production standards for driveline service work.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV axle
• Vibration or shudder during acceleration from driveline wear
• Grease leakage from damaged axle boots
• ABS warning concerns related to a damaged tone ring or axle sensor interface
• Excessive play or noise from a failing front right axle assembly

Installation Notes and Tips

Confirm the front right position, spline counts, axle nut thread size, and ABS ring style before installation. Inspect the hub, seals, and surrounding suspension components for wear, and replace any damaged hardware or retaining components as needed during axle service. Verify proper torque procedures for the axle nut and check ABS operation after installation.

Quality Assurance

TrakMotive lists this AAR CV axle shaft under a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that its facilities are ISO 9001:2008 and TS 16949:2009 certified.
