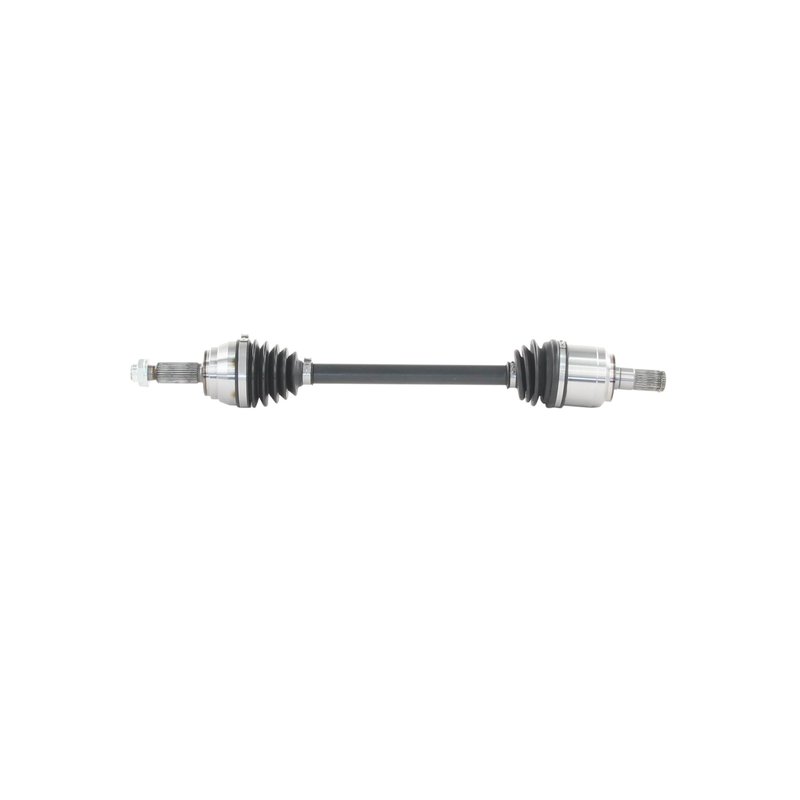

TrakMotive HY-86004 CV Axle Shaft - Front Left

TrakMotive HY-86004 CV Axle Shaft

The TrakMotive HY-86004 CV axle shaft is a premium driveline replacement for the front left position on select Hyundai Kona models. It is built for 2018-2020 Hyundai Kona applications and supports standard-duty replacement needs with OE-style fitment details.

Key Features

• Fits 2018-2020 Hyundai Kona, front left
• Premium-grade CV axle shaft for driveline repair
• 27 inboard splines and 27 outboard splines
• Male inboard joint with conventional outboard joint type
• Overall compressed length: 675 mm (26.56 in)
• Overall extended length: 716 mm (28.19 in)
• Axle nut thread size: M22x1.5
• 32 mm axle nut hex size and socket size
• No ABS tone ring included; ABS ring tooth count: 0

Product Details

TrakMotive CV Axle Shaft HY-86004 is engineered for the front left side of the Hyundai Kona across the 2018, 2019, and 2020 model years. The shaft uses a male inboard joint and a conventional outboard joint, with 27 splines at both ends for direct driveline engagement. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

The TrakMotive CV axle shaft line focuses on replacement driveline components for passenger vehicles, and this HY-86004 listing reflects that application-specific approach. It is a standard-duty replacement for Hyundai Kona front axle service where the original axle dimensions and spline counts match the vehicle requirements.

Common Repair Applications

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged front axle shaft
• Grease leakage from a torn CV boot and joint wear
• Driveline noise caused by spline or joint deterioration
• Front left axle replacement after impact or road damage

Installation Notes

Verify axle nut thread size, hex size, spline count, and compressed length before installation. This HY-86004 axle uses a 32 mm axle nut hex/socket size and an M22x1.5 thread specification. ABS axles fit non-ABS applications unless otherwise noted, and this part does not include an ABS tone ring.

Quality Assurance

TrakMotive identifies this CV axle shaft as a premium-grade replacement and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification for its quality management system.
