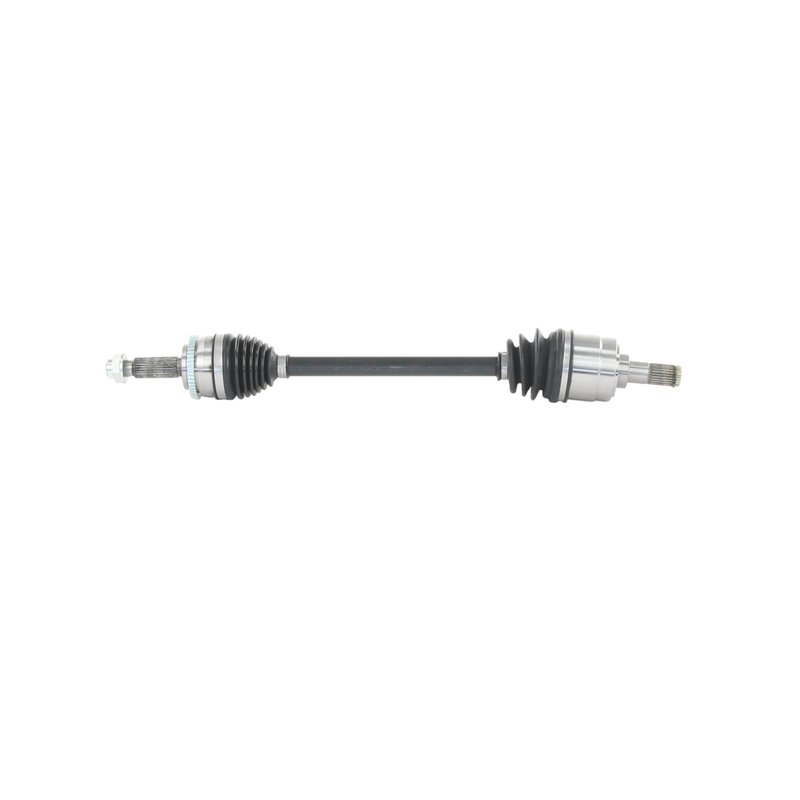

TrakMotive HY-86011 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86011 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26 |
| Overall Compressed Length (mm) | 661 |
| Overall Extended Length (in) | 27.44 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 4 vehicles |
Premium grade. Built with neoprene and thermoplastic boots for durable joint protection.
Spline connection. 25-spline inboard and outboard ends provide a secure shaft interface.
Axle nut included. Hex nut with stake locking and 32 mm socket size for easier service.
Cross-references TrakMotive HY-86011 for the same application. See all 1.
Front Left CV Axle Shaft for Hyundai and Kia
TrakMotive HY-86011 is a premium CV axle shaft for front left applications on select 2018-2019 Hyundai Accent and 2018-2019 Kia Rio models. It is built with 25 inboard splines and 25 outboard splines, plus a conventional outboard joint and a male inboard joint for direct driveline replacement.
Key Features
- Fits 2018-2019 Hyundai Accent, front left
- Fits 2018-2019 Kia Rio, front left
- Premium-grade CV axle shaft for standard duty replacement
- Overall compressed length: 26 in (661 mm)
- Overall extended length: 27.44 in (697 mm)
- Inboard joint boot material: neoprene
- Outboard joint boot material: thermoplastic
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type
Detailed Description
The TrakMotive CV Axle Shaft HY-86011 is specified for front left driveline service on the Hyundai Accent and Kia Rio in the listed model years. It uses spline-style shaft connections at both ends, with 25 splines on the inboard side and 25 splines on the outboard side, and it does not include an ABS tone ring. The axle nut is included and is sized for a 32 mm socket with M22x1.5 threads, which helps streamline parts matching during replacement. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores a worn or noisy front left CV axle assembly
- Addresses clicking during turns caused by joint wear
- Replaces a shaft with torn boots or grease loss
- Helps correct vibration from a damaged driveline component
- Supports repair after axle spline or joint deterioration
Installation Notes and Tips
Verify front left fitment by matching the vehicle year, make, model, and spline count before installation. Confirm axle nut thread size, hex size, and compressed length against the original part to ensure proper replacement. Inspect related hub, seal, and suspension components during service so the new axle can be installed on a clean, damage-free interface.
Quality Assurance
TrakMotive lists this as a premium CV axle shaft replacement for the specified Hyundai Accent and Kia Rio applications. Part number HY-86011 is the reference to use when confirming the correct front left axle for these vehicles.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Hyundai | Accent | Manual | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Rio | Manual | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Hyundai | Accent | Manual | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Kia | Rio | Manual | Front Left | Standard Duty Replacement; CV Axle Shaft |
