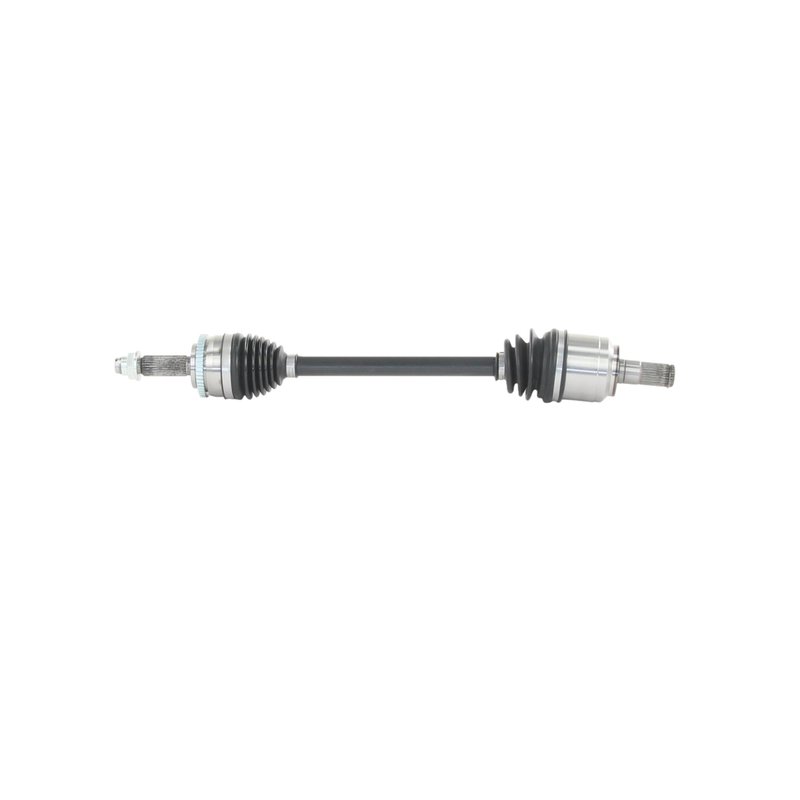

TrakMotive HY-86012 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86012 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.25 |
| Overall Compressed Length (mm) | 642 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 11 vehicles |
OE direct replacement. Premium CV axle shaft with included axle nut and tone ring.
Toothed ABS ring. Helps deliver reliable wheel speed signal performance.
Neoprene boot material. Built for durable inboard joint protection.
Cross-references TrakMotive HY-86012 and NCV37137 for the same application. See all 2.
CV Axle Shaft for Hyundai Accent and Kia Rio
TrakMotive HY-86012 is a premium CV axle shaft for front left applications on select Hyundai Accent and Kia Rio models. It is built with the correct spline counts, ABS tone ring, and axle nut specifications needed for a direct replacement on 2018-2020 vehicles.
Key Features
- Premium-grade CV axle shaft for driveline repair
- Fits 2018-2020 Hyundai Accent, front left
- Fits 2018-2020 Kia Rio, front left
- 48-tooth toothed ABS ring with ABS tone ring included
- Inboard joint: male design with spline connection
- Outboard joint: conventional type with spline connection
- Inboard splines: 27; outboard splines: 25
- Overall compressed length: 25.25 in. (642 mm); extended length: 26.875 in. (683 mm)
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type
Detailed Description
TrakMotive HY-86012 CV Axle Shaft is a direct-fit driveline replacement for the front left side of select Hyundai Accent and Kia Rio vehicles. The axle uses a 27-spline inboard connection and 25-spline outboard connection, along with a toothed 48-count ABS ring to support wheel speed sensor signal transfer on equipped applications. Neoprene inboard boot material and thermoplastic outboard boot material help complete the assembly with the correct OE-style configuration.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. TrakMotive HY-86012 is a practical choice when replacing a worn or noisy front axle on 2018-2020 Hyundai Accent or 2018-2020 Kia Rio models.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or imbalanced axle shaft
- Grease leakage from torn or deteriorated axle boots
- ABS warning concerns related to a damaged tone ring or sensor signal path
- Driveline noise from excessive spline or joint wear
Installation Notes and Tips
Verify front left fitment, spline count, axle nut thread size, and ABS ring configuration before installation. Use the included axle nut with the correct 32 mm socket size and stake-lock procedure during assembly. Confirm compressed and extended length measurements against the original axle to ensure proper suspension travel and driveline alignment.
Quality Assurance
TrakMotive HY-86012 is a premium CV axle shaft built to match the specified fitment and hardware requirements for the listed Hyundai Accent and Kia Rio applications.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Kia | Rio | Automatic CVT | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Hyundai | Accent | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Kia | Rio | Automatic CVT | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Hyundai | Accent | Automatic CVT | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Kia | Rio | Automatic CVT | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Hyundai | Accent | Automatic CVT | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Kia | Rio | Automatic CVT | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Hyundai | Accent | Automatic | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Rio | Automatic | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Hyundai | Accent | Automatic | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Kia | Rio | Automatic | Front Left | Standard Duty Replacement; CV Axle Shaft |
