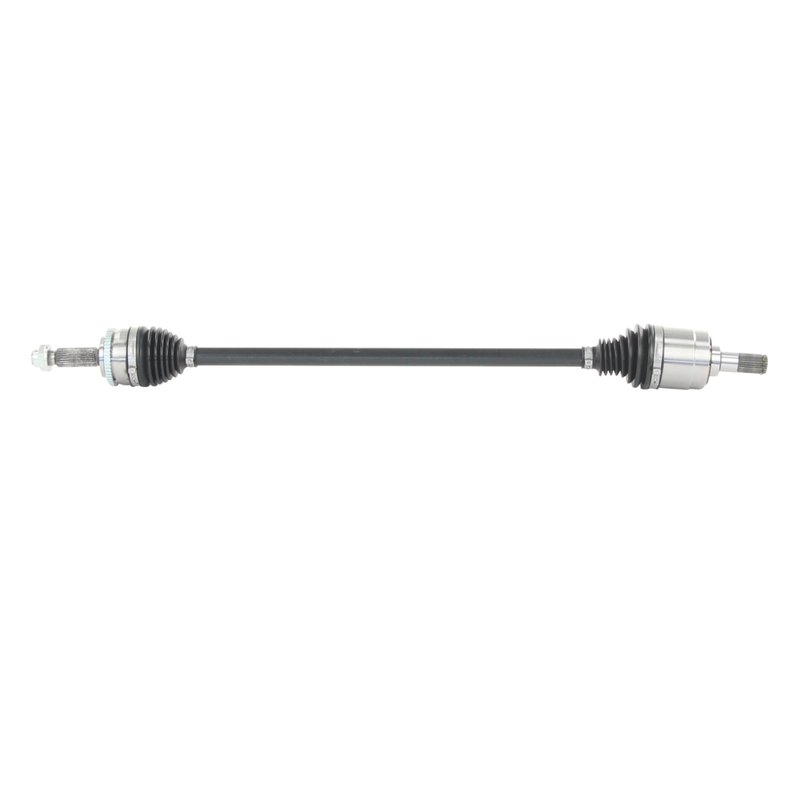

TrakMotive HY-86013 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86013 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 36.875 |
| Overall Compressed Length (mm) | 936 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 4 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Includes axle nut. Comes with a hex nut for a complete installation.
Cross-references TrakMotive HY-86013 and NCV37162 for the same application. See all 2.
Front Right CV Axle Shaft for Accent and Rio
TrakMotive HY-86013 is a premium CV axle shaft for front right applications on select 2018-2019 Hyundai Accent and 2018-2019 Kia Rio models. It is built with 25 inboard splines and 25 outboard splines, plus a 48-tooth toothed ABS tone ring for accurate wheel speed signal transfer.
Key Features
- Fits 2018-2019 Hyundai Accent, front right
- Fits 2018-2019 Kia Rio, front right
- Premium-grade CV axle shaft from TrakMotive
- ABS ring tooth count: 48, toothed ABS tone ring included
- Thermoplastic boots on both inboard and outboard joints
- Inboard joint type: male; outboard joint type: conventional
- 25-spline inboard and 25-spline outboard shaft connections
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 36.875 in; overall extended length: 38.625 in
Product Details
TrakMotive HY-86013 is a direct-fit CV axle shaft for front right driveline service on the Hyundai Accent and Kia Rio. The axle uses spline-style shaft connections, a male inboard joint, and a conventional outboard joint to match the listed applications. The included ABS tone ring supports wheel speed sensor input where equipped, while the supplied axle nut is specified with a 32 mm hex size and M22x1.5 thread.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from damaged CV boots
- ABS warning concerns related to a damaged tone ring or axle signal path
- Excessive drivetrain play from a worn front right axle assembly
Installation Notes and Tips
Verify front right fitment by year, make, model, and axle configuration before installation. Inspect the hub, seals, and surrounding suspension components for wear, and confirm spline engagement and axle nut thread match during assembly. Torque the axle nut to the vehicle manufacturer specification and stake it as required.
Quality Assurance
TrakMotive HY-86013 is a premium replacement CV axle shaft built for the listed Hyundai Accent and Kia Rio applications. Its specified spline counts, ABS tone ring, thermoplastic boot construction, and included axle nut support a precise service replacement for front right driveline repair.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Hyundai | Accent | Manual | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Rio | Manual | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Hyundai | Accent | Manual | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Kia | Rio | Manual | Front Right | Standard Duty Replacement; CV Axle Shaft |
