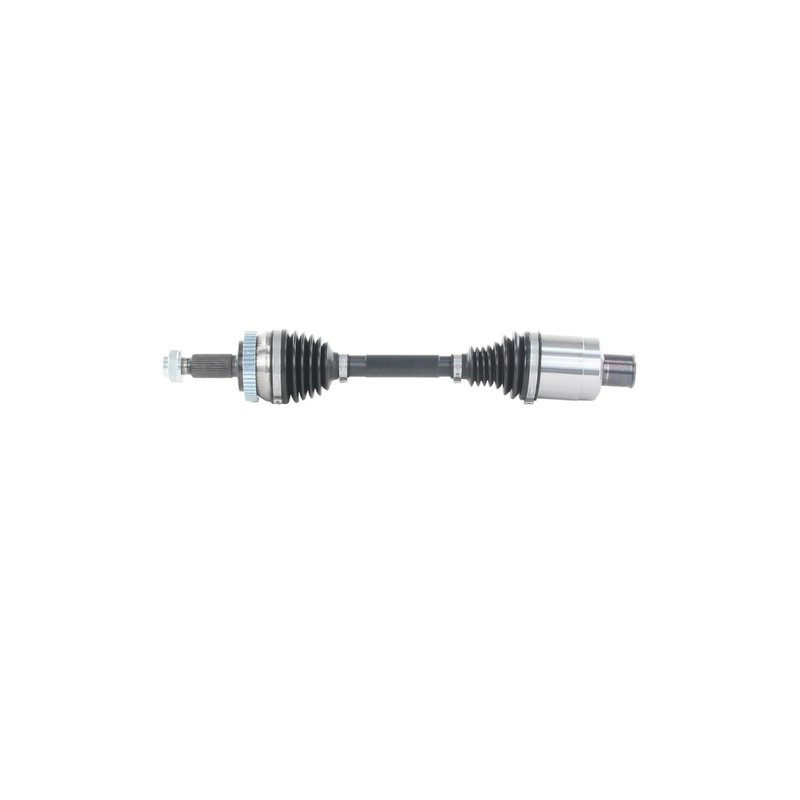

TrakMotive HY-86017 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86017 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.19 |
| Overall Compressed Length (mm) | 563 |
| Overall Extended Length (in) | 24.38 |
| Overall Extended Length (mm) | 619 |
| Product line | AAR CV Axle Shaft |
| Fits | Genesis and Kia · 8 vehicles |
AAR CV axle shaft. Built for driveline replacement service with a premium-grade construction.
ABS ring design. Uses a 48-tooth toothed ring for the listed applications.
Warranty backed. Includes a limited lifetime warranty from TrakMotive.
Cross-references TrakMotive HY-86017 for the same application. See all 1.
Overview
TrakMotive HY-86017 is an AAR CV axle shaft built for select front left applications. It is a direct driveline replacement for vehicles that use a 48-tooth toothed ABS ring and a 36 mm axle nut specification.
Compatible With Genesis G80, Genesis G90, and Kia K900 applications listed below, this CV axle shaft is built with thermoplastic boots and a conventional outboard joint for service-focused driveline repair.
Key Features
- Premium-grade CV axle shaft for driveline service
- 48-tooth toothed ABS ring design
- Thermoplastic inboard and outboard joint boot materials
- Female inboard joint and conventional outboard joint construction
- 36 mm axle nut hex size with M24x1.5 thread specification
- Overall compressed length of 563 mm and extended length of 619 mm
Detailed Description
TrakMotive HY-86017 is an AAR CV axle shaft engineered for specific front left fitments on the Genesis G80, Genesis G90, and Kia K900. The axle uses a 28-2T inboard spline count and a 30-spline outboard end, along with a toothed ABS ring that supports the listed applications. The part number HY-86017 identifies this exact configuration for buyers who need a replacement axle matched to the original driveline layout.
TrakMotive positions this AAR CV axle shaft within its premium replacement line, and the product is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, which reflects controlled production and quality management practices. This part cross-references TrakMotive HY-86017 for the same application.
What It Is Used For
- Replacing a worn or noisy CV axle assembly
- Restoring driveline transfer in front-wheel-drive service applications
- Addressing ABS-related axle ring configuration requirements
- Correcting vibration or clicking caused by axle joint wear
- Servicing vehicles that require the HY-86017 axle specification
Installation Notes and Tips
Fits 2018-2020 Genesis G80, front left. Fits 2017-2019 Genesis G90, front left. Fits 2019-2020 Kia K900, front left.
Before installation, inspect the intermediate shaft for damage and replace it if necessary, as noted by the manufacturer. Verify axle nut thread size, hex size, and overall length against the original part before assembly.
Quality Assurance
TrakMotive lists this AAR CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certification for its manufacturing system.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Genesis | G80 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Kia | K900 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Genesis | G80 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Genesis | G90 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Kia | K900 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Genesis | G80 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Genesis | G90 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2017 | Genesis | G90 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
