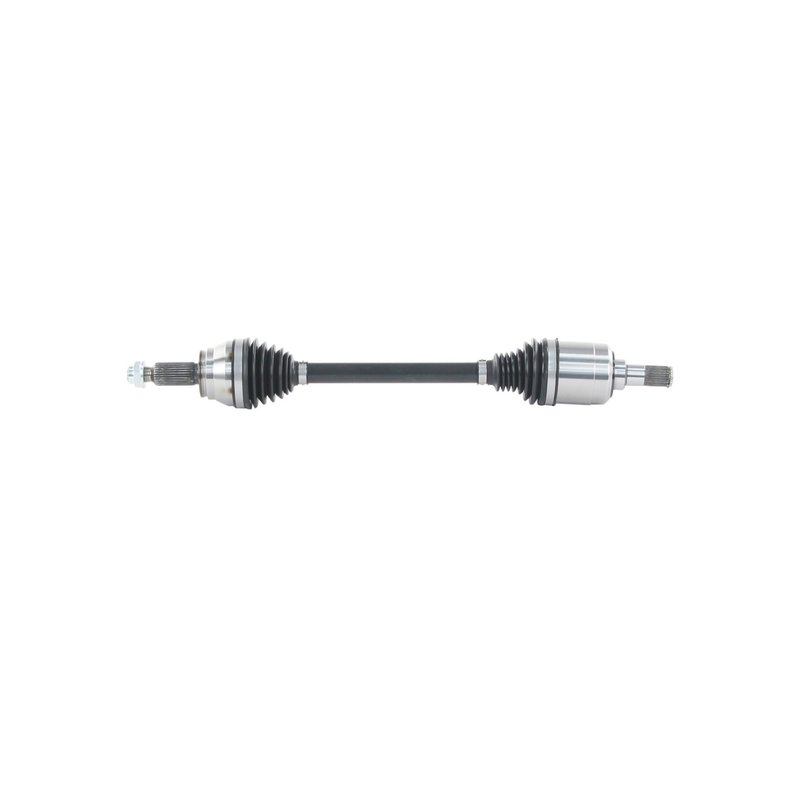

TrakMotive HY-86018 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86018 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.69 |
| Overall Compressed Length (mm) | 678 |
| Overall Extended Length (in) | 28.75 |
| Overall Extended Length (mm) | 730 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai and Kia · 10 vehicles |
OE-style replacement. AAR CV axle shaft for a direct-fit driveline repair.
Premium grade. Thermoplastic boots help protect the joints from wear.
ABS-ready design. Toothed ring supports ABS applications when equipped.
Cross-references TrakMotive HY-86018 and NCV37125 for the same application. See all 2.
OE AAR CV Axle Shaft for EV Front Left
TrakMotive HY-86018 is a premium CV axle shaft built for front left applications on select Hyundai and Kia electric vehicles. It follows an OE AAR design and is engineered for direct replacement service on the listed Kona Electric, Niro EV, and Soul EV fitments.
Key Features
- Part number: HY-86018
- Brand line: AAR CV Axle Shaft
- Front left CV axle shaft for EV driveline service
- OE AAR design for the listed applications
- Premium grade construction
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 27
- Outboard splines: 30
- ABS ring: 48-tooth toothed ring
- Thermoplastic boot material on inboard and outboard joints
- Overall compressed length: 678 mm (26.69 in)
- Overall extended length: 730 mm (28.75 in)
Product Details
The TrakMotive AAR CV Axle Shaft line is built for applications that require OE-style axle geometry and fitment accuracy. HY-86018 is specified for front left use on 2019-2023 Hyundai Kona Electric, 2019-2022 Kia Niro EV, and 2020 Kia Soul EV. It includes a 48-tooth toothed ABS ring configuration and uses a 32 mm axle nut hex/socket size with M22x1.5 thread specification. TrakMotive HY-86018 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.
This part cross-references Monroe Shocks & Struts (e.g., NCV37125) for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Axle shaft noise caused by internal wear
- ABS-related driveline service on the front left side
- Restoring OE-style axle fitment on Hyundai Kona Electric, Kia Niro EV, or Kia Soul EV
Installation Notes
Verify front left fitment, spline count, axle nut thread size, and overall axle length before installation. The axle nut is not included, so confirm the correct M22x1.5 nut and 32 mm socket size for service. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The product is supported by manufacturing standards from an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Hyundai | Kona Electric | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Hyundai | Kona Electric | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Kia | Niro EV | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Hyundai | Kona Electric | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Kia | Niro EV | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Hyundai | Kona Electric | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Kia | Niro EV | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Kia | Soul EV | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Hyundai | Kona Electric | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Kia | Niro EV | Front Left | OE AAR design; AAR CV Axle Shaft |
