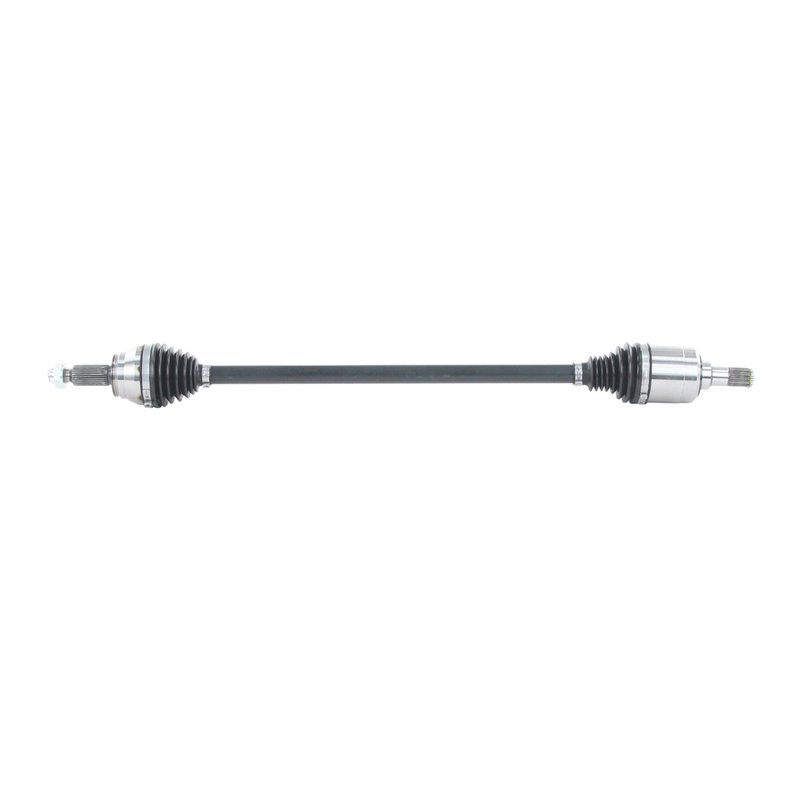

TrakMotive HY-86020 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86020 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.38 |
| Overall Compressed Length (mm) | 974 |
| Overall Extended Length (in) | 40.38 |
| Overall Extended Length (mm) | 1026 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai and Kia · 10 vehicles |
OE-style AAR design. Application-specific axle replacement for select electric driveline setups.
Thermoplastic boot material. Built with durable joint boot construction for the inboard and outboard ends.
Limited lifetime warranty. Backed by TrakMotive and supported by ISO 9001:2008 and TS 16949:2009 certification.
Cross-references TrakMotive HY-86020 and NCV37119 for the same application. See all 2.
Product Overview
TrakMotive HY-86020 is an AAR CV axle shaft built for electric vehicle applications that require the correct OE-style fit and spline configuration. It is listed for front right use on select Hyundai and Kia models, including the Hyundai Kona Electric, Kia Niro EV, and Kia Soul EV.
This CV axle shaft uses a conventional outboard joint, a male inboard joint, and thermoplastic boot materials. The axle is specified with 27 inboard splines, 30 outboard splines, and a 32 mm axle nut interface for accurate replacement matching.
- Fits 2019-2023 Hyundai Kona Electric, front right.
- Fits 2019-2022 Kia Niro EV, front right.
- Fits 2020 Kia Soul EV, front right.
- OE AAR design for application-specific driveline replacement.
- Premium grade construction with thermoplastic joint boots.
Key Features
- Part number HY-86020 for direct catalog matching.
- Conventional outboard joint and male inboard joint design.
- 27 inboard splines and 30 outboard splines.
- 32 mm axle nut hex size with M22x1.5 thread specification.
- ABS tone ring not included; ABS ring tooth count is 0.
Detailed Description
TrakMotive HY-86020 is an AAR CV axle shaft engineered for select Hyundai Kona Electric, Kia Niro EV, and Kia Soul EV applications. The fitment data identifies front right placement and OE AAR design notes, making this part a targeted replacement for vehicles that need the correct axle length, spline count, and joint configuration. Overall compressed length is 974 mm and overall extended length is 1026 mm, which helps confirm dimensional match during parts lookup.
The axle uses thermoplastic boot material on both joints, a conventional outboard joint, and a male inboard joint. It is specified without an ABS tone ring and without an axle nut, so the existing vehicle configuration should be verified against the listed attributes before installation. This part cross-references NCV37119 for the same application.
The HY-86020 is part of TrakMotive's AAR CV Axle Shaft line. The line is positioned around application-specific axle replacement with OE-style design notes and cataloged fitment for electric driveline applications. HY-86020 is a fitment-specific option for Hyundai Kona Electric and Kia Niro EV service work where the original axle geometry and spline count matter.
What It Is Used For
- Replacing a worn or damaged CV axle shaft.
- Restoring driveline connection when spline or joint wear is present.
- Addressing vibration or clicking caused by axle joint deterioration.
- Correcting fitment issues when the original axle length or joint type no longer matches.
Installation Notes and Tips
Confirm front right fitment, spline counts, axle nut thread size, and overall axle length before installation. This axle is listed without an ABS tone ring and without an axle nut, so compare the vehicle's original configuration to the product attributes. Verify the OE AAR design notes in the fitment data for the exact application before final assembly.
Quality Assurance
TrakMotive lists this axle with a limited lifetime warranty and states that the company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Hyundai | Kona Electric | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Hyundai | Kona Electric | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Kia | Niro EV | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Hyundai | Kona Electric | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Kia | Niro EV | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Hyundai | Kona Electric | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Kia | Niro EV | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Kia | Soul EV | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Hyundai | Kona Electric | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Kia | Niro EV | Front Right | OE AAR design; AAR CV Axle Shaft |
