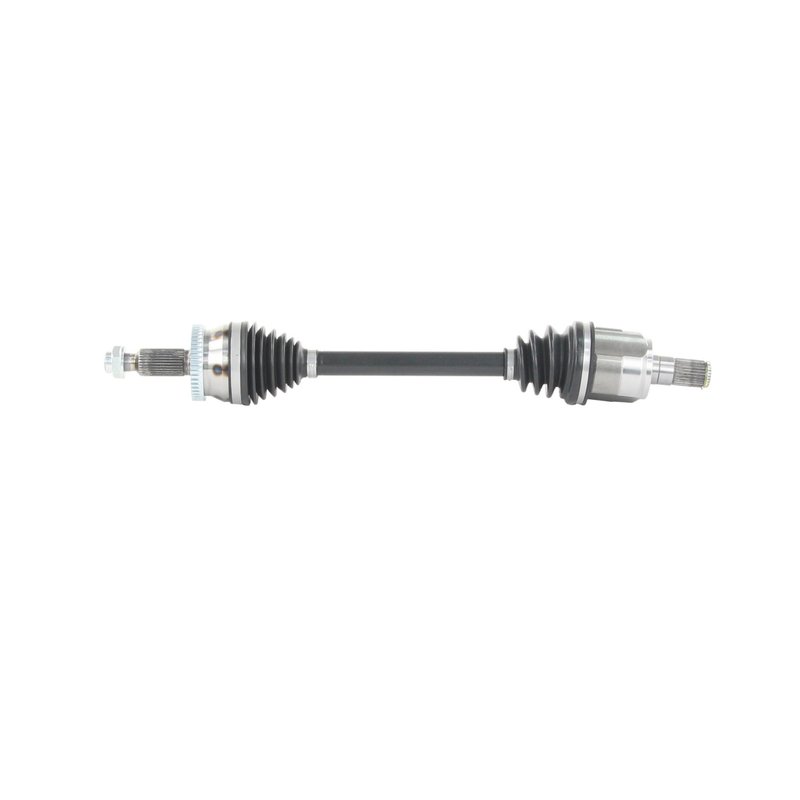

TrakMotive HY-86023 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86023 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.25 |
| Overall Compressed Length (mm) | 641 |
| Overall Extended Length (in) | 26.94 |
| Overall Extended Length (mm) | 625 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 5 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Toothed ring supports ABS applications when equipped.
Certified manufacturing. Made by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive HY-86023 and NCV37188 for the same application. See all 2.
CV Axle Shaft for Hyundai and Kia Front Left Applications
TrakMotive HY-86023 is a premium CV axle shaft built for specific front left driveline applications on the Hyundai Sonata and Kia Optima. It is engineered with the correct spline counts, ABS ring details, and axle dimensions needed for a direct replacement on listed vehicles.
This CV axle shaft is part of TrakMotive’s CV Axle Shaft line, focused on replacement driveline components for passenger vehicles that require accurate fitment and OE-style geometry.
Key Features
- Front left CV axle shaft for listed Hyundai Sonata and Kia Optima applications
- Premium grade replacement for driveline and axle service
- Inboard male joint design with 28 inboard splines
- Outboard conventional joint design with 30 outboard splines
- 48-tooth toothed ABS ring configuration
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
- Overall compressed length: 641 mm; overall extended length: 625 mm
- Interchange reference: Monroe Shocks & Struts 172286
Detailed Description
TrakMotive HY-86023 is a front left CV axle shaft for 2019-2020 Kia Optima, 2017-2018 Kia Optima plug-in hybrid models with VIN D, and 2016 Hyundai Sonata standard duty replacement applications. Use this part when you need a replacement axle shaft with the correct ABS ring tooth count, spline configuration, and joint style for the specified vehicle and position. Search terms such as 2019 Kia Optima front left CV axle shaft, 2017 Kia Optima plug-in hybrid front left axle, and 2016 Hyundai Sonata front left CV axle replacement all point to this application.
HY-86023 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, and the product line is backed by a limited lifetime warranty. The axle is listed without an included axle nut, so confirm your existing hardware and vehicle specifications before installation. This part number, HY-86023, is also referenced for the same application under Monroe Shocks & Struts 172286.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV axle
- Vibration or shudder from a damaged axle shaft
- ABS-related drivability concerns tied to a worn tone ring setup
- Axle play caused by worn splines or joint wear
- Front left driveline noise on Hyundai Sonata or Kia Optima applications
Installation Notes and Tips
Verify the vehicle’s year, make, model, position, and VIN details before ordering, especially for 2017-2018 Kia Optima plug-in hybrid and 2019-2020 Korea-built Optima applications. Confirm axle nut thread size M22x1.5 and 32 mm hex size during service, and compare the ABS ring tooth count and spline counts to the original axle before installation. HY-86023 is a direct-fit replacement for the listed front left applications only.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certification standards. HY-86023 includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Kia | Optima | 2.0L | L4 | — | Front Left | Korea built (VIN K, 1st digit); CV Axle Shaft |
| 2019 | Kia | Optima | 2.0L | L4 | — | Front Left | Korea built (VIN K, 1st digit); CV Axle Shaft |
| 2018 | Kia | Optima | — | — | PLUG-IN HYBRID EV-GAS (PHEV) | Front Left | VIN D (8th digit, plug-in hybrid); CV Axle Shaft |
| 2017 | Kia | Optima | — | — | PLUG-IN HYBRID EV-GAS (PHEV) | Front Left | VIN D (8th digit, plug-in hybrid); CV Axle Shaft |
| 2016 | Hyundai | Sonata | — | — | PLUG-IN HYBRID EV-GAS (PHEV) | Front Left | Standard Duty Replacement; CV Axle Shaft |
