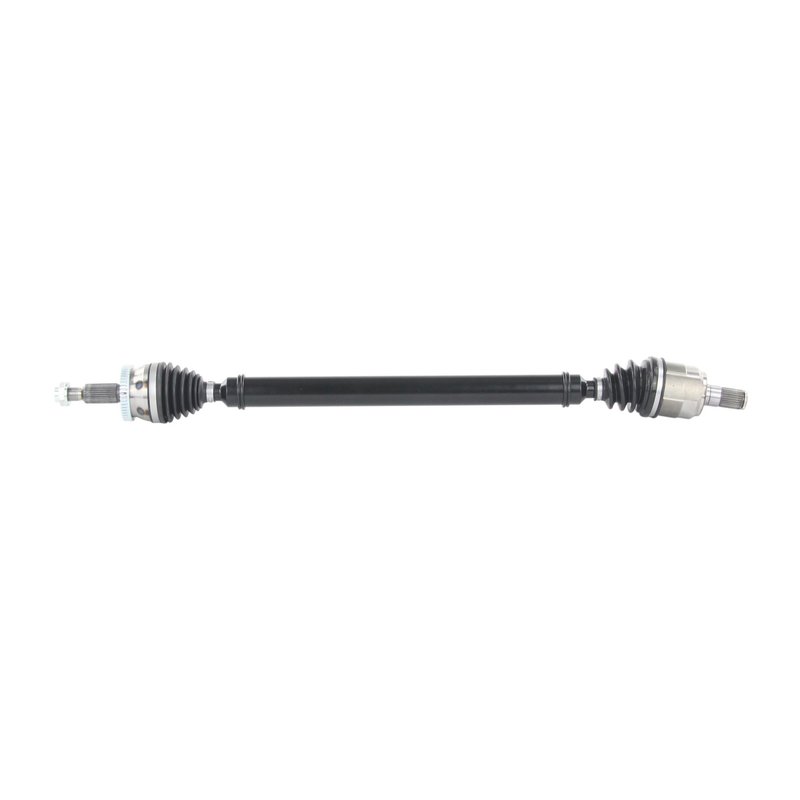

TrakMotive HY-86025 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86025 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 39.5 |
| Overall Compressed Length (mm) | 1004 |
| Overall Extended Length (in) | 41.25 |
| Overall Extended Length (mm) | 1048 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 4 vehicles |
CV axle shaft. Premium-grade replacement for dependable driveline performance.
ABS-ready design. Toothed ring supports ABS-equipped applications when specified.
Certified quality. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive HY-86025 for the same application. See all 1.
CV Axle Shaft for Hyundai Sonata Front Right
TrakMotive HY-86025 is a premium CV axle shaft for the front right position on select 2016-2019 Hyundai Sonata models. It is built for standard-duty replacement service and matches the application-specific spline, length, and ABS ring details needed for a direct driveline repair.
For Hyundai Sonata front right axle replacement, HY-86025 provides the fitment and component layout needed to restore smooth power transfer from the transaxle to the wheel hub. This TrakMotive CV axle shaft is a practical choice when addressing vibration, clicking, or driveline wear on the front right side.
- Fits 2016-2019 Hyundai Sonata, front right
- Premium-grade CV axle shaft for driveline and axle service
- Inboard joint type: male
- Outboard joint type: conventional
- 28 inboard splines and 30 outboard splines
- ABS ring: 48-tooth toothed design
- Overall compressed length: 39.5 in (1004 mm)
- Overall extended length: 41.25 in (1048 mm)
- Axle nut thread size: M22x1.5 with 32 mm hex size
Detailed Application Notes
HY-86025 is a TrakMotive CV axle shaft for the front right side of the Hyundai Sonata, covering 2016, 2017, 2018, and 2019 model years. The shaft uses a male inboard joint and a conventional outboard joint, with a 48-tooth ABS ring and no ABS tone ring included. The axle nut is not included, so the existing hardware or a separately sourced nut must be verified against the M22x1.5 thread and 32 mm hex specification. This part cross-references TrakMotive HY-86025 for the same application.
What This Axle Shaft Helps Address
- Front right axle noise during acceleration or turning
- Clicking or popping from a worn CV joint
- Vibration caused by a damaged or worn axle shaft
- ABS signal issues related to a worn toothed ring
- Driveline wear on a Hyundai Sonata front axle assembly
Installation Notes and Tips
Confirm front right fitment by matching the vehicle year, model, and axle specifications before installation. Verify spline counts, compressed and extended length, axle nut thread size, and ABS ring tooth count against the original part. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or premature wear.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing and quality control for driveline replacement parts.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Hyundai | Sonata | 2.0L | L4 | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Hyundai | Sonata | 2.0L | L4 | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Hyundai | Sonata | 2.0L | L4 | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Hyundai | Sonata | 2.0L | L4 | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
