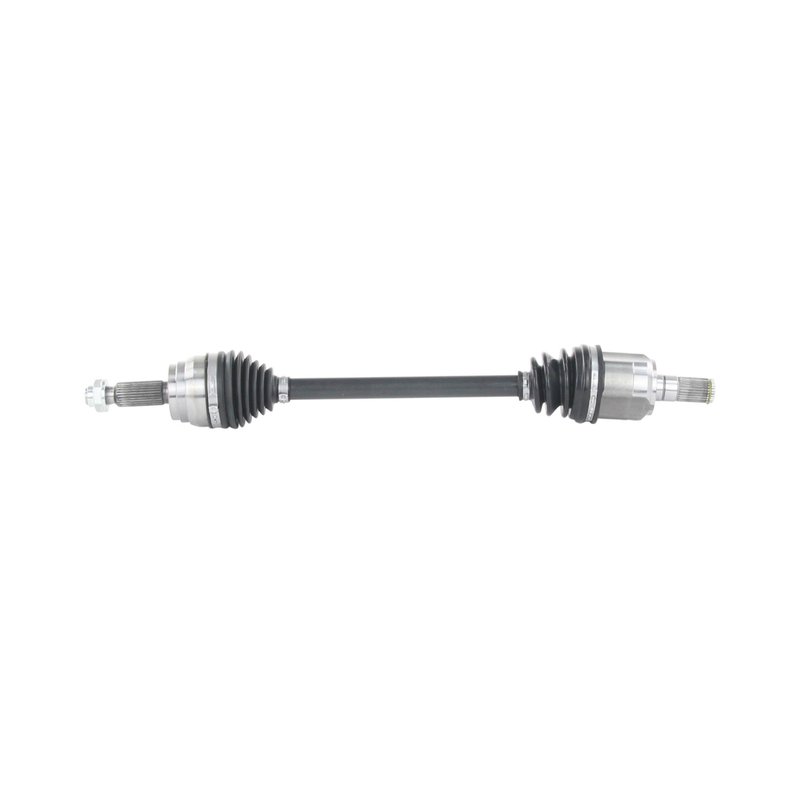

TrakMotive HY-86031 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86031 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.38 |
| Overall Compressed Length (mm) | 670 |
| Overall Extended Length (in) | 28 |
| Overall Extended Length (mm) | 177 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 7 vehicles |
CV axle shaft. Premium replacement for driveline and axle applications.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
ISO certified. Built by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive HY-86031 and NCV37101 for the same application. See all 2.
CV Axle Shaft for Hyundai Front Left Applications
TrakMotive HY-86031 is a premium CV axle shaft for front left driveline service on select Hyundai applications. It is built with 27 splines at the inboard and outboard ends, a male inboard joint, and a conventional outboard joint for direct replacement use.
This CV axle shaft is listed for 2019-2021 Hyundai Veloster, front left; 2019-2020 Hyundai Elantra, front left; and 2017-2018 Hyundai Elantra, front left. It is a fitment-specific replacement for Hyundai Elantra and Hyundai Veloster driveline repair work.
Key Features
- TrakMotive CV Axle Shaft, part number HY-86031
- Front left position for select Hyundai models
- 27 inboard splines and 27 outboard splines
- Male inboard joint with conventional outboard joint
- No ABS tone ring included; 0 ABS ring tooth count
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
- Overall compressed length: 670 mm (26.38 in)
- Overall extended length: 177 mm (28 in)
Product Details
HY-86031 is part of TrakMotive’s CV Axle Shaft line, a driveline replacement category focused on direct-fit axle service. This axle is engineered for non-ABS applications unless otherwise noted and is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. For shoppers searching for a Hyundai Elantra front left CV axle shaft or a Hyundai Veloster front left axle replacement, HY-86031 provides the fitment and spline configuration needed for the listed vehicles.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged axle boot assembly
- Driveline noise caused by excessive axle play
- Front left axle failure on listed Hyundai Elantra and Veloster models
Installation Notes
Verify axle nut thread size, spline count, and overall length before installation. Confirm whether the vehicle uses ABS hardware, since this axle does not include an ABS tone ring. Always inspect seals, hub condition, and related suspension components during replacement.
Quality Assurance
TrakMotive HY-86031 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company and carries a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Hyundai | Veloster | Automatic | — | — | Front Left | Korea Built; CV Axle Shaft |
| 2020 | Hyundai | Elantra | Automatic CVT | 2.0L | L4 | Front Left | Thru 2/12/19; CV Axle Shaft |
| 2020 | Hyundai | Veloster | Automatic | — | — | Front Left | Korea Built; CV Axle Shaft |
| 2019 | Hyundai | Elantra | Automatic | 2.0L | L4 | Front Left | Thru 2/12/19; CV Axle Shaft |
| 2019 | Hyundai | Veloster | Automatic | — | — | Front Left | Korea Built; CV Axle Shaft |
| 2018 | Hyundai | Elantra | Automatic | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Hyundai | Elantra | Automatic | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
