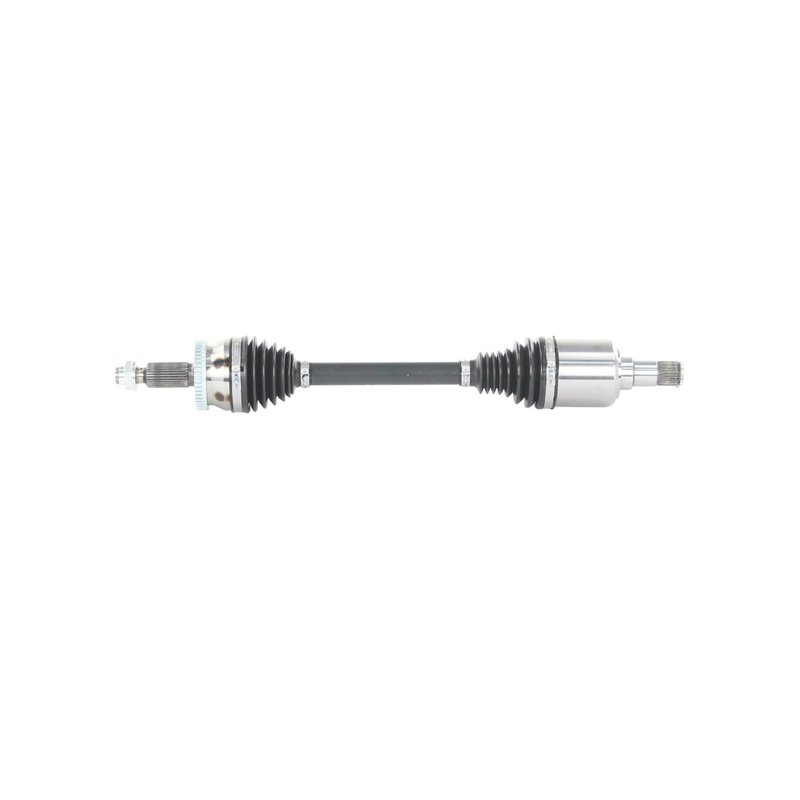

TrakMotive HY-86033 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86033 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.19 |
| Overall Compressed Length (mm) | 639 |
| Overall Extended Length (in) | 27.31 |
| Overall Extended Length (mm) | 695 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 4 vehicles |
AAR CV axle shaft. Premium driveline replacement for dependable power transfer.
ABS-ready design. Toothed ring supports applications that use wheel-speed sensing.
ISO certified. Built by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive HY-86033 for the same application. See all 1.
Front Left CV Axle Shaft for Hyundai Veloster N
TrakMotive HY-86033 is a premium CV axle shaft for the front left position on select 2019-2022 Hyundai Veloster N models. Built as an OE AAR design replacement, it supports smooth driveline transfer and precise fitment for this application.
Key Features
- Fits 2019-2022 Hyundai Veloster N, front left
- OE AAR design for the specified application
- Premium-grade CV axle shaft construction
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 28; outboard splines: 30
- ABS ring: 48-tooth toothed ring
- Overall compressed length: 25.19 in. (639 mm)
- Overall extended length: 27.31 in. (695 mm)
- Axle nut thread size: M22x1.5; hex size: 32 mm
Product Details
This TrakMotive AAR CV Axle Shaft, part number HY-86033, is engineered for the front left side of the 2019-2022 Hyundai Veloster N. It uses a male inboard joint and a conventional outboard joint, with 28 inboard splines and 30 outboard splines for the listed fitment. The axle also includes a 48-tooth toothed ABS ring configuration, while the ABS tone ring is not included. TrakMotive HY-86033 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, and the product line is backed by a limited lifetime warranty.
This part cross-references TrakMotive HY-86033 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot or joint
- Noise from a worn front left driveline assembly
- Restoring proper axle function on a Hyundai Veloster N
Installation Notes
Verify axle nut thread size, spline count, and ABS ring configuration before installation. The axle nut is not included, and the ABS tone ring is not included. Confirm front left placement and compare overall compressed and extended lengths to the original axle before assembly. Professional installation and final torque checks are recommended for proper driveline operation.
Quality Assurance
TrakMotive manufactures this AAR CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. HY-86033 includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Hyundai | Veloster N | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Hyundai | Veloster N | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Hyundai | Veloster N | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Hyundai | Veloster N | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
