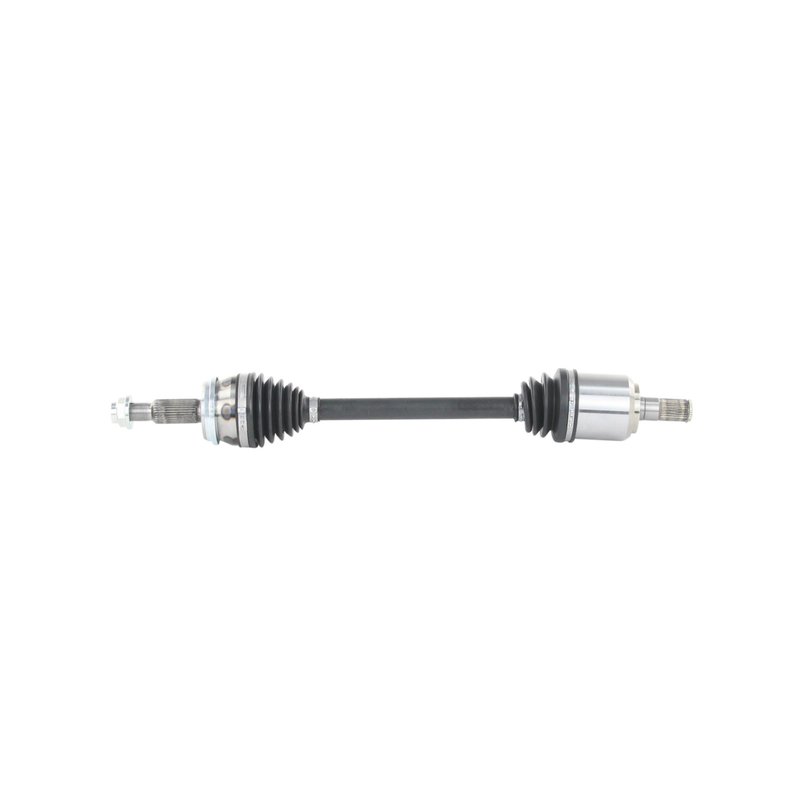

TrakMotive HY-86034 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86034 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .9 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.63 |
| Overall Compressed Length (mm) | 677 |
| Overall Extended Length (in) | 28.69 |
| Overall Extended Length (mm) | 729 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
AAR CV axle shaft. Premium driveline replacement for dependable power transfer.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
ISO certified manufacturing. Built by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive HY-86034 and NCV37170 for the same application. See all 2.
Front Left CV Axle Shaft for Hyundai Santa Fe
TrakMotive HY-86034 is a premium CV axle shaft for the front left position on 2019-2020 Hyundai Santa Fe models. It is built for OE AAR design applications and supports smooth driveline operation in non-ABS setups, unless otherwise noted.
Key Features
- Fits 2019-2020 Hyundai Santa Fe, front left
- OE AAR design replacement for the specified application
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: male
- Outboard joint type: conventional
- 27 inboard splines and 30 outboard splines
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M24x1.5 with 32 mm hex size
- Overall compressed length: 677 mm; extended length: 729 mm
Product Details
This TrakMotive AAR CV Axle Shaft, part number HY-86034, is engineered for the front left side of the Hyundai Santa Fe in 2019 and 2020. The AAR CV axle shaft design matches the OE-style layout for this application, with a male inboard joint and conventional outboard joint construction. TrakMotive HY-86034 is also cross-referenced to Monroe Shocks & Struts NCV37170 for the same application.
TrakMotive positions this axle shaft within its AAR CV Axle Shaft line, a product line focused on direct-fit driveline replacement parts for specific vehicle applications. For buyers searching for a 2019-2020 Hyundai Santa Fe front left CV axle shaft or a TrakMotive HY-86034 replacement axle, this part provides the fitment and dimensional details needed for a targeted repair.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage around the axle boot area
- Excessive driveline play or noise from the front axle
- Loss of smooth power transfer to the front left wheel
Installation Notes
Verify axle nut thread size, spline count, and overall length before installation. This axle does not include an axle nut, and no ABS tone ring is included. Confirm the vehicle’s front left application and OE AAR design requirements before replacing the original shaft.
Quality Assurance
TrakMotive states that this part is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices for driveline components.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Hyundai | Santa Fe | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Hyundai | Santa Fe | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
