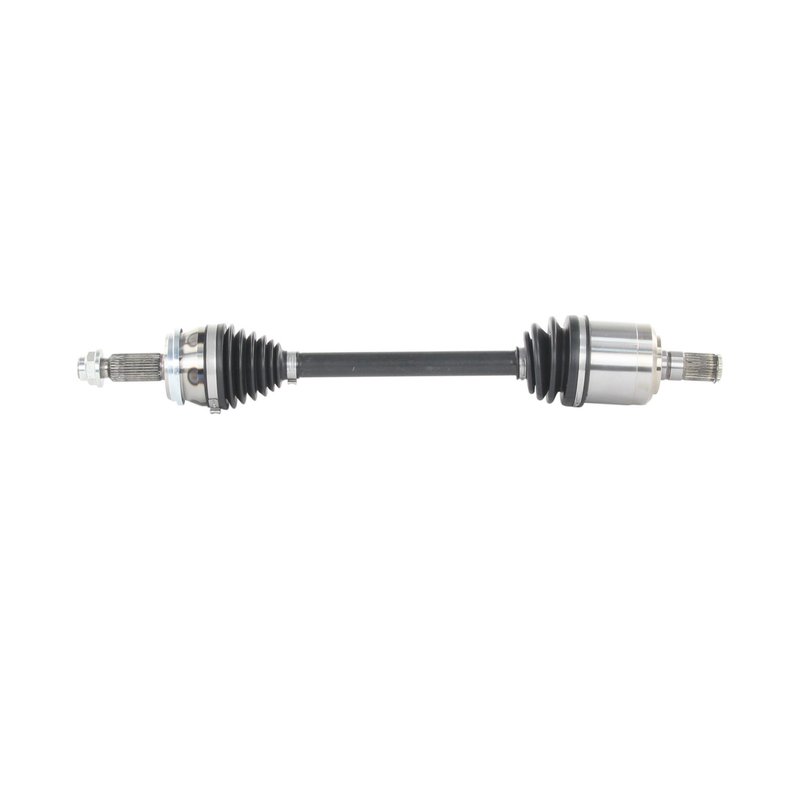

TrakMotive HY-86035 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86035 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .9 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.25 |
| Overall Compressed Length (mm) | 668 |
| Overall Extended Length (in) | 28.38 |
| Overall Extended Length (mm) | 721 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86035 and NCV37152 for the same application. See all 2.
Front Left CV Axle Shaft for Hyundai Santa Fe
The TrakMotive AAR CV Axle Shaft HY-86035 is a premium driveline replacement for the front left position on select Hyundai Santa Fe models. It is built for 2019-2020 Hyundai Santa Fe applications with OE AAR design, making it a direct-match option for front axle service.
TrakMotive’s AAR CV Axle Shaft line focuses on application-specific fitment and consistent manufacturing standards. This HY-86035 axle is produced by an ISO 9001:2008 and TS 16949:2009 certified company and is backed by a limited lifetime warranty.
Key Features
- Part number HY-86035 for front left driveline replacement
- Fits 2019-2020 Hyundai Santa Fe, front left
- OE AAR design for the listed application
- Premium-grade CV axle shaft construction
- Male inboard joint with conventional outboard joint
- 28 inboard splines and 30 outboard splines
- No ABS tone ring included; ABS ring tooth count is 0
- Axle nut thread size: M24x1.5
- Axle nut hex size: 32 mm
Detailed Description
TrakMotive HY-86035 is a front left CV axle shaft for the Hyundai Santa Fe, engineered for 2019-2020 vehicles with the OE AAR design. It measures 26.25 inches compressed and 28.38 inches extended, with a 32 mm axle nut hex size and M24x1.5 thread specification. The axle uses a male inboard joint and a conventional outboard joint, with 28 inboard splines and 30 outboard splines for the listed fitment.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application. If you are replacing a worn front left axle on a Hyundai Santa Fe, HY-86035 provides a direct-fit driveline solution for the specified model years.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain under acceleration
- Grease leakage from a damaged axle boot or joint wear
- Axle shaft play caused by spline or joint wear
- Front driveline noise on 2019-2020 Hyundai Santa Fe models
Installation Notes and Tips
Verify the vehicle is a 2019-2020 Hyundai Santa Fe, front left, before ordering. Confirm axle nut thread size, spline count, and ABS configuration against the original part, since this axle does not include an ABS tone ring and is listed for non-ABS applications unless otherwise noted. Inspect related components such as hub, seals, and suspension hardware during replacement to help prevent repeat labor.
Quality Assurance
TrakMotive manufactures this AAR CV Axle Shaft as a premium replacement part and states that the company is ISO 9001:2008 and TS 16949:2009 certified. HY-86035 is covered by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Hyundai | Santa Fe | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Hyundai | Santa Fe | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
