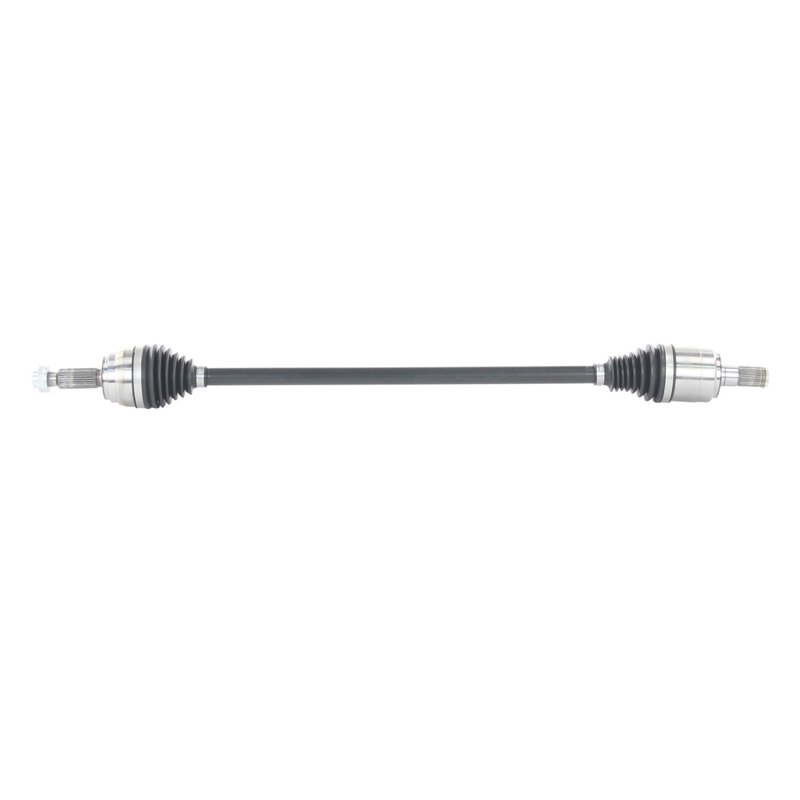

TrakMotive HY-86038 CV Axle Shaft - Front Right

CV Axle Shaft for Hyundai Elantra and Kia Forte

TrakMotive HY-86038 is a premium CV axle shaft for the front right position on select Hyundai Elantra and Kia Forte applications. It is built for direct replacement use on listed vehicles, with OE-style spline counts and axle dimensions that match the application requirements.

Key Features

• Front right CV axle shaft for select Hyundai Elantra and Kia Forte models
• Premium grade replacement from TrakMotive
• 27 splines on the inboard side and 27 splines on the outboard side
• Male inboard joint with conventional outboard joint design
• No ABS tone ring included; ABS ring tooth count is 0
• Axle nut thread size: M22x1.5
• Axle nut hex size: 32 mm (1.25 in)
• Overall compressed length: 955 mm (37.63 in); overall extended length: 997 mm (39.25 in)

Product Details

TrakMotive CV Axle Shaft HY-86038 is engineered for direct-fit replacement on the front right side of 2017-2023 Hyundai Elantra and 2019-2021 Kia Forte applications listed below. This axle shaft follows the specified spline count, joint style, and length measurements needed for proper driveline operation. It is a practical replacement choice for drivers servicing a Hyundai Elantra or Kia Forte front axle with the correct configuration.

This part cross-references Monroe Shocks & Struts (e.g., NCV37102, NCV75128) for the same application.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder during acceleration from a damaged axle shaft
• Grease leakage from a failing CV boot or joint assembly
• Excessive drivetrain play caused by worn splines or joint wear
• Front axle noise on a Hyundai Elantra or Kia Forte with the listed fitment

Installation Notes and Tips

Verify front right fitment by year, model, and build date before installation. Confirm axle nut thread size, hex size, and spline count against the original part, especially on 2020 Hyundai Elantra models built from 2/13/19 and 2018-2019 Hyundai Elantra models through 2/12/19. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

• Fits 2021-2023 Hyundai Elantra, front right; US built
• Fits 2020 Hyundai Elantra, front right; from 2/13/19
• Fits 2018-2019 Hyundai Elantra, front right; thru 2/12/19
• Fits 2017 Hyundai Elantra, front right; standard duty replacement
• Fits 2019-2021 Kia Forte, front right; standard duty replacement

Quality Assurance

TrakMotive identifies this CV axle shaft as a premium-grade part and states that its products are made by an ISO 9001:2008 and TS 16949:2009 certified company. HY-86038 is backed by a limited lifetime warranty.
