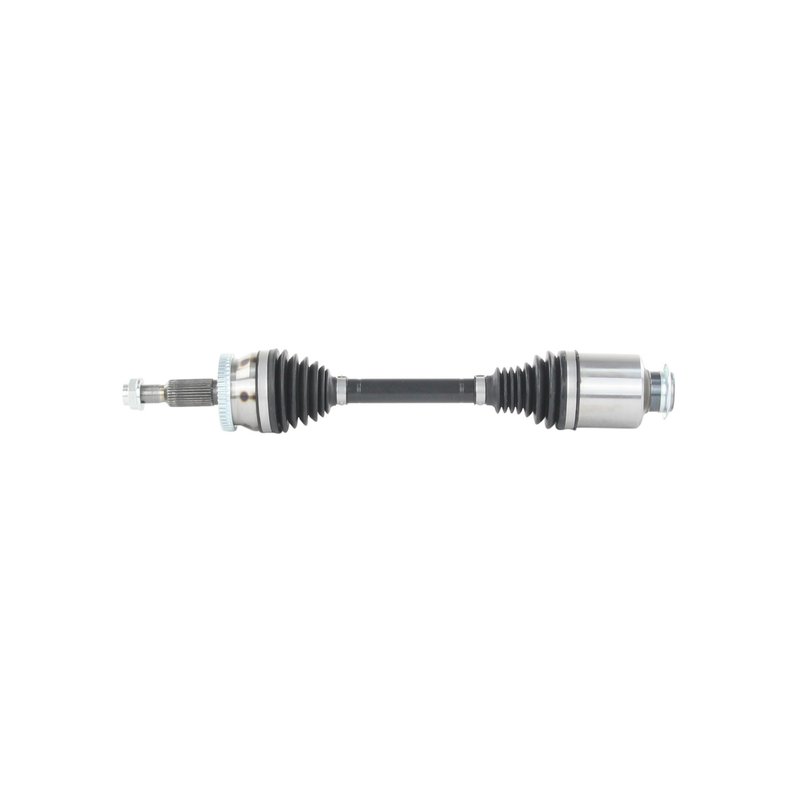

TrakMotive HY-86041 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86041 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 21.88 |
| Overall Compressed Length (mm) | 555 |
| Overall Extended Length (in) | 24 |
| Overall Extended Length (mm) | 609 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
ABS-ready design. Toothed ring supports ABS applications when equipped.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86041 for the same application. See all 1.
Front Right CV Axle for Hyundai Veloster N
TrakMotive HY-86041 is a premium CV axle shaft for the front right position on select Hyundai Veloster and Veloster N applications. Built for direct driveline service, it matches the required spline counts, ABS tone ring specification, and compressed/extended length for the listed vehicles.
Key Features
- Fits 2019-2022 Hyundai Veloster N, front right
- Fits 2019-2020 Hyundai Veloster, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: female
- Outboard joint type: conventional
- ABS ring: 48-tooth toothed design
- Overall compressed length: 21.88 in. (555 mm)
- Overall extended length: 24 in. (609 mm)
- Axle nut thread size: M22x1.5; hex size: 32 mm
Detailed Description
The TrakMotive AAR CV Axle Shaft HY-86041 is engineered for the front right side of the Hyundai Veloster N and Hyundai Veloster. It features a 28-2T inboard spline count, 30 outboard splines, and a toothed ABS ring with 48 teeth for applications that require ABS signal integration. The axle nut dimensions are 32 mm hex with M22x1.5 thread size, and the shaft length is specified at 21.88 inches compressed and 24 inches extended.
This TrakMotive HY-86041 axle is part of the AAR CV Axle Shaft line, which is positioned for direct-fit driveline service. It cross-references TrakMotive HY-86041 for the same application.
What It Helps Repair
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration caused by axle wear
- Grease leakage from a damaged CV boot or joint
- ABS warning concerns related to the axle tone ring setup
- Driveline noise from a fatigued front right axle assembly
Installation Notes and Tips
Before installation, inspect the intermediate shaft for damage and replace it if necessary, as recommended for these applications. Verify spline count, axle nut thread size, and ABS ring configuration against the original part before service. Confirm the front right position and ensure all mating surfaces are clean during assembly.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management standards.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Hyundai | Veloster N | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Hyundai | Veloster N | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Hyundai | Veloster | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Hyundai | Veloster N | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Hyundai | Veloster | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Hyundai | Veloster N | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
