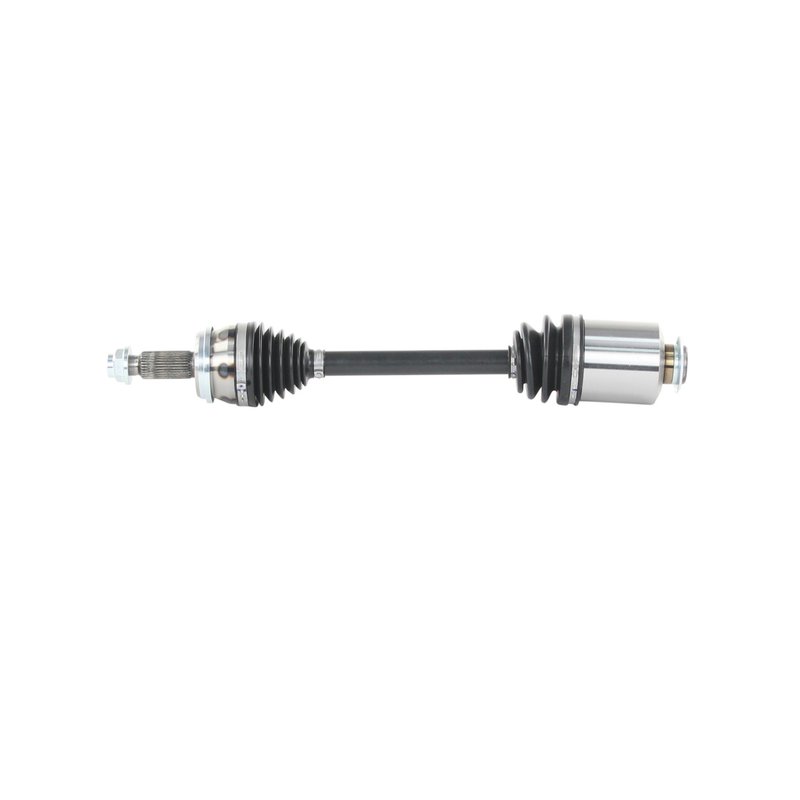

TrakMotive HY-86042 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86042 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .9 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.25 |
| Overall Compressed Length (mm) | 591 |
| Overall Extended Length (in) | 25.69 |
| Overall Extended Length (mm) | 653 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
OE direct replacement. Built as a premium CV axle shaft for straightforward replacement.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86042 and NCV37153 for the same application. See all 2.
Front Right CV Axle for Hyundai Santa Fe
TrakMotive HY-86042 is a premium CV axle shaft for the front right position on 2019-2020 Hyundai Santa Fe models. It is built for non-ABS applications unless otherwise noted and is backed by TrakMotive’s limited lifetime warranty.
Key Features
- Direct-fit CV axle shaft for the front right side
- Fits 2019-2020 Hyundai Santa Fe, front right
- Premium-grade construction for driveline service
- Female inboard joint with conventional outboard joint
- 28-2T inboard splines and 30 outboard splines
- Axle nut thread size: M24x1.5
- 32 mm axle nut hex size
- Overall compressed length: 591 mm; extended length: 653 mm
- No ABS tone ring included
Detailed Description
TrakMotive HY-86042 is an AAR CV Axle Shaft engineered for the front right side of the Hyundai Santa Fe. This axle is specified with a female inboard joint, a conventional outboard joint, and spline counts matched to the application for proper driveline engagement. For shoppers searching for a front right CV axle shaft for 2019-2020 Hyundai Santa Fe, HY-86042 provides the fitment and dimensions needed for a direct replacement.
The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline components built to meet quality standards. TrakMotive states its manufacturing is ISO 9001:2008 and TS 16949:2009 certified, and this part is covered by a limited lifetime warranty. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Part Helps Address
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration caused by axle wear
- Grease leakage from a damaged axle boot or joint
- Noise from a failing front right driveline shaft
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Fits 2019-2020 Hyundai Santa Fe, front right. Confirm the axle nut thread size, spline count, and overall length before installation. TrakMotive notes that when replacing a CV axle, the intermediate shaft should be inspected for damage and replaced if necessary. This axle does not include an axle nut or ABS tone ring.
Quality Assurance
TrakMotive backs this HY-86042 axle with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes for this CV axle shaft line.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Hyundai | Santa Fe | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Hyundai | Santa Fe | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
