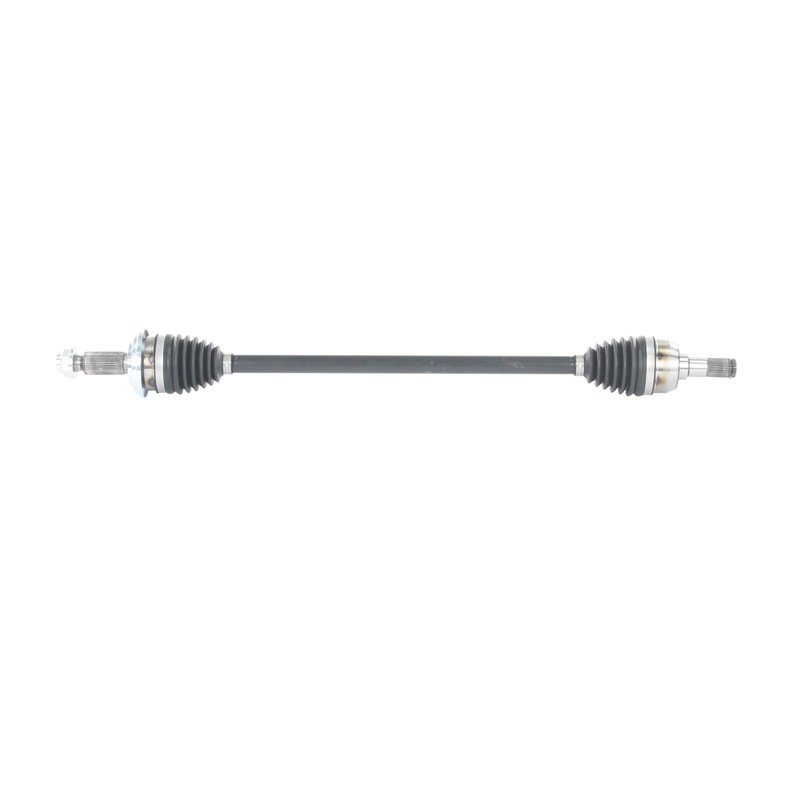

TrakMotive HY-86045 CV Axle Shaft - Rear Left
| Brand | TrakMotive HY-86045 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .9 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 33.06 |
| Overall Compressed Length (mm) | 840 |
| Overall Extended Length (in) | 34.81 |
| Overall Extended Length (mm) | 884 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86045 for the same application. See all 1.
Rear Left CV Axle Shaft for Hyundai Santa Fe
The TrakMotive HY-86045 is a premium CV axle shaft for the rear left position on select 2019-2020 Hyundai Santa Fe models. It is built for standard duty replacement needs and is engineered to match the axle dimensions and spline counts required for this application.
Key Features
- Fits 2019-2020 Hyundai Santa Fe, rear left
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 25; outboard splines: 30
- Overall compressed length: 33.06 in. (840 mm)
- Overall extended length: 34.81 in. (884 mm)
- Axle nut thread size: M24x1.5 with 32 mm hex size
- No ABS tone ring included
Product Details
TrakMotive HY-86045 is a CV axle shaft for the rear left side of the Hyundai Santa Fe, covering 2019 and 2020 model years. The axle is specified with a male inboard joint, a conventional outboard joint, 25 inboard splines, and 30 outboard splines for direct-fit driveline service. TrakMotive positions this CV axle shaft as a standard duty replacement for the listed application, and the part number HY-86045 is the reference to verify before ordering.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles. This part cross-references TrakMotive HY-86045 for the same application.
Common Repair Uses
- Restoring rear axle function after CV joint wear
- Addressing clicking, vibration, or driveline noise from the rear left side
- Replacing a damaged or leaking axle assembly
- Correcting spline or length mismatch during axle service
- Servicing a 2019-2020 Hyundai Santa Fe rear driveline repair
Installation Notes
Verify rear left fitment by year, model, and axle specifications before installation. Confirm axle nut thread size M24x1.5 and 32 mm hex size during service, and compare compressed and extended lengths to the removed axle. This axle does not include an ABS tone ring, and the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Hyundai | Santa Fe | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Hyundai | Santa Fe | Rear Left | Standard Duty Replacement; CV Axle Shaft |
