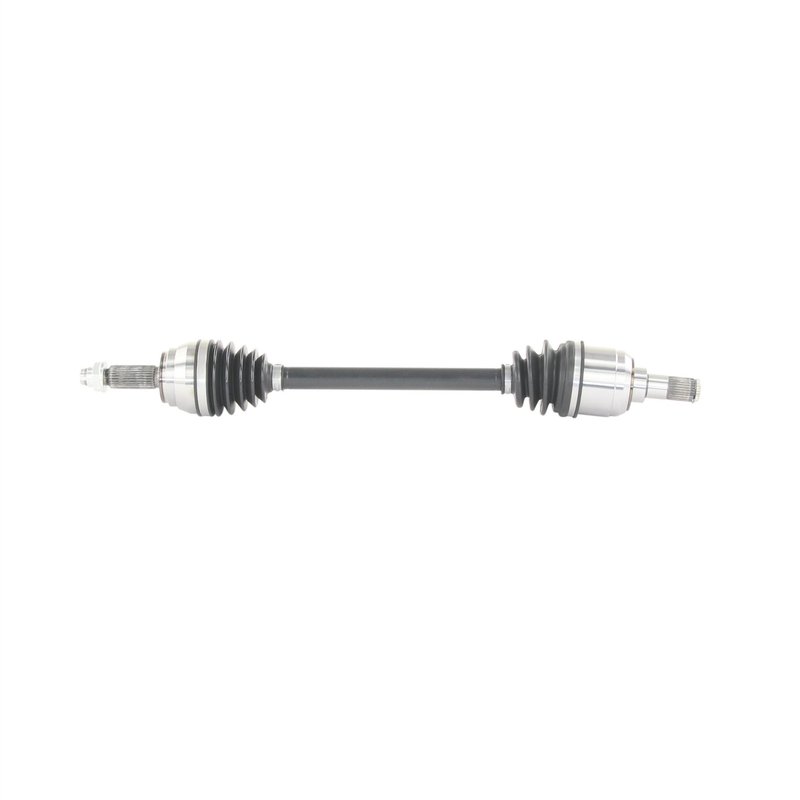

TrakMotive HY-86048 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86048 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.94 |
| Overall Compressed Length (mm) | 683.5 |
| Overall Compressed Length (mm) | 684 |
| Overall Extended Length (in) | 28.5 |
| Overall Extended Length (mm) | 724 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 1 vehicle |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86048 for the same application. See all 1.
Front Left CV Axle Shaft for Hyundai Elantra
TrakMotive HY-86048 is a premium CV axle shaft for the front left position on the 2021 Hyundai Elantra. It is built for standard-duty replacement service and is engineered with the correct spline counts and dimensions for a direct driveline repair.
TrakMotive CV axle shafts are part of the brand’s CV Components line, focused on replacement driveline parts for passenger vehicles. HY-86048 follows that application-specific approach with OE-style fitment details for the Hyundai Elantra front left axle location.
- Fits 2021 Hyundai Elantra, front left
- Part number: HY-86048
- Premium grade CV axle shaft
- 27 inboard splines and 27 outboard splines
- Male inboard joint with conventional outboard joint
- Overall compressed length: 683.5-684 mm (26.94 in)
- Overall extended length: 724 mm (28.5 in)
- Axle nut thread size: M22x1.5
- Axle nut socket size: 32 mm
- No ABS tone ring included
This CV axle shaft is used to restore front-wheel driveline function on the 2021 Hyundai Elantra, front left, when the original axle is worn, noisy, or damaged. HY-86048 is a direct replacement choice for Hyundai Elantra front left CV axle shaft service and matches the listed spline count, joint style, and length specifications for the application.
- Clunking or clicking during turns
- Vibration from the front driveline
- Grease leakage from a worn axle boot or joint
- Axle shaft noise under acceleration
- Loss of smooth power transfer to the front wheels
Installation should follow the vehicle service procedure for the 2021 Hyundai Elantra front left axle position. Verify axle nut thread size, spline count, and overall length before installation, and confirm whether the vehicle uses ABS-specific components since this axle does not include an ABS tone ring. The axle nut is not included.
TrakMotive states this part is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for replacement driveline parts. Part number HY-86048 is the reference to use when matching this axle shaft to the listed application.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Hyundai | Elantra | Manual | 1.6L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
