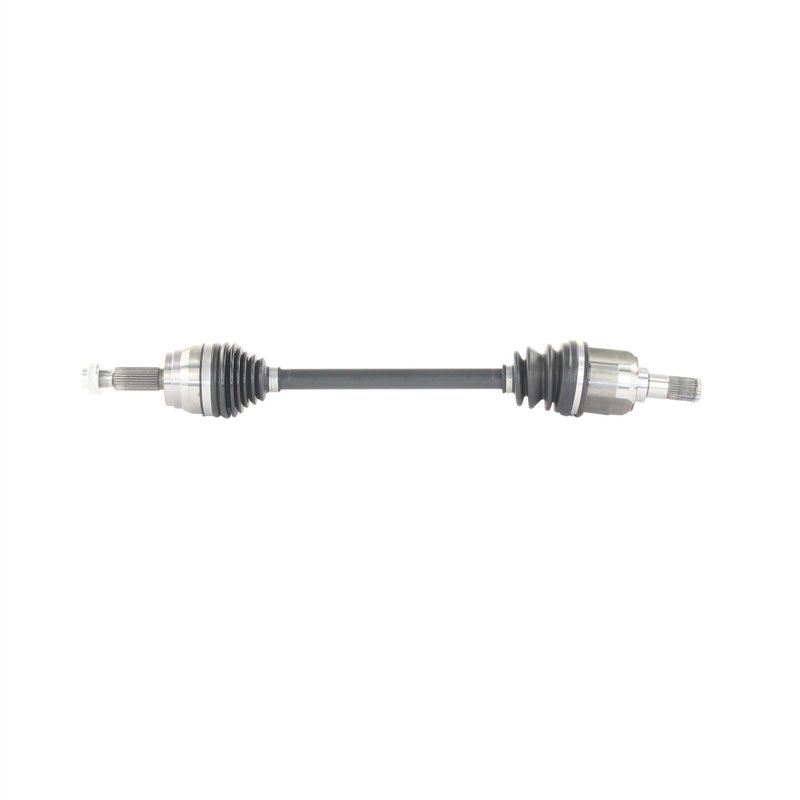

TrakMotive HY-86050 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Hyundai Applications

TrakMotive HY-86050 is a premium CV axle shaft for front left driveline service on select Hyundai models. It is built for direct replacement use on 2020 Hyundai Elantra, 2020 Hyundai Elantra GT Sport, 2019-2020 Hyundai Veloster Outer Assembly, 2018-2019 Hyundai Elantra from 8/20/18, and 2017 Hyundai Elantra Korea Built applications.

The TrakMotive CV Axle Shaft line focuses on application-specific fitment and OE-style service dimensions. HY-86050 uses a male inboard joint, conventional outboard joint, 27 inboard splines, and 27 outboard splines. It measures 671 mm compressed length and 712.5-713 mm extended length, with an M22x1.5 axle nut thread size and 32 mm axle nut socket size.

Key Features

• Front left CV axle shaft for select Hyundai Elantra, Elantra GT, and Veloster models
• TrakMotive part number HY-86050
• Premium grade replacement axle shaft
• Male inboard joint and conventional outboard joint
• 27-spline inboard and 27-spline outboard configuration
• ABS tone ring not included; ABS ring tooth count is 0
• Axle nut thread size M22x1.5 with 32 mm socket size
• Overall compressed length 671 mm; overall extended length 712.5-713 mm

Detailed Description

HY-86050 is a TrakMotive CV axle shaft engineered for front left service on specific Hyundai passenger cars and hatchbacks. It is a direct-fit driveline component for 2020 Hyundai Elantra, 2020 Hyundai Elantra GT Sport, 2019-2020 Hyundai Veloster Outer Assembly, 2018-2019 Hyundai Elantra from 8/20/18, and 2017 Hyundai Elantra Korea Built vehicles. If you are searching for a front left CV axle shaft for Hyundai Elantra or Hyundai Veloster applications, HY-86050 matches the listed fitment and spline configuration.

This part cross-references TrakMotive HY-86050 for the same application.

What This Part Helps Address

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration from a damaged axle shaft
• Grease leakage from a failing axle boot or joint assembly
• Noise from excessive driveline play at the front left wheel
• Loss of smooth power transfer to the front wheel

Installation Notes and Tips

Verify front left fitment by year, model, build date, and notes before installation. Confirm axle nut thread size M22x1.5 and socket size 32 mm during service. Inspect related components such as wheel hub, seals, and suspension hardware for wear before installing the replacement axle shaft. ABS axles fit non-ABS applications unless otherwise noted.

Quality Assurance

TrakMotive lists this CV axle shaft as a premium-grade part and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification. The manufacturer also backs this part with a limited lifetime warranty.
