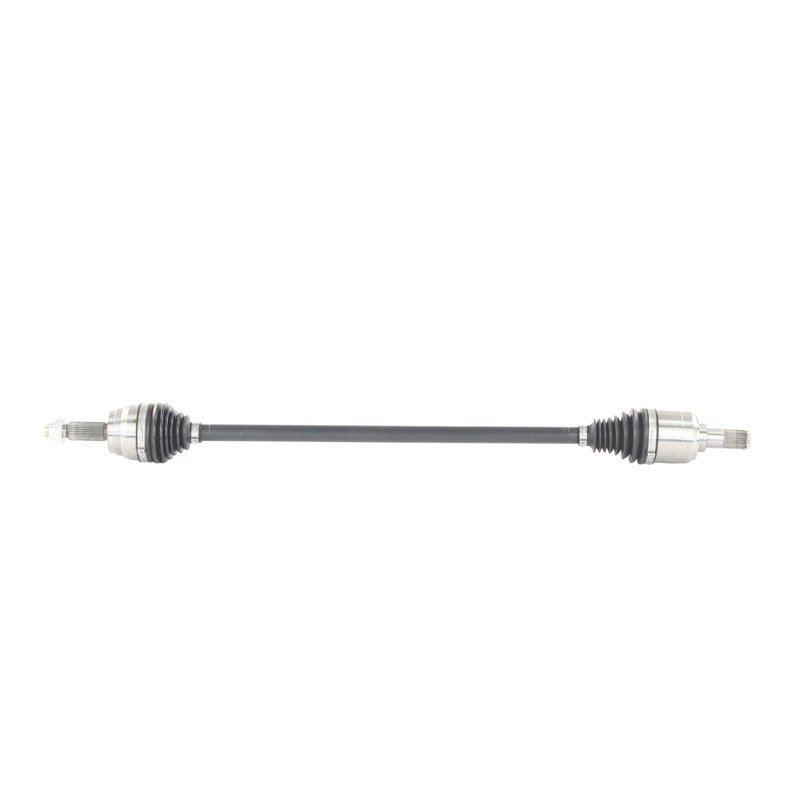

TrakMotive HY-86054 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86054 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 37.94 |
| Overall Compressed Length (mm) | 963 |
| Overall Extended Length (in) | 39.56 |
| Overall Extended Length (mm) | 1004.5 |
| Overall Extended Length (mm) | 1005 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 7 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-free design. No tone ring included for non-ABS applications unless noted.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86054 for the same application. See all 1.
TrakMotive CV Axle Shaft HY-86054
TrakMotive HY-86054 is a premium CV axle shaft for the front right position on select Hyundai applications. It is built for direct replacement use on 2017-2020 Hyundai Elantra, 2019-2020 Hyundai Veloster through 06/30/18, and 2021 Hyundai Veloster, with fitment details matched to the listed vehicle configurations.
Key Features
- Premium-grade CV axle shaft for driveline repair
- Front right application
- 27 inboard splines and 27 outboard splines
- Male inboard joint type with conventional outboard joint type
- No ABS tone ring included; ABS ring tooth count: 0
- Overall compressed length: 963 mm (37.94 in)
- Overall extended length: 1004.5-1005 mm (39.56 in)
- Axle nut thread size: M22x1.5; socket size: 32 mm
Detailed Description
This TrakMotive CV axle shaft is engineered for Hyundai Elantra and Hyundai Veloster front right driveline service where the original axle has worn splines, joint play, or vibration concerns. HY-86054 uses a 27-spline inboard and 27-spline outboard configuration, along with a male inboard joint and conventional outboard joint, to match the listed OE-style fitment requirements. The axle nut specifications include M22x1.5 threads and a 32 mm socket size, which helps confirm application before installation. This part cross-references TrakMotive (e.g., HY-86054) for the same application.
What It Helps Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from axle wear
- Grease leakage from a damaged axle assembly
- Driveline noise caused by excessive spline or joint play
- Front right axle replacement after road damage or boot failure
Installation Notes and Tips
Verify the vehicle’s build details, including Korea-built Elantra coverage and the Veloster date note through 06/30/18, before ordering. Confirm axle nut thread size, socket size, and overall axle length against the original part. Inspect seals, hub condition, and suspension components during replacement to avoid repeat driveline issues.
Quality Assurance
TrakMotive identifies this axle shaft as a premium part and states that its products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Hyundai | Veloster | Manual | — | — | Front Right | 06/30/18; CV Axle Shaft |
| 2020 | Hyundai | Elantra | Manual | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
| 2020 | Hyundai | Veloster | Manual | — | — | Front Right | Thru 06/30/18; CV Axle Shaft |
| 2019 | Hyundai | Elantra | Manual | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
| 2019 | Hyundai | Veloster | Manual | — | — | Front Right | Thru 06/30/18; CV Axle Shaft |
| 2018 | Hyundai | Elantra | Manual | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
| 2017 | Hyundai | Elantra | Manual | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
