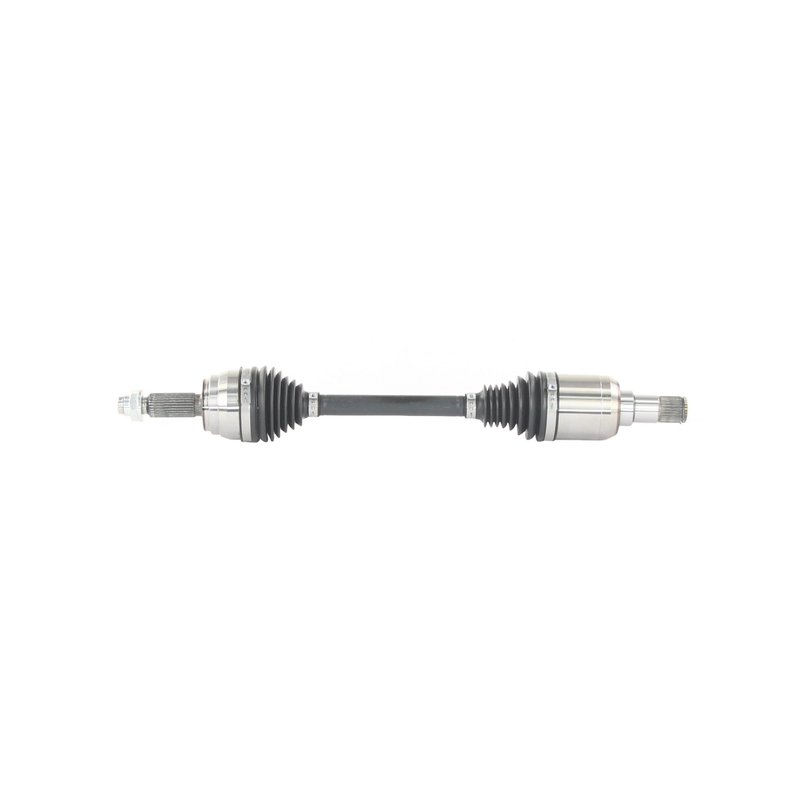

TrakMotive HY-86059 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86059 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.625 |
| Overall Compressed Length (mm) | 601 |
| Overall Extended Length (in) | 25.81 |
| Overall Extended Length (mm) | 656 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 1 vehicle |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Axle nut included. Stake-lock design with a 32 mm hex size for serviceability.
Cross-references TrakMotive HY-86059 and NCV37192 for the same application. See all 2.
Front Left CV Axle Shaft for 2021 Hyundai Elantra
TrakMotive HY-86059 is a front left CV axle shaft for the 2021 Hyundai Elantra standard duty replacement application. It is built with spline connections, thermoplastic boots, and the correct axle nut hardware specified for this application.
Key Features
- Direct-fit CV axle shaft for the front left position
- Fits 2021 Hyundai Elantra, front left
- 28 inboard splines and 27 outboard splines
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 23.625 in (601 mm); extended length: 25.81 in (656 mm)
- ABS tone ring not included
Product Details
TrakMotive HY-86059 is a CV axle shaft engineered for the front left side of the 2021 Hyundai Elantra. The shaft uses 28 splines at the inboard side and 27 splines at the outboard side, with thermoplastic boot construction to support driveline articulation. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application. TrakMotive HY-86059 is part of the CV Axle Shaft line and is backed by the brand’s limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.
What It Helps Fix
- Clicking or popping noises during turns
- Vibration from a worn front axle shaft
- Grease leakage from damaged CV boots
- Driveline play caused by worn splines or joints
- Loss of smooth power transfer to the front wheel
Installation Notes
Verify front left fitment before installation on the 2021 Hyundai Elantra. Confirm axle length, spline count, and axle nut thread size against the original part. The included axle nut uses a 32 mm hex size and stake-style locking design. ABS ring tooth count is 0 and no ABS tone ring is included, so confirm the vehicle’s original axle configuration before installation.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. HY-86059 includes a limited lifetime warranty from the manufacturer.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Hyundai | Elantra | 1.6L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
