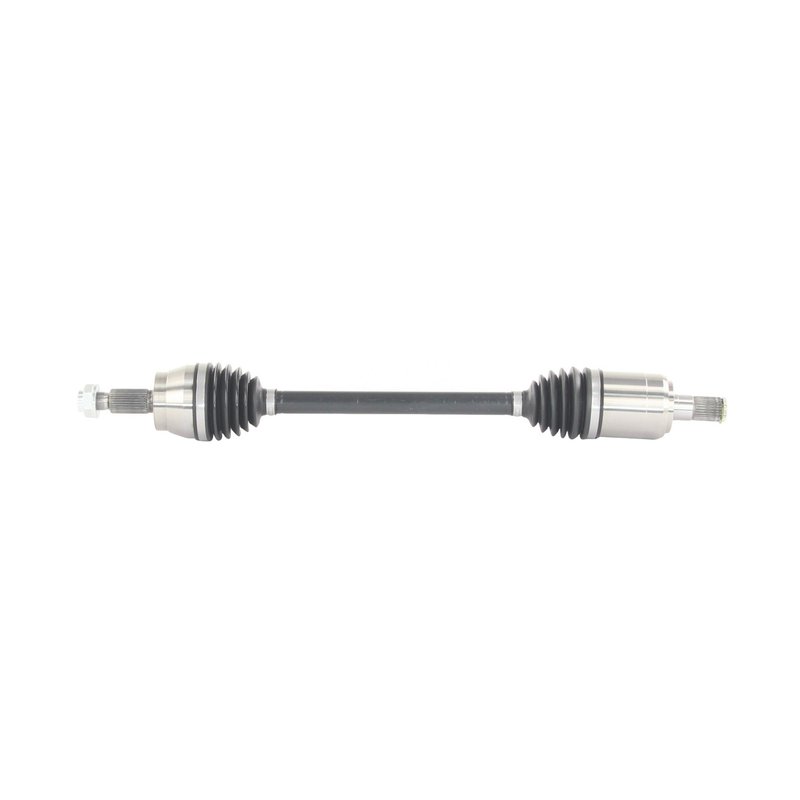

TrakMotive HY-86064 CV Axle Shaft - Front Left

CV Axle Shaft for Genesis Electrified G80

TrakMotive HY-86064 is a front left CV axle shaft for the 2023 Genesis Electrified G80. It is built for standard duty replacement use and matches the listed spline, length, and axle nut specifications for this application.

Key Features

• Fits 2023 Genesis Electrified G80, front left
• TrakMotive CV Axle Shaft, part number HY-86064
• Overall compressed length: 29.5 in. (750 mm)
• Overall extended length: 31.94 in. (812 mm)
• Inboard joint: male, spline connection, 28 splines
• Outboard joint: conventional, spline connection, 30 splines
• Thermoplastic boots on inboard and outboard joints
• Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
• No ABS tone ring included; ABS ring tooth count: 0

Product Details

TrakMotive HY-86064 is a direct-fit driveline replacement for the front left position on the 2023 Genesis Electrified G80. This CV axle shaft is specified with a 29.5-inch compressed length and 31.94-inch extended length, along with 28 inboard splines and 30 outboard splines for proper fitment in the listed vehicle. The included axle nut uses an M24x1.5 thread and 36 mm hex size. TrakMotive’s CV Axle Shaft line focuses on replacement axles for passenger vehicles, and this application is identified as a standard duty replacement for the Genesis Electrified G80.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Repair Uses

• Restores driveline connection at the front left wheel
• Addresses clicking or popping noises during turns caused by worn CV joints
• Helps correct vibration from a worn or damaged axle shaft
• Replaces a bent, seized, or leaking CV axle assembly
• Supports proper power transfer in the 2023 Genesis Electrified G80 front left position

Installation Notes

Verify spline count, compressed length, and axle nut thread size before installation. This axle includes an axle nut and does not include an ABS tone ring. Confirm the vehicle is a non-ABS application unless otherwise noted by the vehicle configuration. Use proper torque procedures and stake the axle nut as required during installation.

Quality Assurance

TrakMotive identifies this CV axle shaft as part of its ISO 9001:2008 and TS 16949:2009 certified manufacturing process. The HY-86064 is backed by a limited lifetime warranty.
