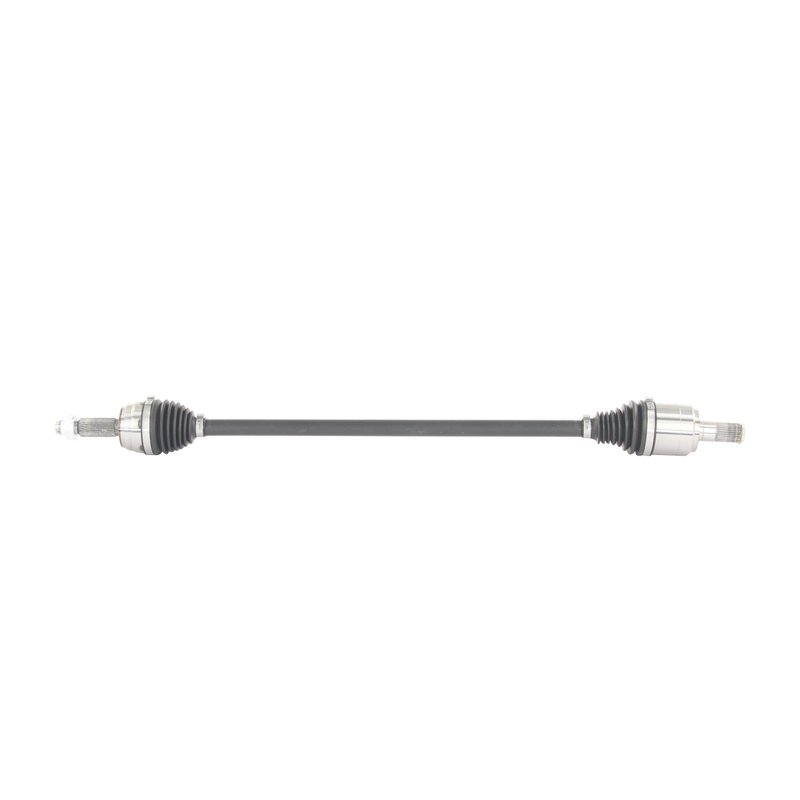

TrakMotive HY-86065 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86065 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 13/16 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37 5/8 |
| Overall Compressed Length (mm) | 955.5 |
| Overall Extended Length (in) | 39 1/4 |
| Overall Extended Length (mm) | 997 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 4 vehicles |
OE-style replacement. CV axle shaft for a straightforward driveline repair.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Spline connections. 27-spline ends provide a secure, precise fit.
Cross-references TrakMotive HY-86065 for the same application. See all 1.
Front Right CV Axle Shaft for Hyundai Elantra
The TrakMotive HY-86065 CV axle shaft is built for the front right position on select Hyundai Elantra models. It is a direct-fit driveline replacement for 2021-2024 Hyundai Elantra, front right, including Korea-built applications.
Key Features
- Fits 2021-2024 Hyundai Elantra, front right
- TrakMotive CV Axle Shaft, part number HY-86065
- 27 inboard splines and 27 outboard splines for the specified application
- Male inboard joint with spline connection style
- Conventional outboard joint with spline connection style
- Thermoplastic boots on both inboard and outboard joints
- Axle nut included with M22 x 1.5 thread, stake locking type
- No ABS tone ring included
- Overall compressed length: 37 5/8 in; overall extended length: 39 1/4 in
Product Details
TrakMotive HY-86065 is a replacement CV axle shaft for the front right side of the Hyundai Elantra. It is specified with 27 splines at both ends, a male inboard joint, and a conventional outboard joint, making it a direct driveline service part for the listed vehicle application. The included axle nut uses an M22 x 1.5 thread and a hex head design, and the shaft is supplied without an ABS tone ring.
TrakMotive CV axle shafts are part of the brand’s CV Axle Shaft line, focused on application-specific driveline replacement parts. HY-86065 is the correct search term for buyers looking for a front right CV axle shaft for 2021-2024 Hyundai Elantra, Korea-built, and for those comparing HY-86065 against OE-style replacement listings.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from torn or deteriorated CV boots
- Excessive drivetrain play caused by spline or joint wear
- Loss of smooth power transfer to the front right wheel
Installation Notes and Tips
Confirm the vehicle is a 2021-2024 Hyundai Elantra, front right, and verify Korea-built fitment before installation. Match the spline count, axle nut thread size, and overall shaft length to the original part. Inspect hub, bearing, and seal surfaces during replacement, and torque the axle nut to the vehicle manufacturer’s specification using the included stake-style nut.
Quality Assurance
TrakMotive lists this CV axle shaft under a Limited Lifetime Warranty and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Hyundai | Elantra | Automatic CVT | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
| 2023 | Hyundai | Elantra | Automatic CVT | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
| 2022 | Hyundai | Elantra | Automatic CVT | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
| 2021 | Hyundai | Elantra | Automatic CVT | 2.0L | L4 | Front Right | Korea Built; CV Axle Shaft |
