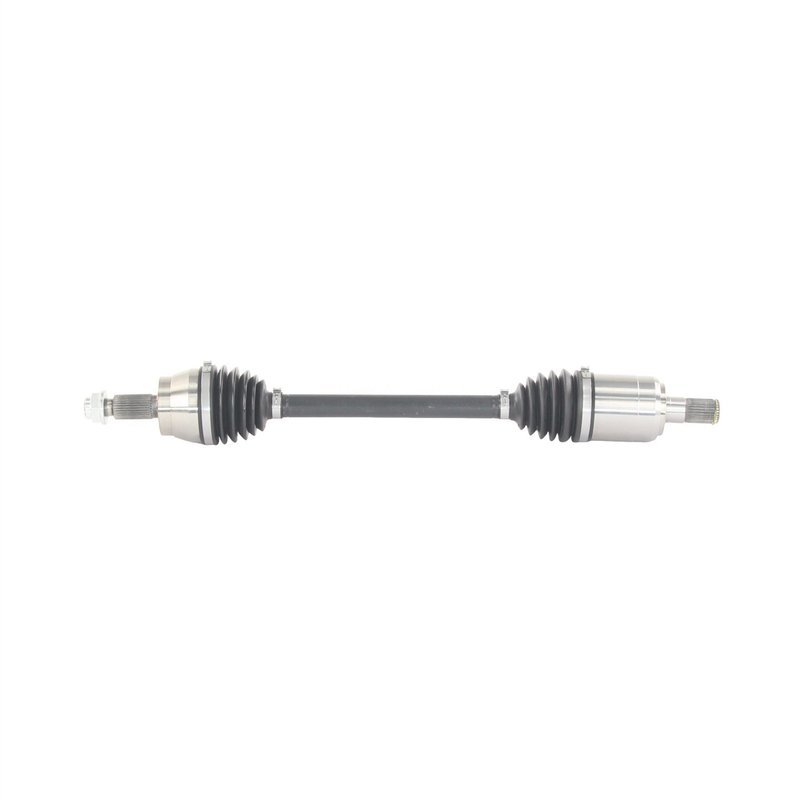

TrakMotive HY-86070 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86070 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.5 |
| Overall Compressed Length (mm) | 724 |
| Overall Extended Length (in) | 30.94 |
| Overall Extended Length (mm) | 787 |
| Product line | CV Axle Shaft |
| Fits | Genesis · 1 vehicle |
CV axle shaft. Direct replacement for driveline service.
Thermoplastic boots. Help protect the joints from contamination.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive HY-86070 for the same application. See all 1.
Front Right CV Axle Shaft for Genesis Electrified G80
TrakMotive HY-86070 is a front right CV axle shaft for the 2023 Genesis Electrified G80. It is built as a standard-duty replacement with spline-style shaft connections and the correct axle nut specification for a direct-fit driveline repair.
TrakMotive’s CV Axle Shaft line focuses on application-specific replacement parts for driveline and axle service. HY-86070 follows that approach with OE-style dimensions, thermoplastic boots, and fitment matched to the front right position on the Genesis Electrified G80.
Key Features
- Fits 2023 Genesis Electrified G80, front right
- TrakMotive part number HY-86070
- CV axle shaft for driveline and axle replacement
- 28 inboard splines and 30 outboard splines
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- No ABS tone ring included
Product Details
This CV axle shaft is engineered for the front right side of the 2023 Genesis Electrified G80 and matches the listed compressed and extended lengths for proper driveline geometry. HY-86070 uses a 28-spline inboard connection and a 30-spline outboard connection, along with a conventional outboard joint and thermoplastic boots for the joint assemblies. The included axle nut is specified with a 36 mm hex size and M24x1.5 thread.
This part cross-references TrakMotive HY-86070 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged CV boot
- Axle noise from a worn or damaged shaft assembly
- Front right driveline wear on a 2023 Genesis Electrified G80
Installation Notes
Verify front right fitment before installation and confirm spline count, axle nut thread size, and overall length against the original part. Inspect the hub, seals, and surrounding driveline components during replacement, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for replacement driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Genesis | Electrified G80 | Front Right | Standard Duty Replacement; CV Axle Shaft |
