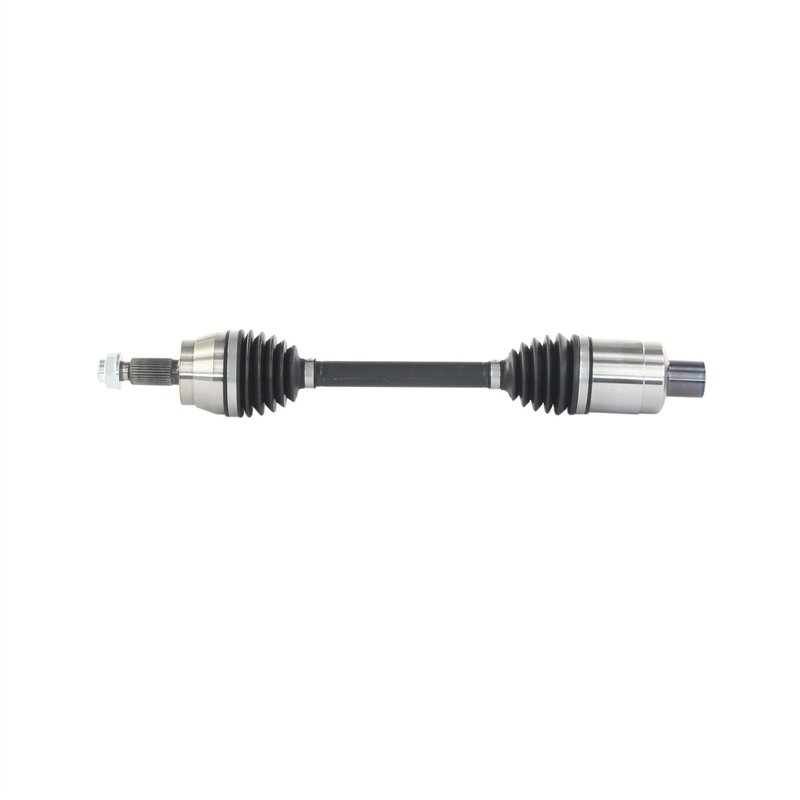

TrakMotive HY-86076 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86076 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.81 |
| Overall Compressed Length (mm) | 630 |
| Overall Extended Length (in) | 27.31 |
| Product line | AAR CV Axle Shaft |
| Fits | Genesis · 2 vehicles |
OE direct replacement. AAR CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic boots for durable joint protection.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive HY-86076 for the same application. See all 1.
TrakMotive HY-86076 Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HY-86076 is a premium driveline replacement for the front left side of the 2021-2022 Genesis GV80. It is built with spline-style shaft connections, thermoplastic boots, and a supplied axle nut for a direct service replacement on the listed application.
Key Features
- Fits 2021-2022 Genesis GV80, front left
- TrakMotive AAR CV Axle Shaft, part number HY-86076
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Thermoplastic inboard and outboard joint boot material
- Axle nut included; M24x1.5 thread, 36 mm hex size, stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive HY-86076 is an AAR CV axle shaft engineered for the front left position on the Genesis GV80. The shaft measures 24.81 inches compressed and 27.31 inches extended, with 28-2T inboard splines and 30 outboard splines. This configuration supports proper driveline transfer while matching the listed vehicle application. TrakMotive HY-86076 is a direct-fit service part for 2021-2022 Genesis GV80 front left axle replacement.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores driveline operation after a worn or damaged CV axle
- Addresses clicking or popping noises during turns
- Helps correct vibration caused by axle wear or imbalance
- Replaces a leaking or torn CV boot assembly on the axle
- Supports repair after spline or joint wear on the front left side
Installation Notes
Fits 2021-2022 Genesis GV80, front left. When replacing a CV axle, inspect the intermediate shaft for damage and replace it if necessary. Verify spline count, axle nut thread size, and overall length before installation to confirm the correct service part for the vehicle.
Quality Assurance
TrakMotive states that this AAR CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing and quality control.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Genesis | GV80 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Genesis | GV80 | Front Left | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
