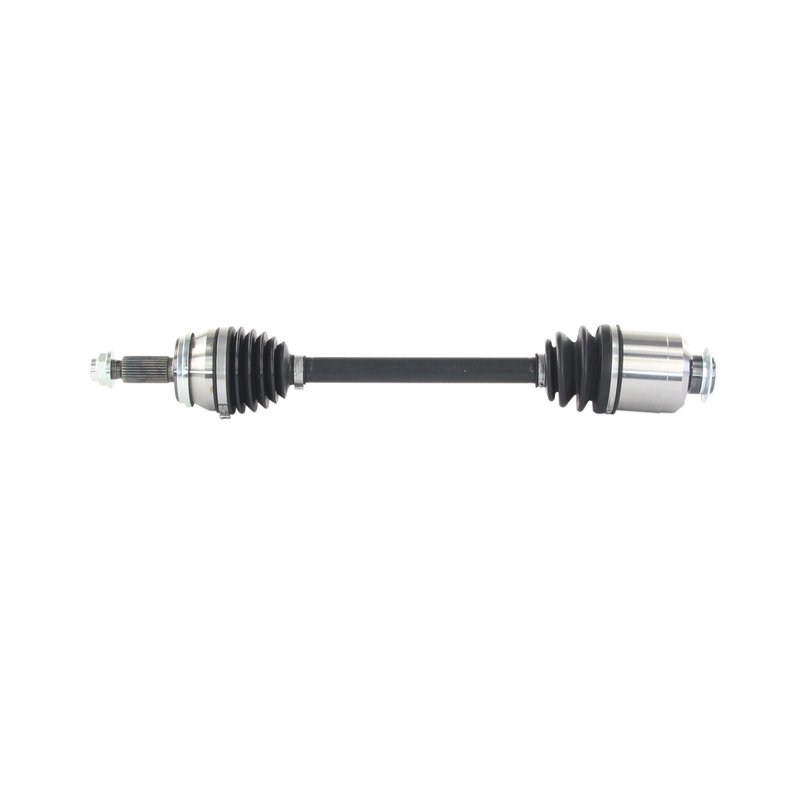

TrakMotive HY-86078 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86078 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.625 |
| Overall Compressed Length (mm) | 651 |
| Overall Extended Length (in) | 27.75 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai and Kia · 6 vehicles |
Premium grade. Built with thermoplastic and neoprene boots for durable joint protection.
Spline connections. Female inboard and conventional outboard joints for secure power transfer.
ABS-ready design. No tone ring included for non-ABS applications unless otherwise noted.
Cross-references TrakMotive HY-86078 and NCV37132 for the same application. See all 2.
Front Right CV Axle Shaft for Palisade and Telluride
TrakMotive HY-86078 is a premium front right CV axle shaft for select 2020-2022 Hyundai Palisade and 2020-2022 Kia Telluride applications. It is built for direct replacement service with the correct spline counts, axle nut specification, and overall shaft dimensions for the listed vehicles.
Key Features
- Fits 2020-2022 Hyundai Palisade, front right
- Fits 2020-2022 Kia Telluride, front right
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Inboard splines: 28-2T; outboard splines: 30
- Overall compressed length: 25.625 in. (651 mm)
- Overall extended length: 27.75 in. (706 mm)
- Includes axle nut with M24x1.5 thread, 32 mm hex size, and stake locking type
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
HY-86078 is part of TrakMotive’s AAR CV Axle Shaft line, a product line focused on replacement driveline components for specific vehicle applications. This axle is configured for the front right position on the Hyundai Palisade and Kia Telluride, with thermoplastic inboard boot material and neoprene outboard boot material for the listed fitment. TrakMotive HY-86078 also cross-references NCV37132 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping noises during turns caused by worn CV joints
- Vibration or shudder from a damaged or worn axle assembly
- Grease leakage from deteriorated CV boots
- Excessive play in the driveline from worn splines or joints
- Front right axle replacement needs on Palisade and Telluride models
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if necessary, especially when servicing the CV axle on these applications. Verify axle nut thread size, hex size, and position match the vehicle before assembly. Confirm the vehicle is a front right application and check all related driveline components for wear.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Hyundai | Palisade | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Kia | Telluride | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Hyundai | Palisade | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Kia | Telluride | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Hyundai | Palisade | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Kia | Telluride | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
