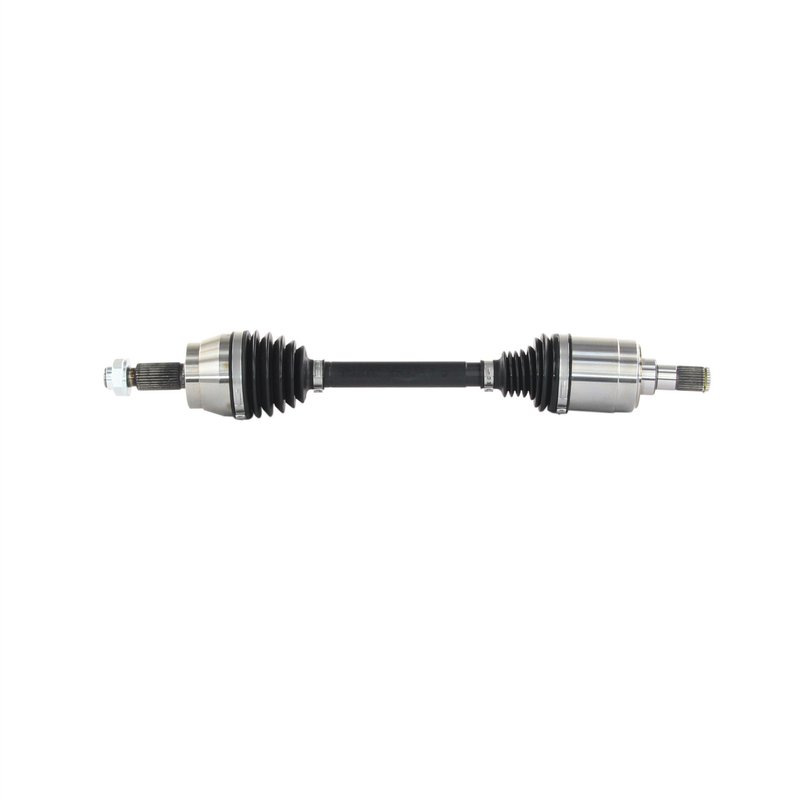

TrakMotive HY-86079 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86079 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.44 |
| Overall Compressed Length (mm) | 646 |
| Overall Extended Length (in) | 27.625 |
| Product line | AAR CV Axle Shaft |
| Fits | Genesis · 1 vehicle |
OE-style replacement. Built as a premium CV axle shaft for straightforward service.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Includes axle nut. Stake-lock design with a 36 mm socket size.
Cross-references TrakMotive HY-86079 for the same application. See all 1.
Front Right CV Axle Shaft for Genesis G80
TrakMotive HY-86079 is a premium AAR CV axle shaft for the front right position on the 2021 Genesis G80. It is built for OE AAR design applications and uses a conventional outboard joint with spline connections for a direct driveline replacement.
Key Features
- Fits 2021 Genesis G80, front right
- TrakMotive AAR CV Axle Shaft, part number HY-86079
- Premium-grade construction for driveline service
- 27 inboard splines and 30 outboard splines
- Thermoplastic boot material on both inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- Overall compressed length: 25.44 in (646 mm); overall extended length: 27.625 in (702 mm)
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the 2021 Genesis G80 and follows the OE AAR design noted for this application. The HY-86079 uses a male inboard joint, conventional outboard joint, and spline-style shaft connections to match the original driveline layout. TrakMotive positions the AAR CV Axle Shaft line as a premium replacement option for vehicles that need accurate fitment and consistent axle geometry.
Part number HY-86079 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, supporting controlled production standards for driveline components. This axle is listed for non-ABS applications unless otherwise noted, and the included axle nut is specified with a 36 mm socket size and M24x1.5 thread.
This part cross-references TrakMotive HY-86079 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Axle noise caused by spline or joint wear
- Loss of smooth power transfer to the front right wheel
Installation Notes
Verify front right fitment on the 2021 Genesis G80 before installation. Confirm axle spline count, axle nut thread size, and ABS configuration against the original part. Replace any worn seals or related driveline components during service, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Genesis | G80 | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
