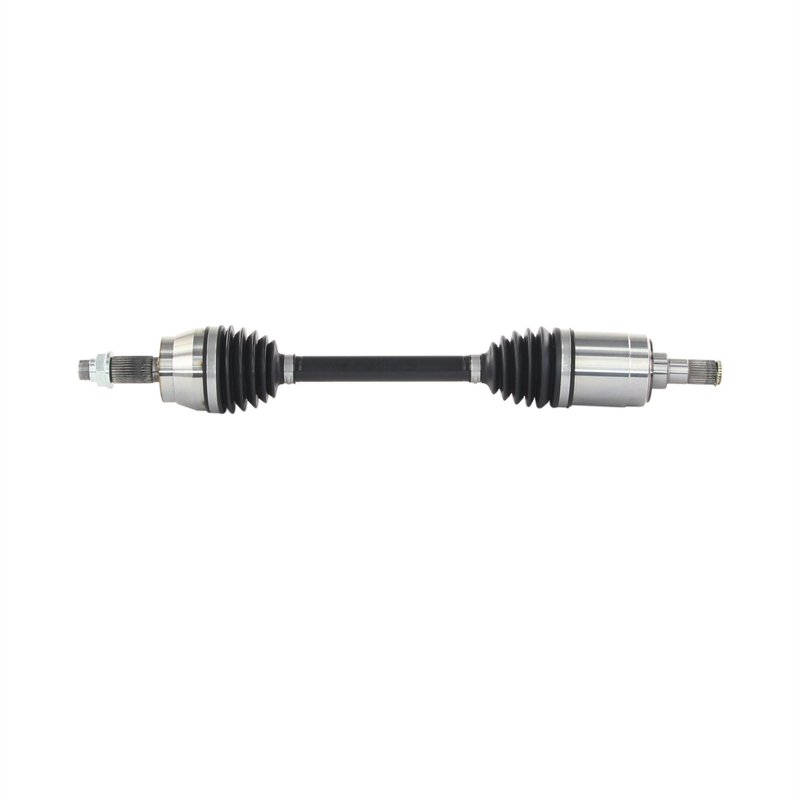

TrakMotive HY-86080 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86080 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.125 |
| Overall Compressed Length (mm) | 664 |
| Overall Extended Length (in) | 28.75 |
| Product line | AAR CV Axle Shaft |
| Fits | Genesis · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward, direct-fit service.
Premium grade. Built with thermoplastic boots and spline connections for dependable operation.
Hardware included. Axle nut is included for a more complete installation.
Cross-references TrakMotive HY-86080 for the same application. See all 1.
Front Right CV Axle Shaft for Genesis GV80
The TrakMotive AAR CV Axle Shaft HY-86080 is a premium driveline replacement for the front right position on select Genesis GV80 models. It is built for direct-fit service on 2021 and 2022 applications listed below, with spline counts and dimensions matched to the vehicle platform.
Key Features
- Part number HY-86080 for front right driveline service
- Fits 2022 Genesis GV80, front right, thru 12/09/2022
- Fits 2021 Genesis GV80, front right, from 12/10/2022
- 27 inboard splines and 30 outboard splines
- Overall compressed length: 26.125 in (664 mm)
- Overall extended length: 28.75 in (731 mm)
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- Thermoplastic boot material on inboard and outboard joints
- Premium grade construction
- ABS tone ring not included; 0 ABS ring tooth count
Product Details
This TrakMotive AAR CV axle shaft is engineered for the front right side of the Genesis GV80 and follows the application-specific dimensions needed for proper driveline alignment. The HY-86080 uses a male inboard joint with spline connection, a conventional outboard joint, and no ABS tone ring, making it a direct replacement for the listed non-ABS configuration details. TrakMotive identifies the AAR CV Axle Shaft line as a premium replacement option backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Uneven driveline engagement caused by spline or joint wear
- Front right axle replacement needs on Genesis GV80 models
Installation Notes and Tips
Verify the vehicle build date before ordering, since fitment differs between the 2021 and 2022 Genesis GV80 listings. Confirm the front right position, spline count, axle nut thread size, and overall axle length against the original part before installation. Always inspect the hub, seals, and surrounding suspension components during axle service.
Quality Assurance
TrakMotive supports this AAR CV Axle Shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing, which supports consistent production and application control for the HY-86080.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Genesis | GV80 | Front Right | Thru 12/09/2022; AAR CV Axle Shaft |
| 2021 | Genesis | GV80 | Front Right | From 12/10/2022; AAR CV Axle Shaft |
