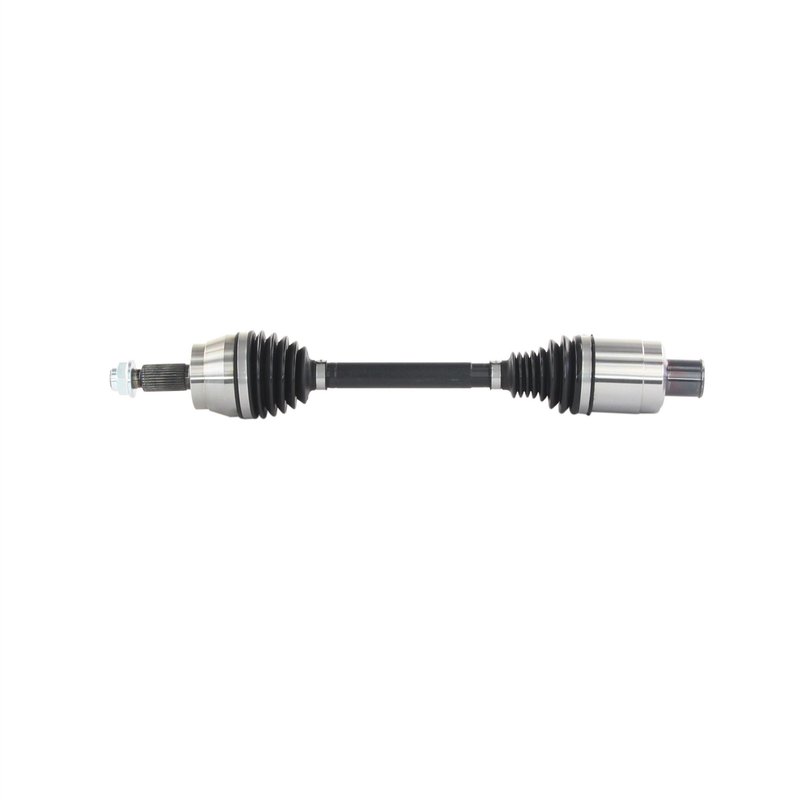

TrakMotive HY-86095 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86095 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28, 2 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.06 |
| Overall Compressed Length (mm) | 612 |
| Overall Extended Length (mm) | 669 |
| Overall Extended Length(In) | 26.31 |
| Product line | AAR CV Axle Shaft |
| Fits | Genesis · 1 vehicle |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Premium-grade construction. Thermoplastic boots and conventional joints for dependable operation.
Hardware included. Comes with a hex axle nut for secure fastening.
Cross-references TrakMotive HY-86095 for the same application. See all 1.
Front Left CV Axle Shaft for Genesis G80
TrakMotive HY-86095 is a premium CV axle shaft for the front left position on the 2021 Genesis G80. It is built with a female inboard joint, conventional outboard joint, and thermoplastic boots to support smooth driveline operation in the OE AAR design application.
Compatible with the 2021 Genesis G80 front left, this AAR CV axle shaft includes the axle nut and follows the specified spline and length requirements for the application. TrakMotive HY-86095 is a direct-fit driveline replacement for buyers searching for a 2021 Genesis G80 front left CV axle shaft or OE AAR design axle assembly.
Key Features
- Part number: HY-86095
- Front left CV axle shaft for 2021 Genesis G80
- OE AAR design application
- Female inboard joint with spline connection style
- Conventional outboard joint with spline connection style
- Thermoplastic inboard and outboard joint boots
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- Premium grade construction
- Overall compressed length: 24.06 in (612 mm)
- Overall extended length: 26.31 in (669 mm)
- ABS tone ring not included
Detailed Description
TrakMotive HY-86095 is an AAR CV axle shaft engineered for the front left side of the 2021 Genesis G80. It uses a 28, 2-spline inboard connection and a 30-spline outboard connection, with thermoplastic boot materials selected for the joint assemblies. The axle nut is included and specified with a hex head, 36 mm hex size, M24x1.5 thread, and stake-style locking.
TrakMotive’s AAR CV Axle Shaft line focuses on OE-style driveline replacement parts for applications that require accurate fitment and consistent joint geometry. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. HY-86095 is a practical choice for 2021 Genesis G80 front left axle replacement work where the OE AAR design is required.
Common Problems This Part Can Address
- Clicking or popping from a worn front left CV joint
- Vibration during acceleration caused by axle wear
- Grease leakage from damaged axle boots
- Axle shaft play or binding in the driveline
- Noise from a failing OE AAR design axle assembly
Installation Notes and Tips
Verify the front left position, spline count, and axle nut specifications before installation. Confirm whether the vehicle uses an ABS or non-ABS setup, since this axle does not include an ABS tone ring. Use the included axle nut and follow the vehicle service procedure for torque and staking requirements.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its facilities are ISO 9001:2008 and TS 16949:2009 certified, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Genesis | G80 | 3.5L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
