OE Quality
60-Day Returns
TrakMotivePart #: HY-86115

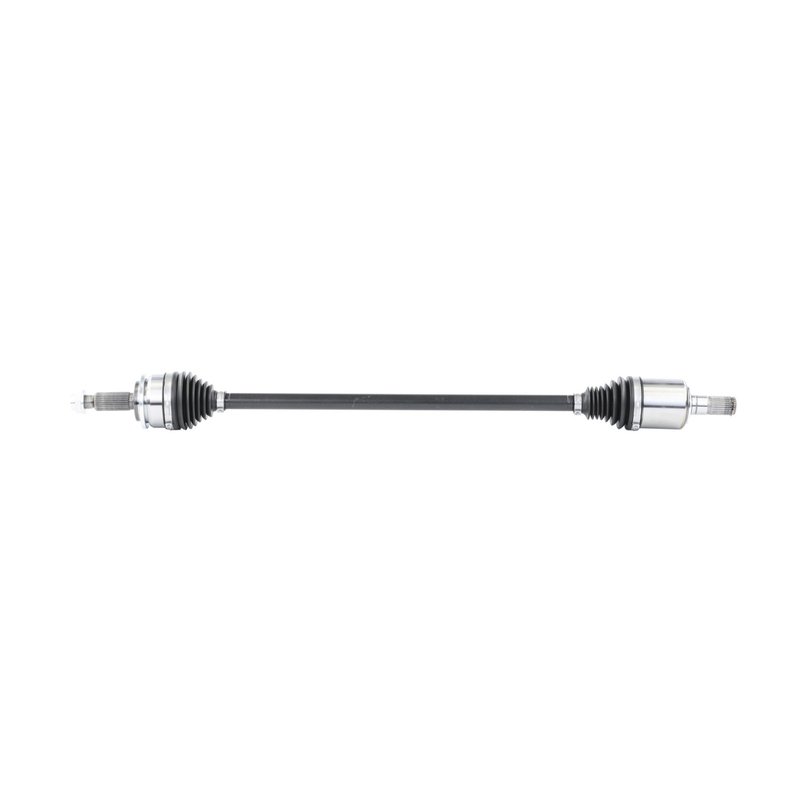

TrakMotive HY-86115 CV Axle Shaft - Front Right
3 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$138.40Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Front Right
Fitment: Hyundai, Venue
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive HY-86115 CV Axle Shaft - Front Right
| Brand | TrakMotive |
|---|---|
| Part Number | HY-86115 |
| Position | CV Axle Shaft, Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.06 |
| Overall Compressed Length (mm) | 942 |
| Overall Extended Length (in) | 39.125 |
| Overall Extended Length (mm) | 994 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Hyundai | Venue | Automatic CVT | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Hyundai | Venue | Automatic CVT | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Hyundai | Venue | Automatic CVT | Front Right | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
HY-86115NCV37195
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
