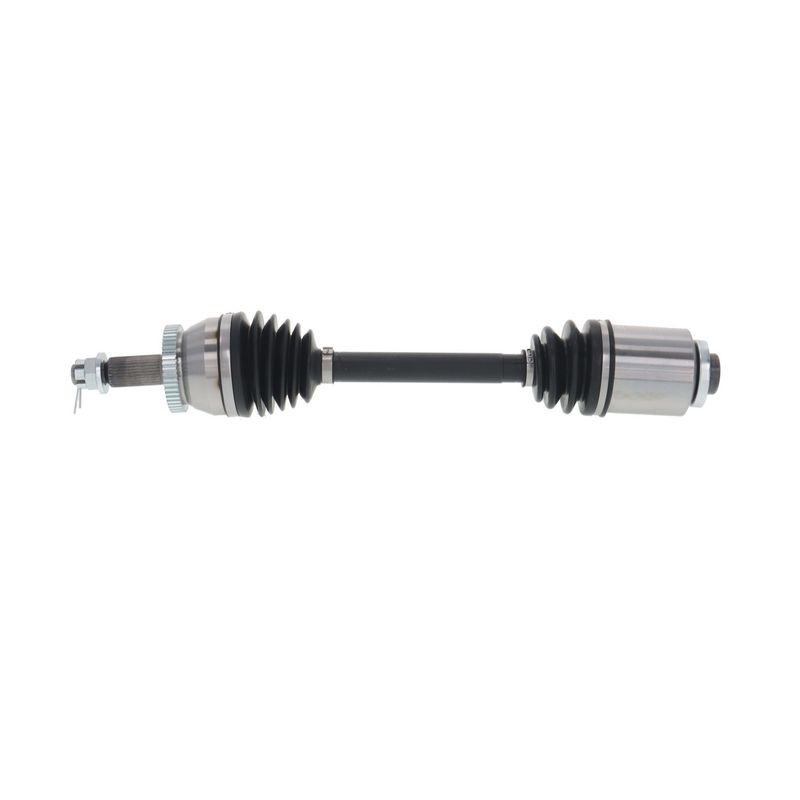

TrakMotive HY-86132 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86132 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 52 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 1/16 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24 1/16 |
| Overall Compressed Length (mm) | 610.5 |
| Overall Extended Length (mm) | 672 |
| Overall Extended Length(In) | 26 7/16 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward installation and dependable driveline service.
ABS tone ring included. Built with a toothed ring and 52 teeth for accurate wheel-speed signal support.
Spline-connected design. Neoprene and thermoplastic boots help protect the joints from wear and contamination.
Cross-references TrakMotive HY-86132 for the same application. See all 1.
TrakMotive HY-86132 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HY-86132 is a direct-fit driveline replacement for select Hyundai Santa Fe front right applications. It is built with OE-style spline connections, integrated ABS tone ring details, and application-specific dimensions for a precise service replacement.
Key Features
- Front right CV axle shaft for select Hyundai Santa Fe models
- OE AAR design for 2007-2008 Hyundai Santa Fe, front right
- Fits 2009 Hyundai Santa Fe, front right, thru 9/15/08
- ABS ring tooth count: 52 with toothed ABS ring type
- ABS tone ring included
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Inboard splines: 28-2T; outboard splines: 30
- Overall compressed length: 24 1/16 in. / 610.5 mm
- Overall extended length: 26 7/16 in. / 672 mm
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- Neoprene inboard boot material and thermoplastic outboard boot material
Product Details
TrakMotive HY-86132 is part of the AAR CV Axle Shaft line, a product line identified for OE-style axle applications. This axle shaft is engineered for the front right position on 2007-2008 Hyundai Santa Fe models and on 2009 Hyundai Santa Fe vehicles built thru 9/15/08. The design includes the specified ABS tone ring setup, spline counts, and compressed and extended lengths needed for accurate replacement service. TrakMotive HY-86132 is a practical choice when replacing a worn or damaged Hyundai Santa Fe CV axle shaft and restoring proper driveline operation.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Excessive play in the front right driveline assembly
- ABS-related fitment concerns when replacing an axle with a tone ring
Installation Notes and Tips
Verify the vehicle build date before ordering for 2009 Hyundai Santa Fe applications, since this axle applies thru 9/15/08. Confirm the front right position, axle nut thread size, spline counts, and ABS ring configuration against the original part before installation. Proper torque procedures and final inspection of the axle nut and hub interface are important for a secure repair.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Hyundai | Santa Fe | FWD | Automatic | 2.7L | V6 | Front Right | Thru 9/15/08; AAR CV Axle Shaft |
| 2008 | Hyundai | Santa Fe | — | — | 3.3L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2007 | Hyundai | Santa Fe | — | — | 3.3L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
