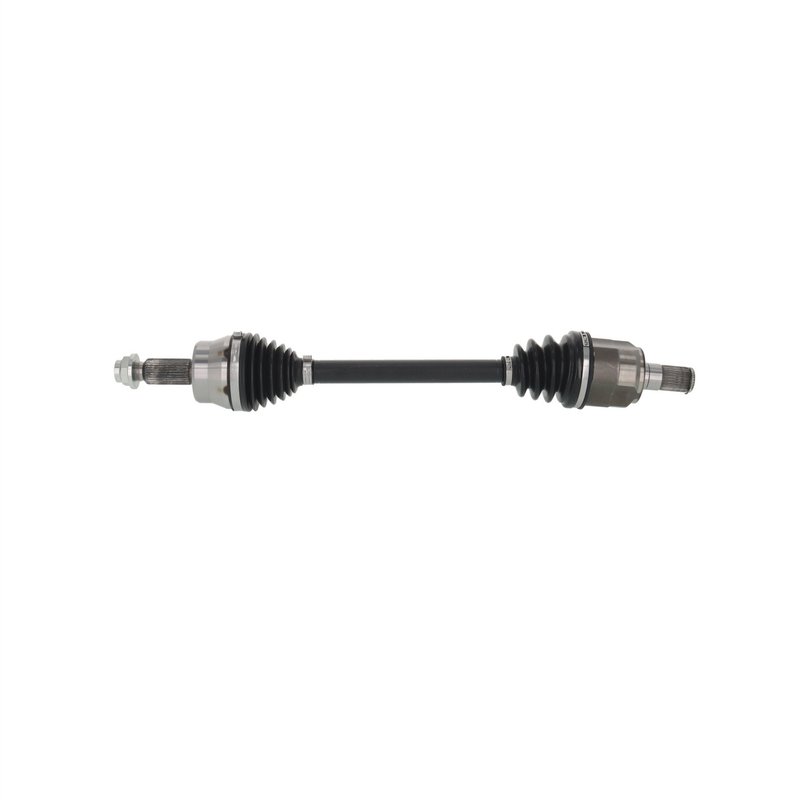

TrakMotive HY-86133 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86133 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.75 |
| Overall Compressed Length (mm) | 654 |
| Overall Extended Length (mm) | 699 |
| Overall Extended Length(In) | 27.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
Premium grade. Built with neoprene and thermoplastic boots for durable joint protection.
Spline connections. 28 and 30 spline ends provide a secure, precise fit.
Axle nut included. Stake-lock design with a hex head for straightforward installation.
Cross-references TrakMotive HY-86133 and NCV37189 for the same application. See all 2.
CV Axle Shaft for Hyundai Sonata
TrakMotive HY-86133 is a premium CV axle shaft for the front left position on select 2020-2022 Hyundai Sonata models. It is built for standard-duty replacement needs and includes the axle nut for a more complete service-ready assembly.
Key Features
- Fits 2020-2022 Hyundai Sonata, front left
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: male with spline connection
- 28 inboard splines and 30 outboard splines
- Overall compressed length: 25.75 in (654 mm)
- Overall extended length: 27.5 in (699 mm)
- Axle nut included; M24x1.5 thread, 32 mm hex size
- Inboard boot material: neoprene; outboard boot material: thermoplastic
- ABS tone ring not included
Product Details
TrakMotive HY-86133 is a CV axle shaft engineered for the front left side of the Hyundai Sonata in 2020, 2021, and 2022. The shaft uses a conventional outboard joint design, a male inboard joint, and spline connections at both ends for proper driveline engagement. TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts, and this application-specific axle is built to match the listed Sonata fitment. This part cross-references Monroe Shocks & Struts (e.g., NCV37189) for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Axle shaft wear that affects smooth power transfer
- Noise from a failing front left driveline assembly
Installation Notes and Tips
Verify front left fitment by matching the vehicle year, model, and axle specifications before installation. Confirm the axle nut thread size, hex size, and locking style against the original part. Inspect hub, bearing, and suspension components during service, and replace any worn related parts before final assembly. Because ABS tone ring is not included, confirm the vehicle’s ABS configuration and original axle design before installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing and quality control.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Hyundai | Sonata | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Hyundai | Sonata | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Hyundai | Sonata | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
