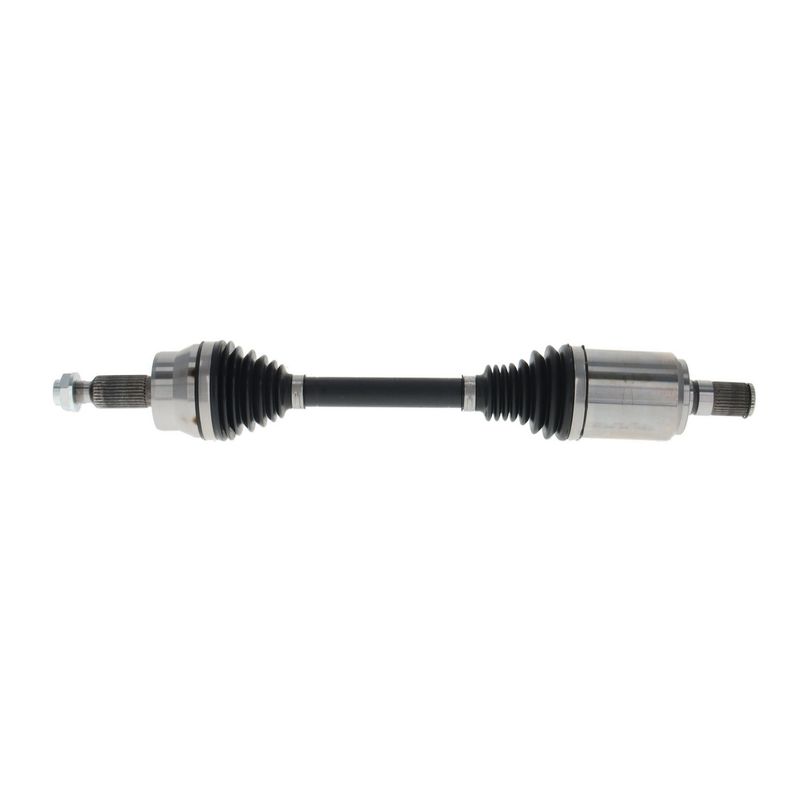

TrakMotive HY-86137 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86137 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.75 |
| Overall Compressed Length (mm) | 603 |
| Overall Extended Length (In) | 26.38 |
| Overall Extended Length (mm) | 671 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
OE-style AAR design. Built for fitment-specific driveline replacement and smooth spline engagement.
Includes axle nut. Supplied with M22x1.5 thread, 32 mm hex size, and stake locking type.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86137 for the same application. See all 1.
Overview
TrakMotive HY-86137 is an AAR CV axle shaft for select Hyundai Kona N applications. It is built for front left fitment and follows the OE AAR design called out in the fitment data.
Key Features
- AAR CV axle shaft construction for direct driveline replacement.
- Fits non-ABS applications unless otherwise noted; ABS tone ring is not included.
- Includes a hex axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type.
- Male inboard joint with spline connection and 31 inboard splines.
- Conventional outboard joint with spline connection and 30 outboard splines.
- Overall compressed length is 23.75 in, with extended length of 26.38 in.
Detailed Description
This TrakMotive CV axle shaft, part number HY-86137, is specified for 2022-2023 Hyundai Kona N front left applications. The axle uses a male inboard joint, conventional outboard joint, and spline connections at both ends to match the OE-style driveline layout. HY-86137 also includes the axle nut and is identified as an AAR CV axle shaft in the product line.
The AAR CV Axle Shaft line is positioned as a replacement solution for applications that require OE-style axle geometry and fitment-specific construction. TrakMotive HY-86137 is backed by a limited lifetime warranty and is produced by a company certified to ISO 9001:2008 and TS 16949:2009 standards. This part cross-references TrakMotive HY-86137 for the same application.
What It Helps Fix
- Clicking or popping from a worn CV axle assembly.
- Vibration during acceleration caused by axle wear.
- Loss of driveline smoothness from damaged splines or joints.
- Noise from a failing axle shaft in the front driveline.
Installation Notes
Verify axle length, spline count, and axle nut specifications before installation. This axle is listed for non-ABS applications unless otherwise noted, and the ABS tone ring is not included. Confirm the vehicle uses the front left OE AAR configuration before ordering HY-86137.
Quality Assurance
HY-86137 is covered by a limited lifetime warranty. TrakMotive states that the product is made by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Hyundai | Kona N | FWD | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Hyundai | Kona N | FWD | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
