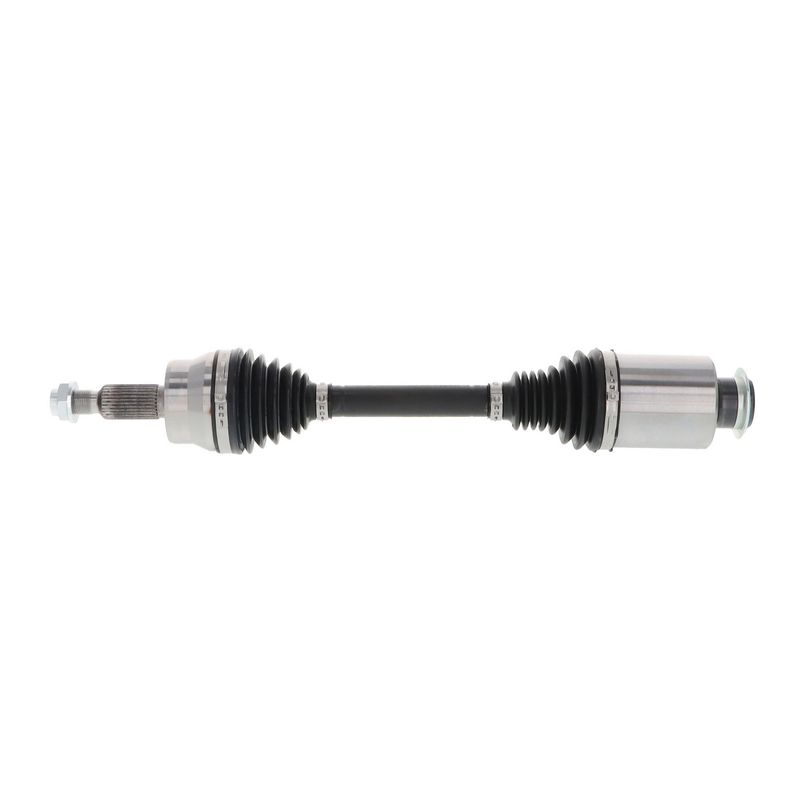

TrakMotive HY-86141 CV Axle Shaft - Front Right

Overview

The TrakMotive HY-86141 is an AAR CV axle shaft for the front right position on select Hyundai Kona N applications. It is built with spline connections, thermoplastic boots, and a conventional outboard joint for direct driveline service.

Fits 2022-2023 Hyundai Kona N, front right. This part number is HY-86141, and it cross-references TrakMotive HY-86141 for the same application.

Key Features

• AAR CV axle shaft construction for OE-style driveline replacement.
• Thermoplastic inboard and outboard joint boots for consistent joint protection.
• Female inboard joint with spline connection and 28-2T inboard splines.
• Conventional outboard joint with 30 outboard splines.
• Includes axle nut with M22x1.5 thread, 32 mm hex, and stake locking type.
• ABS tone ring is not included for non-ABS applications.

Detailed Description

The HY-86141 CV axle shaft is engineered for the front right driveline position on 2022-2023 Hyundai Kona N models. Its compressed and extended lengths are 21.88 inches and 24.56 inches, respectively, helping match the original axle geometry for proper installation and operation. The axle uses a female inboard joint, a conventional outboard joint, and spline-style shaft connections to support a precise fit in the intended application. The HY-86141 part number is also useful when verifying the correct axle during replacement work.

TrakMotive’s AAR CV Axle Shaft line focuses on application-specific driveline components with OE-style fitment details. For this Hyundai Kona N axle shaft, the included axle nut and non-ABS configuration details simplify parts matching when servicing the front right side. If you are replacing a worn axle on a Hyundai Kona N, HY-86141 provides the fitment and construction details needed for a direct driveline repair.

Common Issues This Part May Address

• Clicking or popping noises during turns from a worn CV joint.
• Vibration or shudder caused by axle wear or imbalance.
• Grease leakage from damaged axle boots.
• Driveline noise from spline or joint wear.
• Loss of smooth power transfer through the axle assembly.

Installation Notes and Tips

Confirm the vehicle is a non-ABS application before installation, since this axle is listed without an ABS tone ring. Verify spline counts, axle nut thread size, and compressed length against the removed part before assembly. Use the included axle nut and follow the vehicle service procedure for proper torque and staking.

Quality Assurance

TrakMotive lists a limited lifetime warranty for this CV axle shaft. The product is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing standards.
