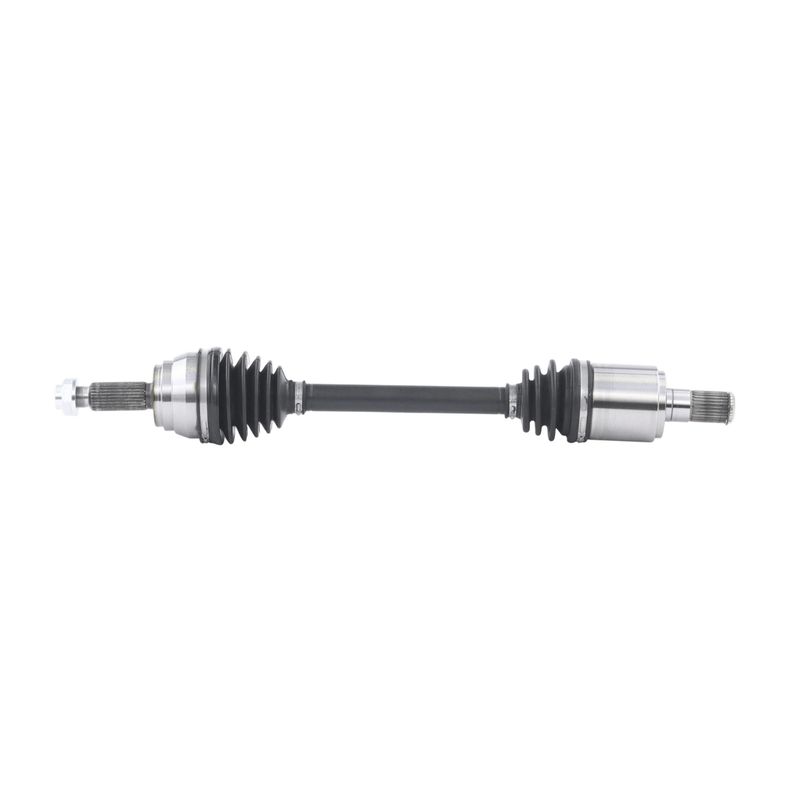

TrakMotive HY-86142 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86142 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.81 |
| Overall Compressed Length (mm) | 630 |
| Overall Extended Length (in) | 26.69 |
| Overall Extended Length (mm) | 678 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
OE-style replacement. Premium CV axle shaft built for the listed driveline application.
Neoprene boot material. Both joint boots use neoprene for durable sealing at the joints.
Supplied axle nut. Includes a stake-style nut with M22x1.5 thread and 32 mm hex size.
Cross-references TrakMotive HY-86142 and NCV37191 for the same application. See all 2.
Overview
TrakMotive HY-86142 is a CV axle shaft for the front left position on select Hyundai Kona models. It is built as a premium replacement with a supplied axle nut and non-ABS configuration details that match the listed application.
Fits 2022-2023 Hyundai Kona, front left. This part number, HY-86142, is a direct reference for the listed application and is also cross-referenced to NCV37191 for the same fitment.
Key Features
- Premium-grade CV axle shaft for driveline service
- Neoprene boots on the inboard and outboard joints
- 28 inboard splines and 27 outboard splines
- Includes a stake-style axle nut with M22x1.5 thread
- Non-ABS design with no tone ring included
- Overall compressed length: 24.81 in. Overall extended length: 26.69 in.
Detailed Description
HY-86142 is engineered for the front left driveline position on the Hyundai Kona listed in the fitment data. The axle uses a male inboard joint with spline connection, a conventional outboard joint, and neoprene boot material at both ends for a service-ready replacement. The supplied axle nut uses a 32 mm hex size and stake locking type, which supports a straightforward match to the specified application.
TrakMotive HY-86142 is identified for 2022-2023 Hyundai Kona applications and is intended for non-ABS use unless otherwise noted in the fitment data. The part number HY-86142 should be matched carefully to the vehicle configuration, spline count, and overall length before installation.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged joint boots
- Noise caused by spline or joint deterioration
Installation Notes
Verify the vehicle’s ABS and non-ABS configuration, spline count, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style against the removed part. Professional installation and final torque checks are recommended for proper driveline operation.
Quality Assurance
TrakMotive lists this axle shaft as a premium-grade replacement and states that it is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Hyundai | Kona | 1.6L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Hyundai | Kona | 1.6L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
