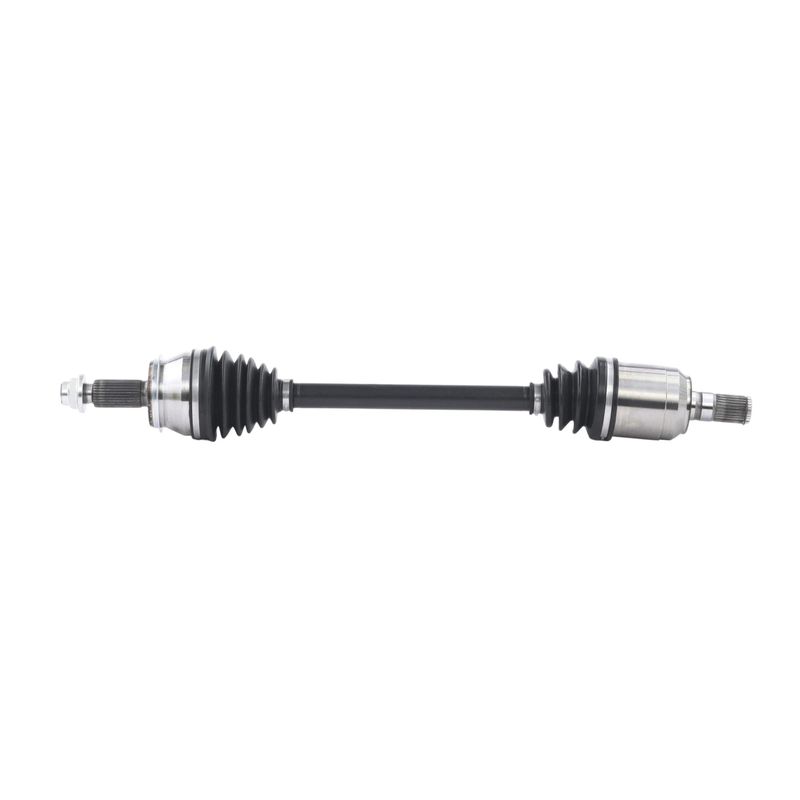

TrakMotive HY-86145 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-86145 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.88 |
| Overall Compressed Length (mm) | 708 |
| Overall Extended Length (in) | 30.06 |
| Overall Extended Length (mm) | 764 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
OE-style replacement. AAR CV axle shaft built for direct application matching.
Neoprene boot material. Helps protect the joints from contamination and wear.
Included axle nut. Uses M24x1.5 threads with a stake locking design.
Cross-references TrakMotive HY-86145 for the same application. See all 1.
Overview
TrakMotive HY-86145 is an AAR CV axle shaft for select Hyundai Palisade applications. It is built for front left fitment and follows an OE AAR design for direct replacement use in the listed vehicles.
Key Features
- Fits 2023-2024 Hyundai Palisade, front left.
- Premium-grade CV axle shaft with neoprene boots for joint protection.
- Includes an axle nut with M24x1.5 thread size, 32 mm hex size, and stake locking type.
- Non-ABS axle design with no ABS tone ring included.
- Inboard spline count: 28; outboard spline count: 30.
Product Details
This TrakMotive CV axle shaft is engineered for the Hyundai Palisade platform listed in the fitment data and is identified by part number HY-86145. The axle uses a male inboard joint with spline connection, a conventional outboard joint, and overall compressed and extended lengths of 27.88 inches and 30.06 inches. HY-86145 is a practical replacement for restoring driveline function when the original axle shows wear, vibration, or joint noise.
The AAR CV axle shaft line is positioned as an OE-style replacement range within TrakMotive’s driveline catalog. For buyers searching for a Hyundai Palisade front left CV axle shaft, HY-86145 provides the listed dimensions and connection details needed for application matching. This part cross-references TrakMotive HY-86145 for the same application.
Common Uses
- Replacing a worn or noisy CV axle shaft.
- Addressing clicking or binding from a damaged constant velocity joint.
- Restoring proper driveline transfer after axle boot or joint wear.
- Correcting vibration related to axle shaft damage or imbalance.
Installation Notes
Verify the vehicle’s axle configuration, spline counts, and length before installation. This axle is listed for non-ABS applications unless otherwise noted, and the included axle nut uses a 37 mm socket size. Confirm the front left position and compare the original shaft to HY-86145 before assembly.
Quality Assurance
TrakMotive lists this part under its AAR CV Axle Shaft line and states that the company is ISO 9001:2008 and TS 16949:2009 certified. The product is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Hyundai | Palisade | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Hyundai | Palisade | Front Left | OE AAR design; AAR CV Axle Shaft |
