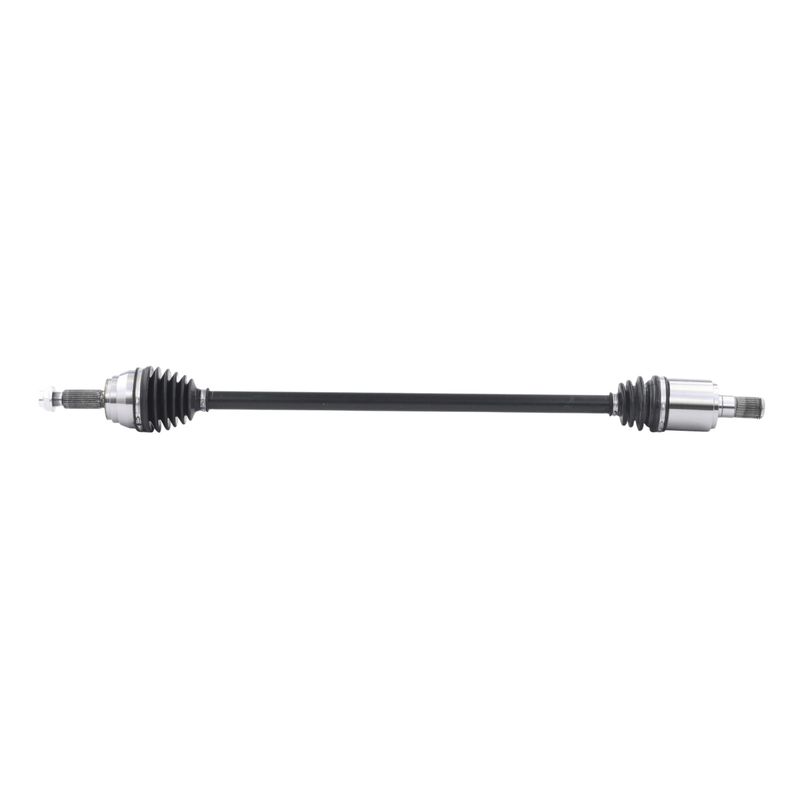

TrakMotive HY-86147 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-86147 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 39.56 |
| Overall Compressed Length (mm) | 1004 |
| Overall Extended Length (in) | 41.44 |
| Overall Extended Length (mm) | 1052 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
OE-style replacement. Direct-fit CV axle shaft for service on the listed application.
Premium construction. Neoprene boots and spline connections support dependable driveline service.
Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HY-86147 for the same application. See all 1.
CV Axle Shaft for Hyundai Kona
This TrakMotive CV axle shaft, part number HY-86147, is built for a direct replacement application on the front right side. It is listed for 2022-2023 Hyundai Kona models and includes axle nut details that match the specified fitment.
Key Features
- Fits 2022-2023 Hyundai Kona, front right.
- Premium-grade CV axle shaft for driveline service.
- Neoprene boots on the inboard and outboard joints.
- 28 inboard splines and 27 outboard splines.
- Includes a stake-style axle nut with M22x1.5 thread.
- No ABS tone ring included for non-ABS applications unless otherwise noted.
Product Details
The HY-86147 CV axle shaft is engineered for the front right position on the Hyundai Kona within the listed model years. It uses a male inboard joint with spline connection, a conventional outboard joint, and compressed and extended lengths that align with the specified application. The included axle nut features a 32 mm hex size and stake locking type for proper service replacement.
TrakMotive identifies this axle shaft as a premium driveline component and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing. This part cross-references TrakMotive HY-86147 for the same application.
Common Uses
- Replacing a worn or noisy CV axle shaft.
- Addressing vibration during acceleration.
- Correcting clicking or binding from a failing axle assembly.
- Restoring driveline connection after boot or joint wear.
Installation Notes
Verify axle spline count, overall length, and axle nut thread size before installation. This application is listed for non-ABS use unless otherwise noted, and the axle nut is included. Confirm the front right fitment on the Hyundai Kona before service.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The part is produced by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Hyundai | Kona | FWD | 1.6L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Hyundai | Kona | FWD | 1.6L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
