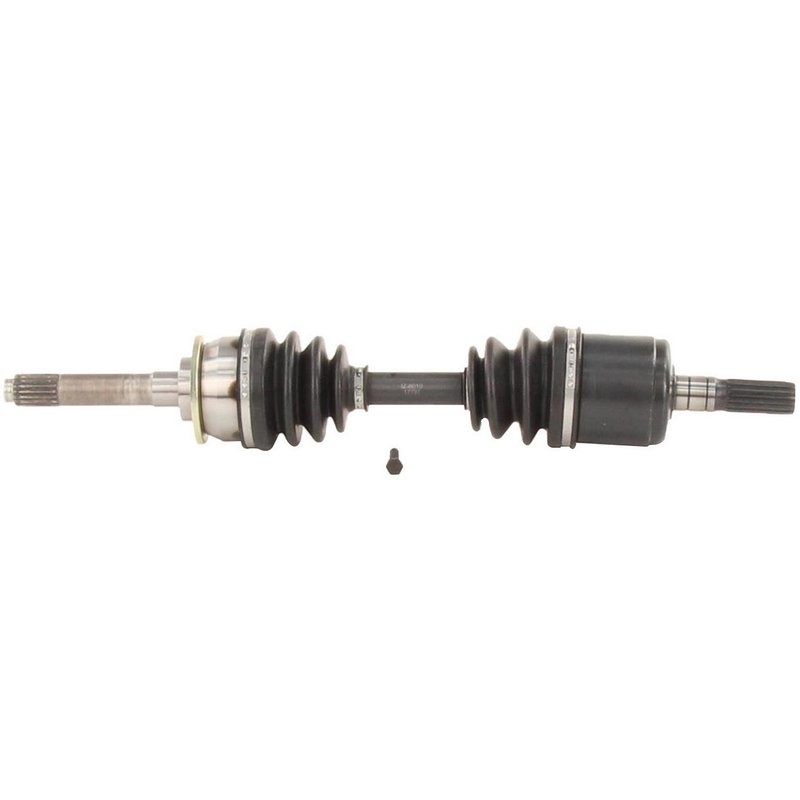

TrakMotive IZ-8010 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft IZ-8010 for Isuzu VehiCROSS

The TrakMotive CV Axle Shaft IZ-8010 is designed specifically for the Isuzu VehiCROSS, providing reliable driveline performance. This new CV axle shaft is engineered to meet the exact specifications required for smooth power transfer and durability.

• Compatible with Isuzu VehiCROSS models
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Male inboard and outboard joint types with 17 splines each
• Axle bolt hex size 13mm, bolt length 45.3mm, thread size M8*1.25
• Overall compressed length of 614mm (24.17 inches)
• Single bolt hole and single outboard shaft bolt for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering precise fit and reliable driveline components for various vehicle applications. The IZ-8010 model is part of this line, offering a new axle shaft designed to maintain the integrity of the vehicle’s powertrain. This product line emphasizes quality materials such as neoprene boots and exact spline counts to ensure compatibility and long service life.

Technical Description and Specifications

This CV axle shaft features male-type inboard and outboard joints, each with 17 splines, ensuring a secure connection to the vehicle’s drivetrain. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The axle bolt specifications include a 13mm hex size, 45.3mm length, and M8*1.25 thread size, designed for proper torque and fit. The overall compressed length of 614mm (24.17 inches) matches the Isuzu VehiCROSS requirements for optimal driveline geometry.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Isuzu VehiCROSS
• Eliminates vibrations caused by joint wear or spline damage
• Resolves clicking noises during turns due to failing CV joints
• Addresses grease leakage from torn or degraded boots
• Restores proper axle length and fitment for driveline stability

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft IZ-8010, ensure the axle bolt torque specifications match the vehicle manufacturer’s recommendations. Verify the spline alignment on both inboard and outboard joints before securing the axle. Since the axle nut is not included, use the original or a compatible replacement nut. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft IZ-8010 is a new component manufactured to meet OEM standards for the Isuzu VehiCROSS. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in driveline applications.
