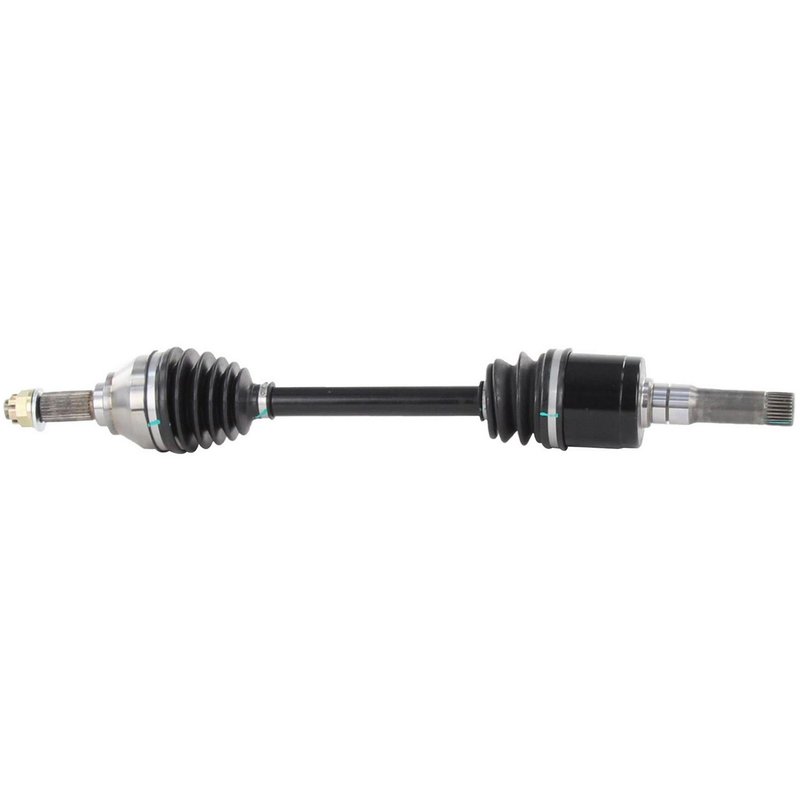

TrakMotive JDR-7004 CV Axle Assembly - Rear Left or Rear Right

ATV CV Axle Assembly for Driveline Repair

TrakMotive JDR-7004 is a new ATV CV axle assembly built for driveline service where a direct replacement axle is needed. It features a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for a straightforward replacement on the specified application.

TrakMotive’s ATV CV Axle Assembly line focuses on replacement driveline components for off-road use, with OE-style construction details and application-specific fitment. JDR-7004 is a direct-fit axle assembly for buyers searching for a TrakMotive ATV CV axle assembly, JDR-7004 replacement, or ATV driveline axle assembly by part number.

Key Features

• Part number: JDR-7004
• New CV axle assembly
• Neoprene boot material
• Male inboard shaft connection style
• Conventional outboard shaft connection style
• 28 inboard splines and 27 outboard splines
• Overall compressed length: 27.01 in. (686 mm)
• Axle nut included with M20 x 1.5 thread, 30 mm hex size, and cotter pin locking type
• No ABS tone ring included
• Hex axle nut head type

Product Details

TrakMotive JDR-7004 is engineered as a replacement ATV CV axle assembly for driveline restoration where the original axle has worn joints, damaged boots, or spline wear. The assembly measures 27.01 inches compressed length and uses a male inboard connection with a conventional outboard joint, making it a practical choice for service work that requires matching the original axle configuration. This part cross-references Monroe Shocks & Struts (e.g., 8130091, AX7304) for the same application.

Search terms such as ATV CV axle assembly, TrakMotive JDR-7004, and replacement driveline axle assembly are commonly used by buyers looking for a direct-fit axle for ATV driveline repair. Compatible With the listed application, this axle is a fitment-specific replacement rather than a universal part.

What It Helps Fix

• Clicking or popping from worn CV joints
• Vibration caused by a damaged or bent axle shaft
• Torn or leaking CV boots
• Spline wear at the axle connection points
• Loss of driveline performance from a failed axle assembly

Installation Notes and Tips

Verify spline count, axle length, and nut thread size before installation. The included axle nut uses M20 x 1.5 threads with a 30 mm hex size and cotter pin locking style. Confirm whether the vehicle uses ABS before ordering, since this axle does not include an ABS tone ring.

For search relevance, this part is commonly referenced for ATV axle replacement, CV axle assembly service, and TrakMotive JDR-7004 driveline repair. Always match the original axle dimensions and connection style to the vehicle application before installation.

Quality Assurance

TrakMotive states this axle assembly is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
