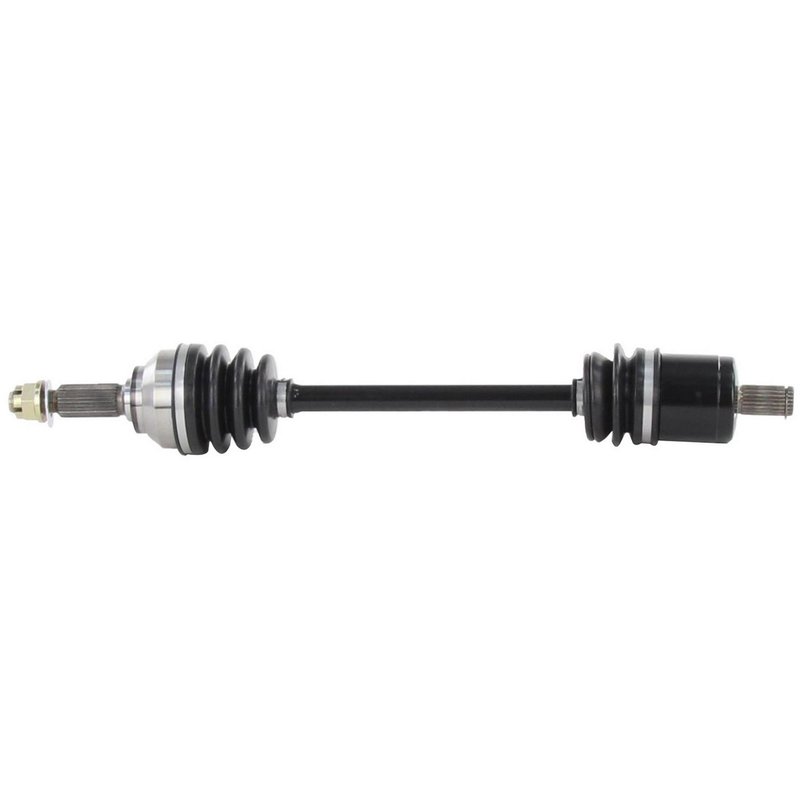

TrakMotive JDR-7006 CV Axle Assembly - Front Right

Reliable ATV CV Axle Assembly for Precise Driveline Performance

The TrakMotive ATV CV Axle Assembly JDR-7006 is engineered to provide dependable driveline functionality for various ATV models. Designed with durable neoprene boots and a robust cotter pin locking axle nut, this CV axle assembly ensures consistent power transfer and long-lasting operation.

Key Features of the TrakMotive JDR-7006 CV Axle Assembly

• New, high-quality CV axle assembly designed for ATV driveline systems
• Neoprene boot material for enhanced durability and protection against contaminants
• Hex head axle nut with a 30 mm hex size and 22 mm height for secure fastening
• Cotter pin locking type axle nut with M20*1.5 thread size for reliable retention
• Inboard joint features a male connection style with 22 splines
• Outboard joint uses a conventional type with 27 splines for smooth operation
• Overall compressed length of 23.39 inches (594 mm) suitable for precise fitment

Detailed Overview of the ATV CV Axle Assembly

The TrakMotive ATV CV Axle Assembly JDR-7006 is part of the ATV CV Axle Assembly product line, which focuses on delivering durable and precise constant velocity components for all-terrain vehicles. This assembly includes a neoprene boot that resists wear and environmental damage, ensuring the internal joints remain protected. The axle nut is a hex head type measuring 30 mm across flats and 22 mm in height, secured with a cotter pin locking mechanism to prevent loosening during operation. The inboard joint features a male shaft connection with 22 splines, while the outboard joint is conventional with 27 splines, providing compatibility with a range of ATV driveline configurations. With an overall compressed length of 23.39 inches, this CV axle assembly is designed to meet exacting fitment requirements.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle assemblies on compatible ATV models
• Resolving issues related to axle joint noise or vibration during operation
• Addressing driveline play or looseness caused by spline wear
• Preventing contamination and premature joint failure with durable neoprene boots
• Ensuring secure axle nut retention with cotter pin locking design

Installation Notes and Tips

When installing the TrakMotive JDR-7006 CV Axle Assembly, verify compatibility with your specific ATV make and model. Ensure the axle nut is torqued to manufacturer specifications and properly secured using the cotter pin locking mechanism. Inspect the neoprene boot for any damage before installation to maintain joint protection. Proper alignment of the inboard and outboard splines is critical for smooth driveline operation.

Quality Assurance and Warranty Information

This CV axle assembly is a new, unused component manufactured to meet industry standards for ATV driveline parts. TrakMotive maintains quality control throughout production to ensure reliable performance. Please consult the manufacturer or distributor for specific warranty details related to the JDR-7006 part number.
