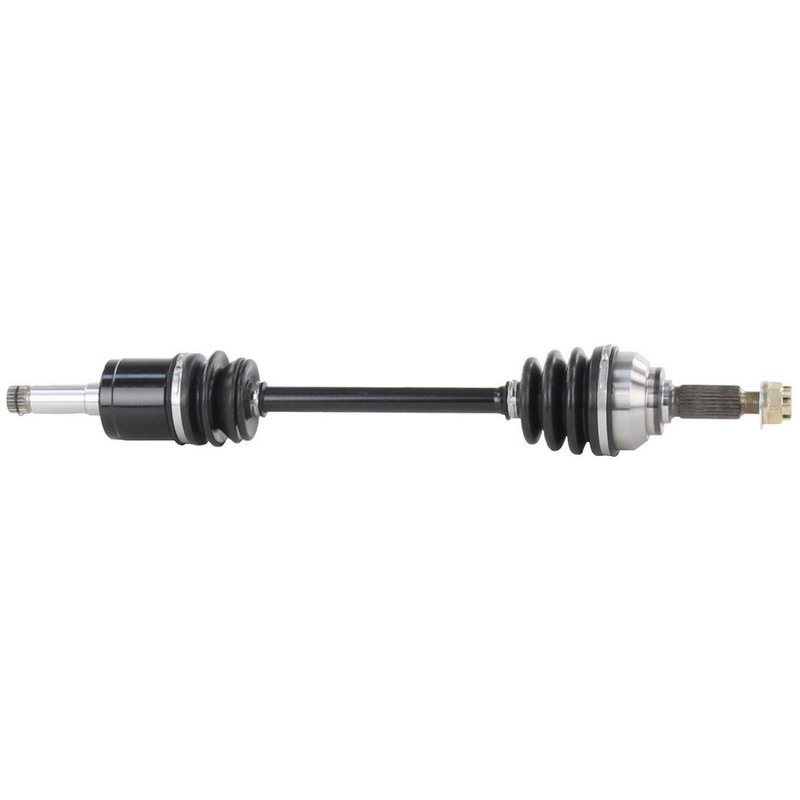

TrakMotive JDR-7007 CV Axle Assembly - Front Right
| Brand | TrakMotive JDR-7007 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.02 |
| Overall Compressed Length (mm) | 610 |
| Fits | — |
New assembly. Fresh CV axle assembly for dependable driveline replacement.
Neoprene boot. Flexible material helps protect the joint from wear and contamination.
Included axle nut. Comes with a hex nut and cotter pin locking style.
Cross-references TrakMotive JDR-7007, 8130094 and AX7307 for the same application. See all 3.
TrakMotive ATV CV Axle Assembly JDR-7007
The TrakMotive JDR-7007 ATV CV axle assembly is a new driveline replacement built for precise fit and dependable operation in compatible ATV applications. It features a neoprene boot, a male inboard shaft connection, and a conventional outboard joint design for a direct replacement approach.
TrakMotive’s ATV CV Axle Assembly line focuses on application-specific replacement axles for off-road driveline service. Part number JDR-7007 is built to match the required spline counts, compressed length, and axle nut specifications for the listed application.
Key Features
- New ATV CV axle assembly for driveline and axle service
- Neoprene boot material for flexible joint protection
- Male inboard joint and male inboard shaft connection style
- Conventional outboard joint and outboard shaft connection style
- 24 inboard splines and 27 outboard splines
- Overall compressed length: 24.02 in. (610 mm)
- Axle nut included with hex head, cotter pin locking type, and M20 x 1.5 thread
- No ABS tone ring included
Detailed Description
TrakMotive JDR-7007 is a replacement CV axle assembly engineered for ATV driveline repair where the original axle has worn joints, damaged boots, or spline wear. The assembly measures 24.02 inches compressed and uses a 24-spline inboard connection with a 27-spline outboard connection, along with a male inboard shaft connection and conventional outboard design. The included axle nut uses a 30 mm hex size and M20 x 1.5 thread, with cotter pin locking. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Compatible With ATV applications that use the JDR-7007 configuration, including the listed fitment for Honda ATV driveline service. Search terms such as Honda ATV CV axle assembly, replacement ATV axle shaft, and JDR-7007 CV axle help identify the correct part for matching spline count and length requirements.
What It Helps Fix
- Clicking or popping from worn CV joints
- Vibration caused by axle imbalance or joint wear
- Torn or deteriorated axle boots
- Loss of driveline engagement from damaged splines
- Axle noise during acceleration or turning
Installation Notes and Tips
Verify spline count, compressed length, axle nut thread size, and joint style before installation. Confirm the vehicle uses a non-ABS axle configuration when required, since this axle does not include an ABS tone ring. Use the correct torque procedure for the axle nut and inspect surrounding seals, bearings, and hub components during service.
Quality Assurance
TrakMotive identifies this axle as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The JDR-7007 also carries a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| No rows match your filter. | ||||
