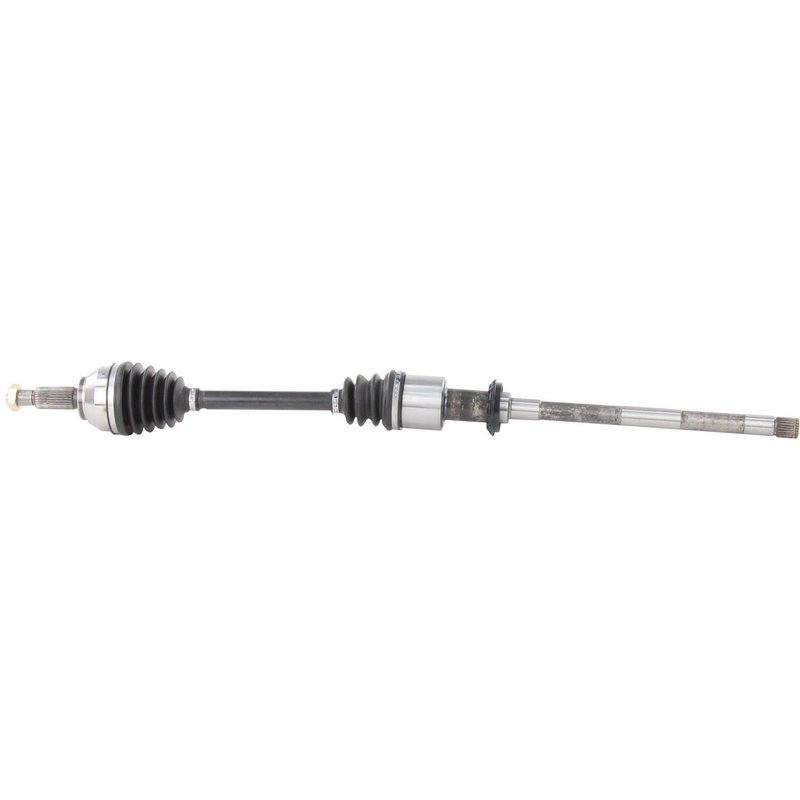

TrakMotive JG-8001 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft JG-8001 for Jaguar X-Type

The TrakMotive CV Axle Shaft JG-8001 is designed specifically for the Jaguar X-Type, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Jaguar X-Type models
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 38.11 inches (968 mm)
• Inboard joint features 23 splines with male connection style
• Outboard joint is conventional with 27 splines
• Axle nut thread size M22 x 1.5, 1 1/4 inch hex size
• New, not remanufactured part for assured quality

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This line emphasizes compatibility and durability, featuring components like neoprene boots and self-locking axle nuts to maintain joint integrity and secure installation. The JG-8001 model exemplifies these qualities tailored for the Jaguar X-Type.

Technical Description and Specifications

The JG-8001 CV axle shaft from TrakMotive is a new replacement part designed to meet the exact specifications of the Jaguar X-Type. It features a neoprene boot that offers resistance to wear and environmental factors, protecting the CV joints. The inboard joint is a male type with 23 splines, while the outboard joint is conventional with 27 splines, ensuring proper torque transfer and fitment. The included axle nut is self-locking with a hex head measuring 1 1/4 inches (32 mm) across flats, 3/5 inch (15 mm) in height, and 1 1/2 inch (37 mm) in length, with an M22 x 1.5 thread size. The overall compressed length of the axle shaft is 38.11 inches (968 mm), matching factory dimensions for seamless installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Jaguar X-Type
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity
• Addresses axle shaft damage from road hazards or accidents

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft JG-8001 on a Jaguar X-Type, ensure the vehicle is securely lifted and supported. Remove the old axle shaft carefully, noting the orientation of the inboard and outboard joints. Use the included self-locking axle nut and torque it to manufacturer specifications to maintain secure fitment. Inspect the surrounding components such as wheel bearings and suspension parts during installation for any additional wear.

Quality Assurance and Warranty Information

This TrakMotive CV Axle Shaft is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. The neoprene boot and self-locking axle nut contribute to long-lasting performance. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
