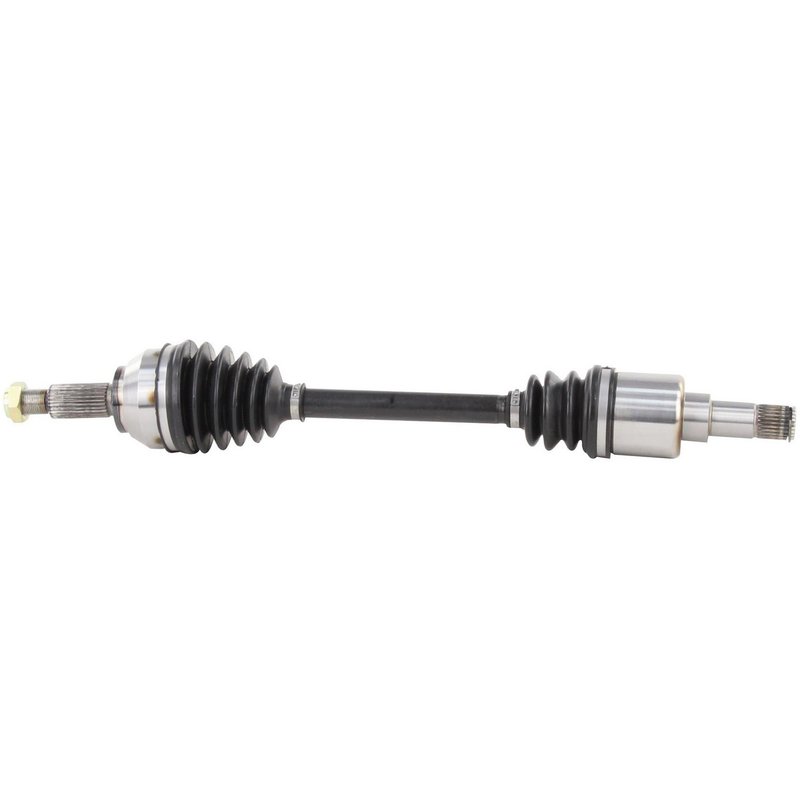

TrakMotive JG-8002 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft JG-8002 for Jaguar X-Type

The TrakMotive CV Axle Shaft JG-8002 is designed specifically for the Jaguar X-Type, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Jaguar X-Type models
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 24.8 inches (630 mm)
• Inboard joint features 26 splines with male connection style
• Outboard joint is conventional with 27 splines
• Axle nut thread size M22 x 1.5 with 1 1/4 inch hex size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This CV axle shaft model JG-8002 is part of that line, offering a new, high-quality replacement designed to meet factory specifications for the Jaguar X-Type. The product line emphasizes compatibility, durability, and ease of installation with features like neoprene boots and self-locking axle nuts.

Technical Description and Specifications

This CV axle shaft features a neoprene boot that provides resistance to wear and environmental damage, helping to maintain joint integrity. The inboard joint is a male type with 26 splines, while the outboard joint is conventional with 27 splines, ensuring proper torque transfer and smooth operation. The included axle nut is self-locking with a hex head measuring 1 1/4 inches across flats and a height of 15 mm (3/5 inch), designed to secure the axle firmly in place. The overall compressed length of 24.8 inches (630 mm) matches OEM dimensions for the Jaguar X-Type, ensuring a precise fit.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Jaguar X-Type
• Resolves issues with axle vibration or clicking noises during turns
• Addresses grease leakage from torn or damaged CV boots
• Fixes axle shaft failure due to joint wear or spline damage
• Improves driveline stability and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft JG-8002, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle housing and surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent contamination. Use appropriate tools for the 1 1/4 inch hex axle nut to avoid rounding or damage.

Quality Assurance and Warranty

This CV axle shaft is a new replacement part manufactured to meet or exceed OEM standards for the Jaguar X-Type. It includes a self-locking axle nut and durable neoprene boot for long service life. While specific warranty details are not provided, TrakMotive products typically undergo quality control testing to ensure reliability and fitment accuracy.
